992004 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000426 & Above) TRACTION DRIVE LINKAGE Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

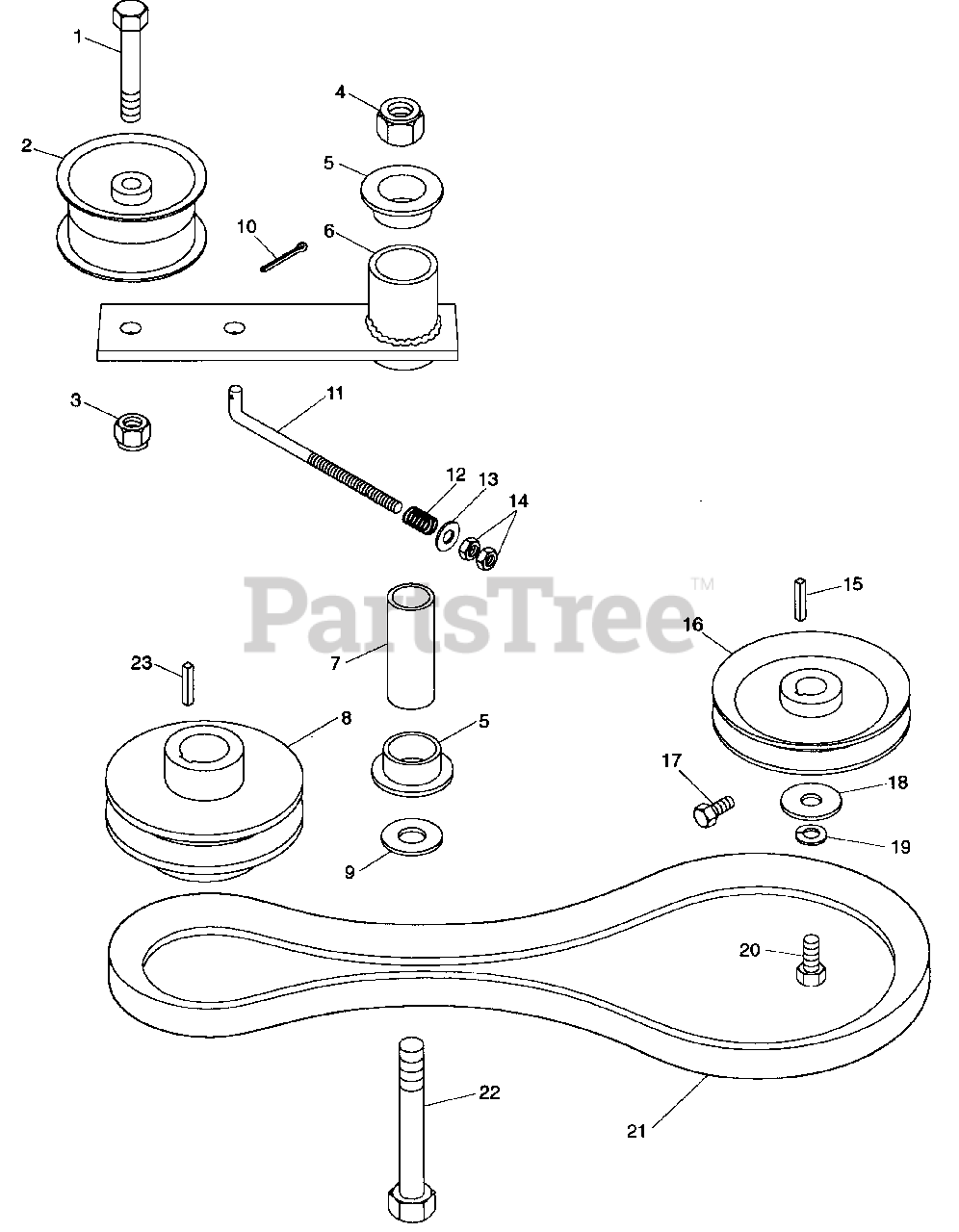

TRACTION DRIVE LINKAGE Parts Diagram

  • Title

1

Gravely 180128

BLT-HEX .38-16 X 1.75 PL GR 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 052062

IDLER - PLY
(Superseded to 07320700)

$34.99

$

In Stock, only 1 left!

0

3

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 010174

BSHG-FLG .762 X 1.0 X .580 X 1.48 NY
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 051134

WLDMT, GROUND DRIVE IDLER
(Superseded to 08844251)

$58.99

$

Usually ships in 4-12 days

0

7

Gravely 041992

BUSH., 5.560 X .745 X 2.04 ST
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

8

Gravely 073217

PLY-V 4.00 X 1.125 W/KEY
(Superseded to 07321700)

$107.99

$

Usually ships in 4-12 days

0

9

Gravely 120396

WSHR-FL-STL .531 X 1.062 X .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 121222

PIN-COTR .09 X .75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

11

Gravely 092067

ROD, IDLER 11.0 LG
(Superseded to 09206700)

$

$

Not available

12

Gravely 011779

SG-COMP .188 X 1.66 X 2.0
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 064043

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120369

NUT-HEX .375 X 24 ZC
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 050995

KEY-STR 5MM X 25MM X 5MM
(Superseded to 06607500)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 051138

SHEAVE, HYD PUMP
(Superseded to 07318900)

$51.99

$

In Stock, only 2 left!

0

17

Gravely 180016

BLT-HEX .25 X 20 X .50 PL GR 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 012694

WSHR-FL-STL .281 X 1.250 X .062 PL
(Superseded to 06403700)

$

$

Not available

19

Gravely 120380

WSHR-LOCK .250 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 050996

BLT-HEX M6 X 1.0 X 12 MM LG
(Superseded to 05969800)

$1.99

$

In Stock, Qty 14

0

21

Gravely 072264

V-BELT A-RMS 29.63 X 33/64
(Superseded to 07226400)

$52.99

$

In Stock, Qty 10

0

22

Gravely 180190

BLT-HEX .50 - 13 X 3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

23

Gravely 066022

KEY-SQ .25 X 1.0 X .25 SAE 8630
(Superseded to 06602200)

$3.99

$

In Stock, only 2 left!

0
