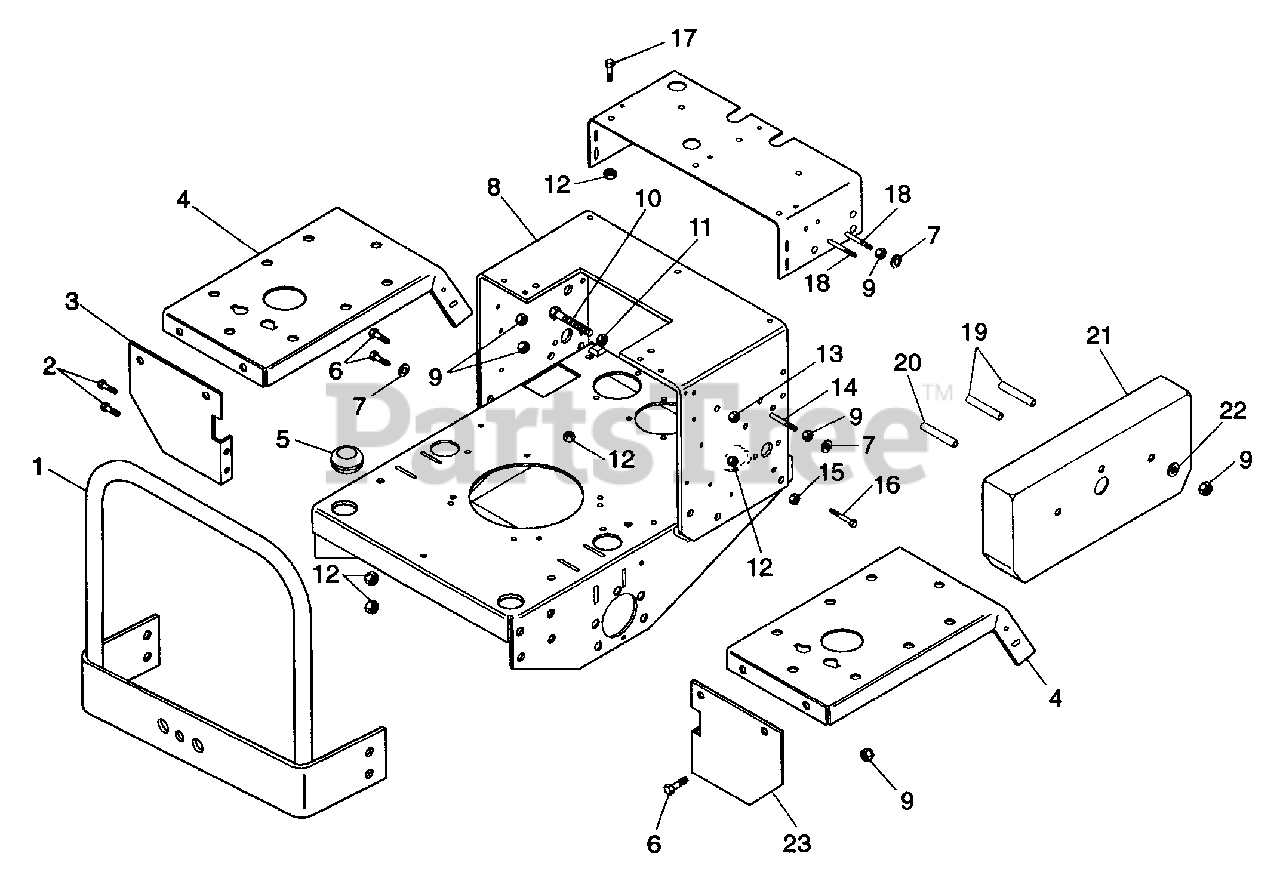

992004 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000426 & Above) FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

FRAME Parts Diagram

  • Title
1

Gravely 092037

WELDMT, REAR GUARD
(Superseded to 09203751)

$

$

Not available

2

Gravely 180124

BLT-HEX .38-16 X 1.25 PL GR 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 092025

SPRT, FENDER L.H.
(Superseded to 09202553)

$

$

Not available

4

Gravely 092023

FENDER
(Superseded to 09202353)

$

$

Not available

5

Gravely 075366

GROMMET
(Superseded to 07536600)

$

$

Not available

6

Gravely 059135

BLT-HEX .31-18 X .75 PL GR 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 064123

WSHR-FL-STL .344 X .688 X .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 092002

WLDMT, FRAME
(Superseded to 09200253)

$387.99

$

Usually ships in 4-12 days

0

9

Gravely 065062

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 059343

BLT-HEX .25-20 X 3.00
(Superseded to 05966300)

$

$

Not available

11

Gravely 065032

NUT-HEX .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

12

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 419454

NUT-LK-NYL .250-20 W/INSR
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

14

059101

BLT-HEX .312-18 X 3.75

$

$

Not available

15

Gravely 120377

NUT-HEX .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 180138

BLT-HEX .38-16 X 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 059145

BLT-HEX .38-16 X 1.00 GR 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

18

059282

BLT-HEX .312-18 X 4.00

$

$

Not available

19

Gravely 091083

SPACER, .328 X .462 X 2.75
(Superseded to 09108300)

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 091084

SPACER, .328 X .462 X 2.50 LG
(Superseded to 09108400)

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 091082

GUARD LINKAGE
(Superseded to 09108200)

$

$

Not available

22

Gravely 446354

WSHR-FL-STL .313 X .875 X .065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 092024

SPRT, FENDER R.H.
(Superseded to 09202453)

$

$

Not available
