992003 (PM 200) - Gravely Pro-Master 60" Zero-Turn Mower, 20hp Kohler (SN: 000701 & Above) FUEL & EXHAUST SYSTEM Parts Diagram

Pro-Master 60" Zero-Turn Mower, 20hp Kohler

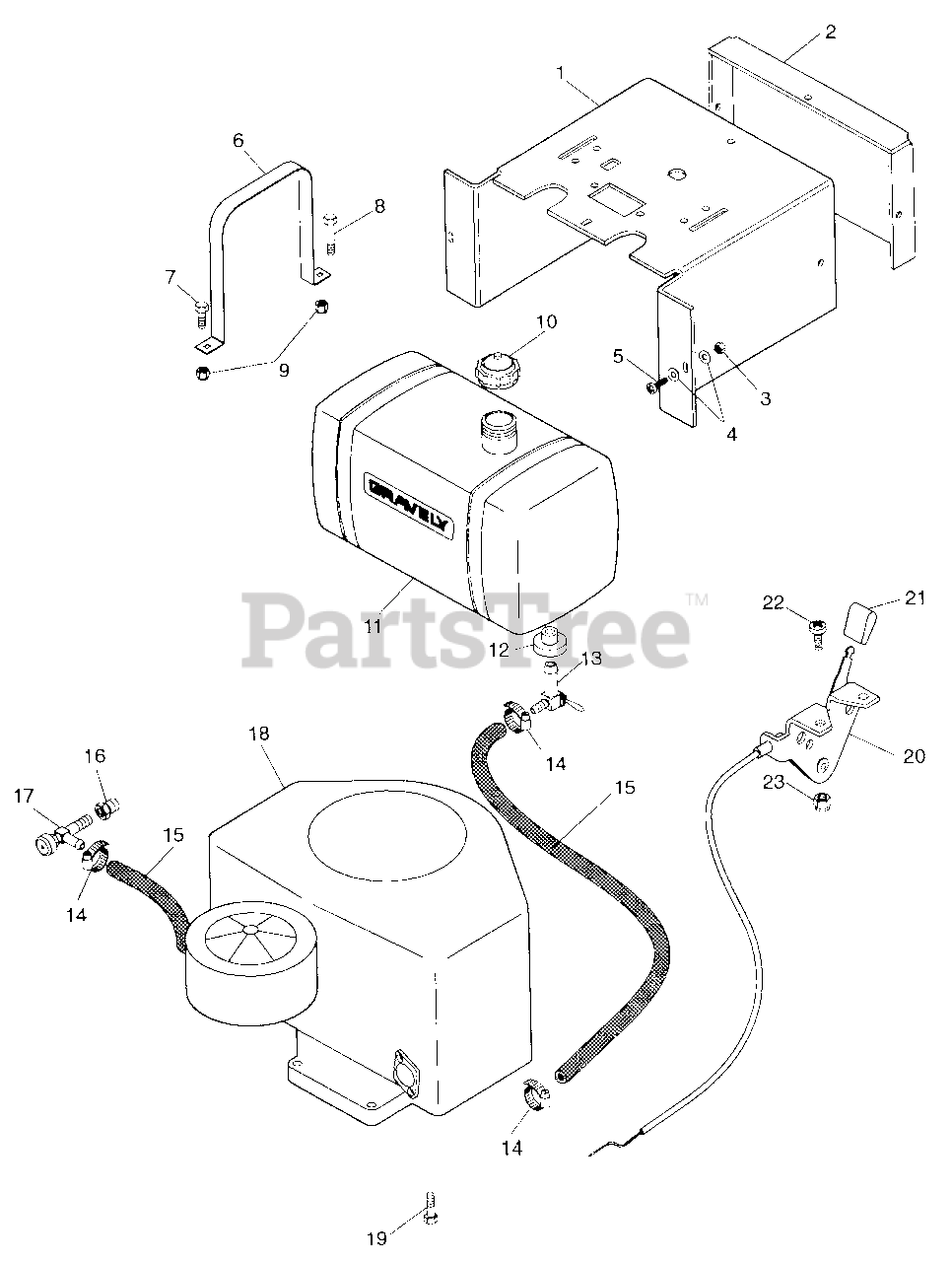

FUEL & EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 091022

PNL, SILKSCREEN

$

$

Not available

2

Gravely 091067

CVR, INSTRUMENT PANEL
(Superseded to 09106700)

$

$

Not available

3

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 050365

WSHR-FL-STL .281 X .62 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 160540

SCR-MCH ,25-20 PAN HD

$

$

Not available

6

Gravely 092207

STRP, FUEL TANK
(Superseded to 09220751)

$

$

Not available

7

Gravely 180018

BLT-HEX .25-20 X .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

8

Gravely 180022

BLT-HEX .25-20 X 1.00 PL GR 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

9

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

11

Gravely 092206

TANK, FUEL PM 200
(Superseded to 59200400)

$

$

Not available

12

Gravely 050246

BUSHING
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 049281

VALVE, BALL SHUT-OFF

$

$

Not available

14

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 021134

GAS LINE-BULT
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 035329

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

18

082391

ENGINE, 20 HP KOHLER CV20S

$

$

Not available

19

Gravely 074030

SCR-TAP .375-16 X 1.0 HWH PL TR
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 053237

ASM, THROTTLE CONTROL
(Superseded to 06923300)

$

$

Not available

21

Gravely 044589

KNOB
(Superseded to 07501900)

$

$

Not available

22

Gravely 160046

SCR-MCH 10-32 X .50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 065028

NUT-LK 10-32 NY PL
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0
