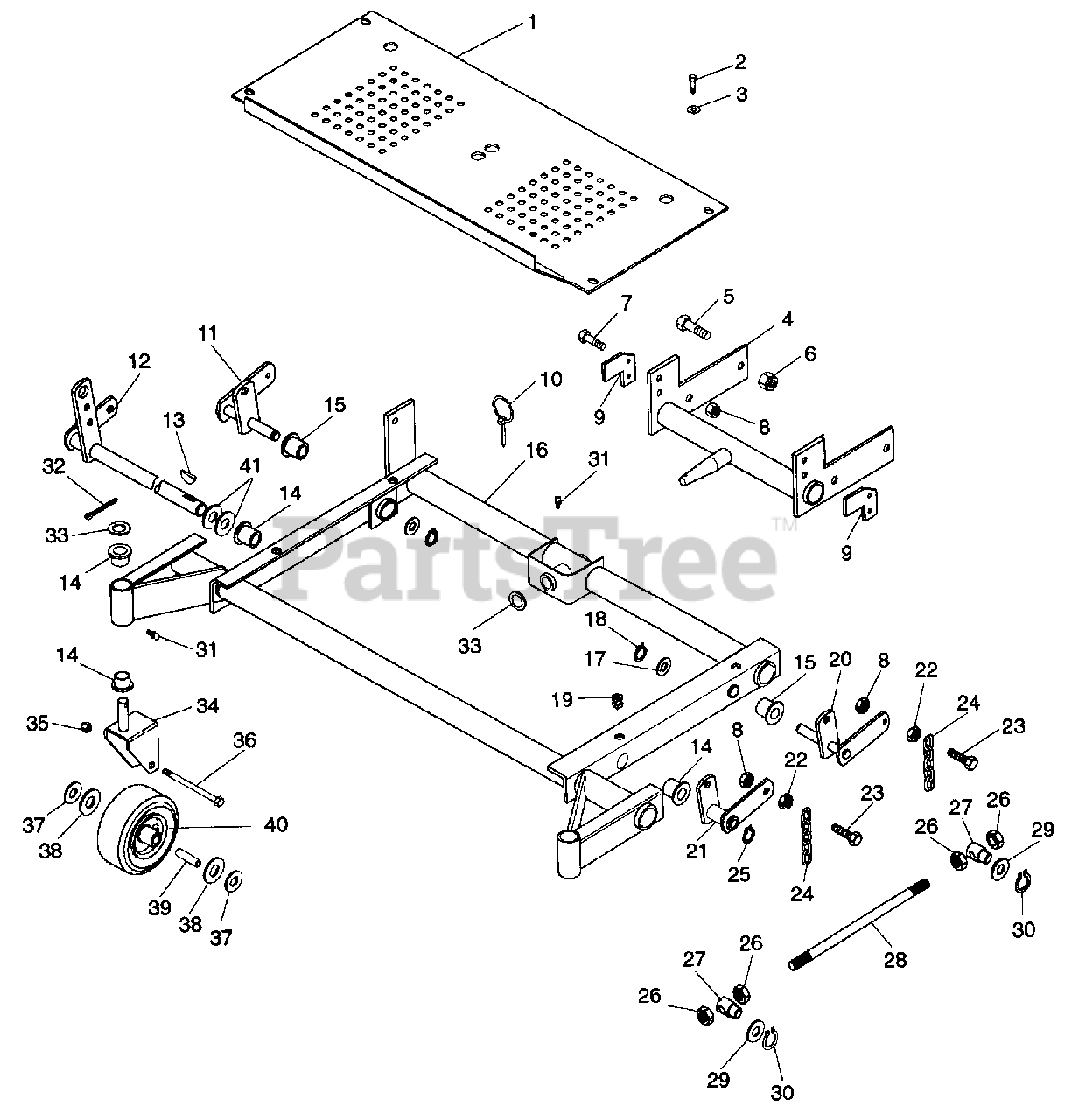

992003 (PM 200) - Gravely Pro-Master 60" Zero-Turn Mower, 20hp Kohler (SN: 000701 & Above) FRONT FRAME Parts Diagram

Pro-Master 60" Zero-Turn Mower, 20hp Kohler

FRONT FRAME Parts Diagram

  • Title

1

Gravely 092036

FOOTBOARD PM200
(Superseded to 09203653)

$

$

Not available

2

Gravely 160541

SCR-MCH .25-20 PAN HP
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

3

Gravely 120392

WSHR-FL-STL .281 X .625 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 092004

WLDMT, MWR FRAME MTG
(Superseded to 09200453)

$

$

Not available

5

Gravely 271547

BLT-HEX .625-11 X 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 418692

NUT-LK-NYL .625-11 PL
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 180123

BLT-HEX .38-16 X 1.125

$

$

Not available

8

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 092208

PLATE, PIVOT STOP
(Superseded to 09220853)

$

$

Not available

10

Gravely 011902

PIN-KLIK .25 X 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

11

Gravely 092053

WLDMT. LIFT ARM SHAFT R.H.
(Superseded to 09205300)

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 092040

WLDMT, MWR LIFT SHAFT(FRT)
(Superseded to 09204000)

Note: (FRT)

$

$

Not available

13

Gravely 124553

KEY-WDRF .25 X 1.0 HRD # 15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

14

Gravely 018355

BSHG-FLG 1.020 X 1.75 X .75 NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

15

Gravely 010174

BSHG-FLG .762 X 1.0 X .580 X 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 092021

WLDMT, FRONT FRAME PM200
(Superseded to 09226853)

$

$

Not available

17

Gravely 011223

BRG-N-THRUST .752 X 1.24 X .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 026300

RG-RTNG-EXT .689 X .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

19

Gravely 065274

CLIP, U-TYPE EATON #C17453-1420
(Superseded to 06527400)

$

$

Not available

20

Gravely 092054

WLDMT, LIFT ARM SHAFT(L.H.)
(Superseded to 09205400)

Note: (L.H.)

$

$

Not available

21

Gravely 092042

WLDMT LIFT ARM(FRT)
(Superseded to 09204200)

Note: (FRT)

$

$

Not available

22

Gravely 120377

NUT-HEX .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 180126

BLT-HEX .38-16 X 1.50 PL GR 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

24

Gravely 092153

CHAIN, LINK
(Superseded to 09215300)

$

$

Not available

25

Gravely 050203

RG-RTNG-EXT 1.00 X .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

26

Gravely 120378

NUT, 50-13 PL
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 092127

PIVOT, MWR LIFT
(Superseded to 09212700)

$

$

Not available

28

Gravely 092102

TIE ROD, LIFT LEVER
(Superseded to 09210200)

$

$

Not available

29

Gravely 036889

WSHR-FL-STL .630 X 1.005 X .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 057092

RG-RTNG-EXT .625 X .050
(Superseded to 05709200)

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 411027

FTG, LUBE .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

32

Gravely 067021

PIN-COTR .12 X 1.25 PL
(Superseded to 06714300)

$1.99

$

Usually ships in 4-12 days

0

33

Gravely 019340

BRG-R-THRST 1.002 X 1.552 X .030
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

34

Gravely 092056

WLDMT, CASTER FORK
(Superseded to 09206253)

$153.99

$

Usually ships in 4-12 days

0

35

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

36

Gravely 059436

BLT-HEX .500-13 X 8.00
(Superseded to 05968400)

$7.99

$

In Stock, only 1 left!

0

37

Gravely 415543

WSHR-FL-STL .531 X 1.25 X .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

38

Gravely 423315

WSHR-FL-STL .813 X 1.370 X 1.00
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 092061

AXLE, CASTER
(Superseded to 09206100)

$

$

Not available

40

Gravely 071352

T/WHL ASSY 13 X 5-6 TURF TRAC RS
(Superseded to 07145700)

$

$

Not available

41

Gravely 064285

WSHR-FL-STL .063 X 2.000 X .134
(Superseded to 06428500)

$2.99

$

Usually ships in 4-12 days

0

NS

Gravely 071390

TIRE 13 X 5-6 TURF TRAC RS
(Superseded to 07139000)

$

$

Not available
