992002 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler (SN: 000101 & Above) FRAME Parts Diagram

Pro-Vac Vacuum, 18hp Kohler

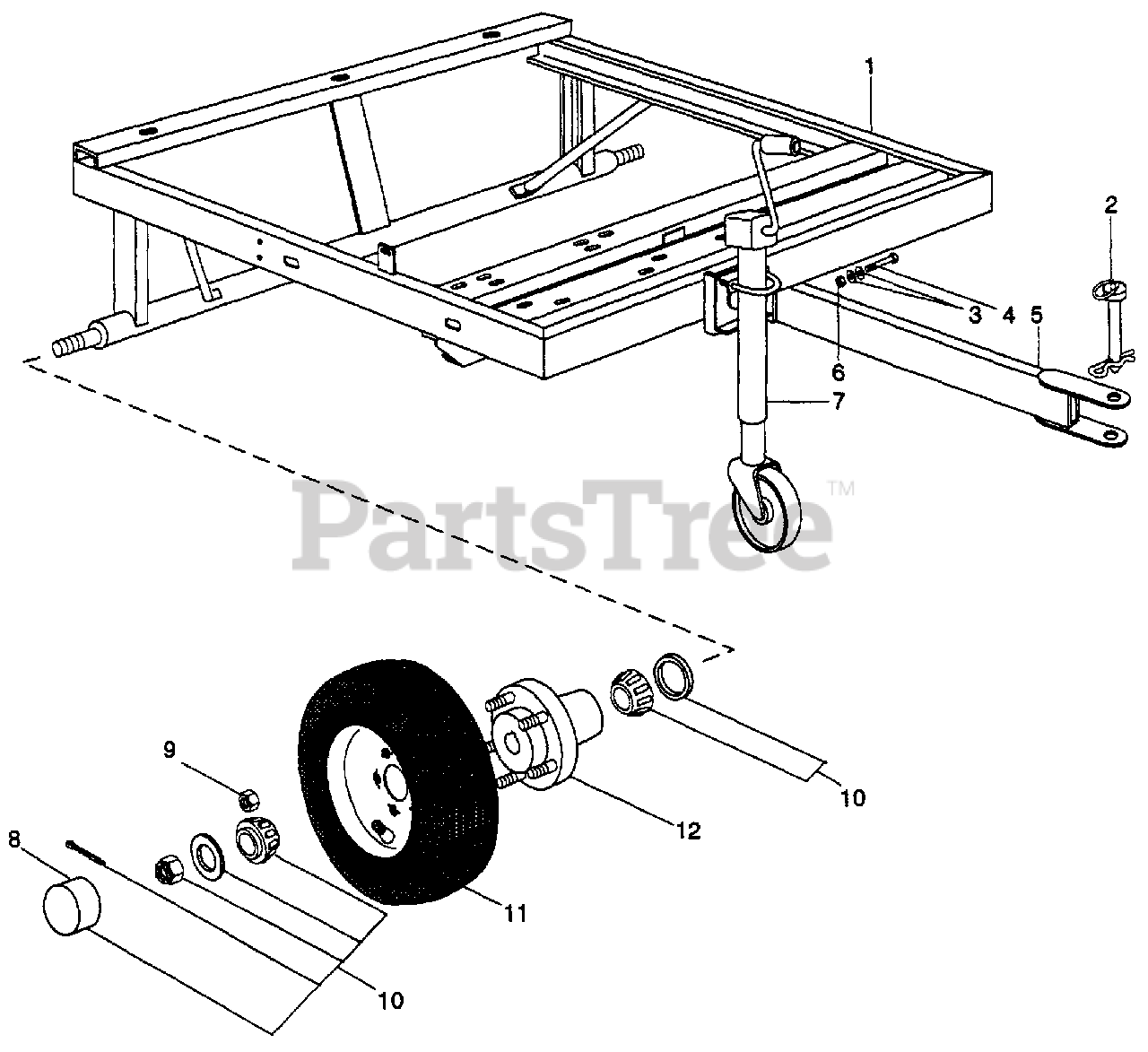

FRAME Parts Diagram

  • Title

1

Gravely 04200153

FRAME WELDMENT

$

$

Not available

1

Gravely 04200157

FRAME WELDMENT

$

$

Not available

2

Gravely 09200100

HITCH PIN 1 INCH
(Superseded to 02087300)

$

$

Not available

3

Gravely 06414200

WSHR-FL-STL .641 X 1.125 X .188

$

$

Not available

4

Gravely 05928800

BLT-HEX .62-11 X 3.00 PL GR 5
(Superseded to 05900922)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 04200251

TONGUE WELDMENT

$

$

Not available

6

Gravely 06518700

NUT-LK-TOP .62-11 PL

$3.99

$

In Stock, Qty 6

0

7

Gravely 04201300

JACK

$

$

Not available

8

Gravely 04207700

DUST CAP

$

$

Not available

9

Gravely 59200200

KIT, WHEEL NUT

$

$

Not available

10

Gravely 59200100

KIT, HUB COMPLETE 1050 VAC

$

$

Not available

11

Gravely 07136200

TIRE & WHEEL ASSEMBLY

$

$

Not available

12

Gravely 04201400

HUB ASSEMBLY

$

$

Not available
