991983 (ZT HD Stealth 60) - Gravely 60" Zero-Turn Mower, Kawasaki FR (SN: 000101 & Above) Heat Shield Parts Diagram

60" Zero-Turn Mower, Kawasaki FR

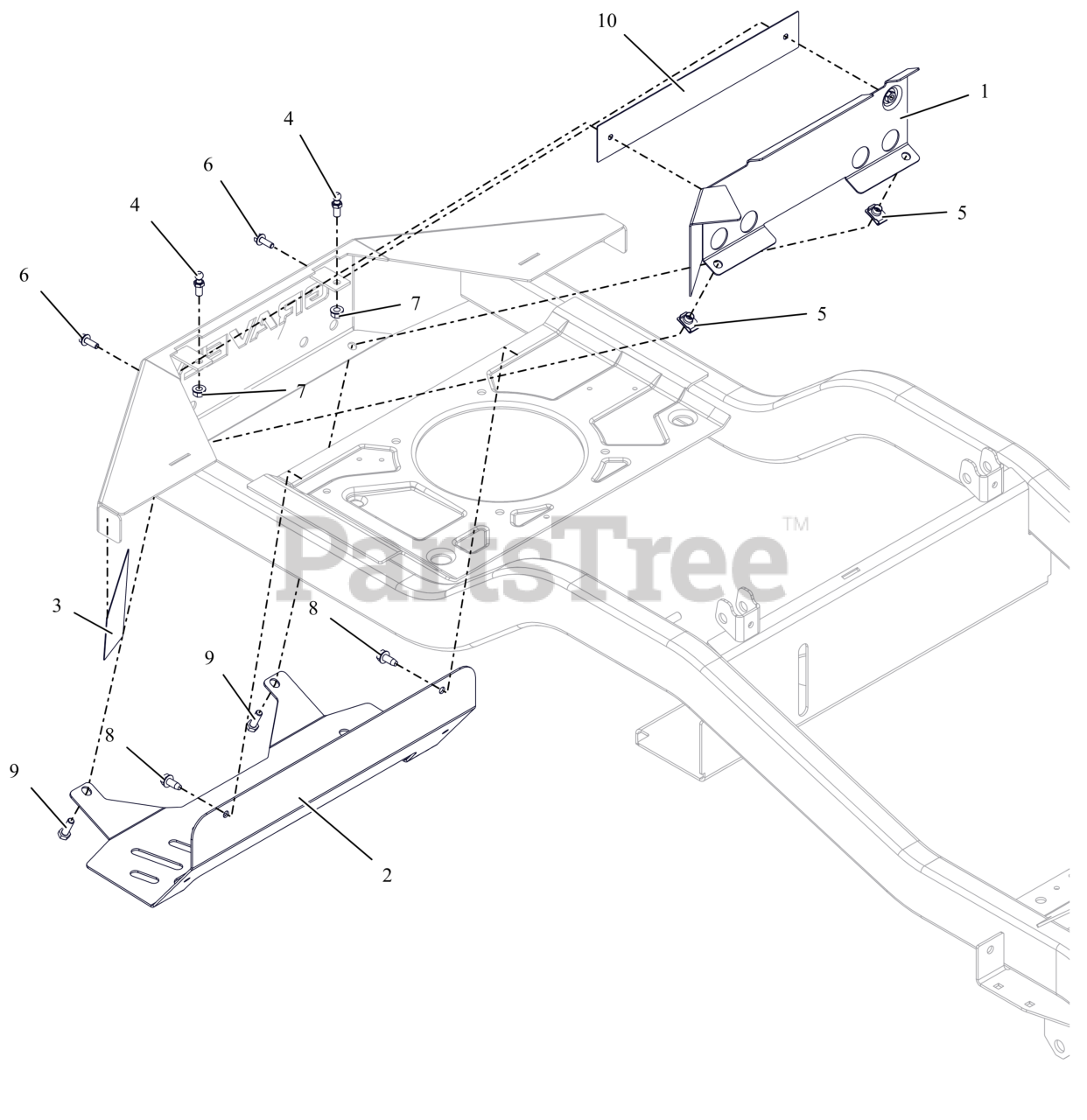

Heat Shield Parts Diagram

  • Title
1

Gravely 05116751

WMT, HEAT BAFFLE

$31.99

$

Usually ships in 4-12 days

0

2

Gravely 05082851

SHIELD, HEAT (HD)

$45.99

$

Usually ships in 4-12 days

0

3

Gravely 05116800

TAPE, HEAT DEFLECTOR

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

5

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

6

Gravely 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$

$

Not available

7

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

9

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09682753

PLATE- BACK BUMPER HD

$11.99

$

Usually ships in 4-12 days

0
