991983 (ZT HD Stealth 60) - Gravely 60" Zero-Turn Mower, Kawasaki FR (SN: 000101 & Above) Engine Guard and Fenders - 60" Parts Diagram

60" Zero-Turn Mower, Kawasaki FR

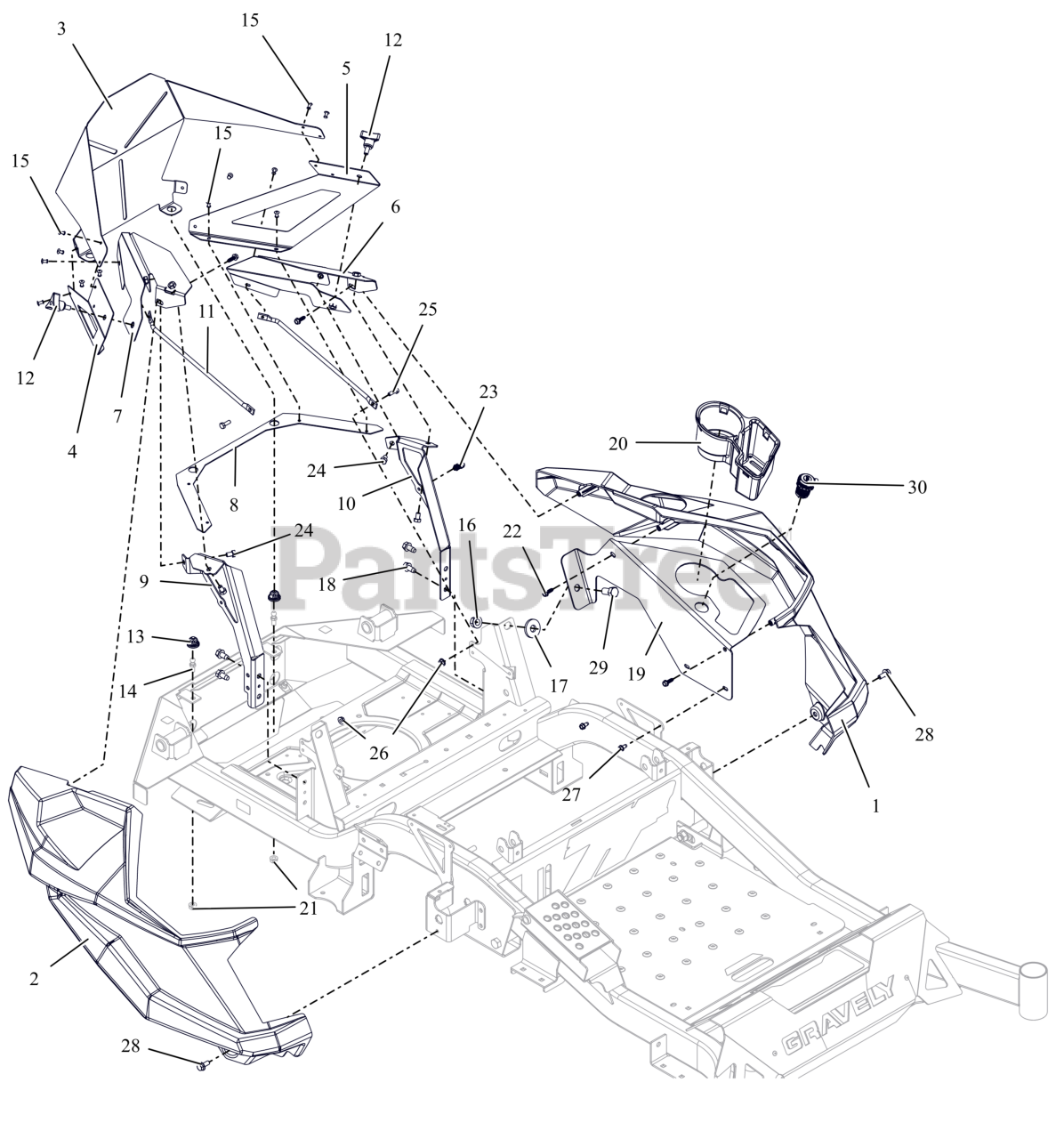

Engine Guard and Fenders - 60" Parts Diagram

  • Title
1

Gravely 09188100

FENDER, LH

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 09188200

FENDER, RH

$45.99

$

Usually ships in 4-12 days

0

3

Gravely 09188551

WRAP, REAR (BLACK)

$79.99

$

In Stock, only 1 left!

0

4

Gravely 09188751

WRAP- REAR - RH

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 09188651

WRAP- REAR - LH

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 09188842

PANEL- LH

$56.99

$

Usually ships in 4-12 days

0

7

Gravely 09188942

PANEL- RH

$56.99

$

Usually ships in 4-12 days

0

8

Gravely 09363242

STIFFNER- BACKWRAP

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 09188442

BRKT- RH FENDER MTG

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 09188342

BRKT, LH FENDER MTG (MATTE BLACK)

$39.99

$

Usually ships in 0 days

0

11

Gravely 09362700

ROD, STIFFENER

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

13

Gravely 07500407

GROMMET, 10MM BOLLHOFF

$5.99

$

In Stock, only 1 left!

0

14

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

15

Gravely 06800107

RIVET, #66 STEEL POP PD BLACK

$

$

Not available

16

Gravely 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06401225

WASHER- FLT .562X1.50X.187 ZCC

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09189142

PANEL, HD CUPHOLDER (MATTE BLACK)

$45.99

$

Usually ships in 4-12 days

0

20

Gravely 09190800

HOLDER, CUP

$11.99

$

In Stock, only 1 left!

0

21

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06100231

SCR, PLASTITE-HWH 0.25 X 0.75 ZC120

$1.49

$

In Stock, Qty 6

0

23

Gravely 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 2 left!

0

24

Gravely 05901904

BLT, HEX .31-18X.50 GR5 ZCC

$1.49

$

In Stock, Qty 13

0

25

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

27

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

28

Gravely 07001820

BLT, SERHFWH 0.312-18X0.75 GR5 ZCC

$

$

Not available

29

Gravely 05901715

BLT, HEX .50-13X1.00 G5 ZCC

$2.49

$

In Stock, Qty 7

0

30

Gravely 30145700

USB, DUAL PORT USB-C, 12V BLK

$45.99

$

Usually ships in 4-12 days

0
