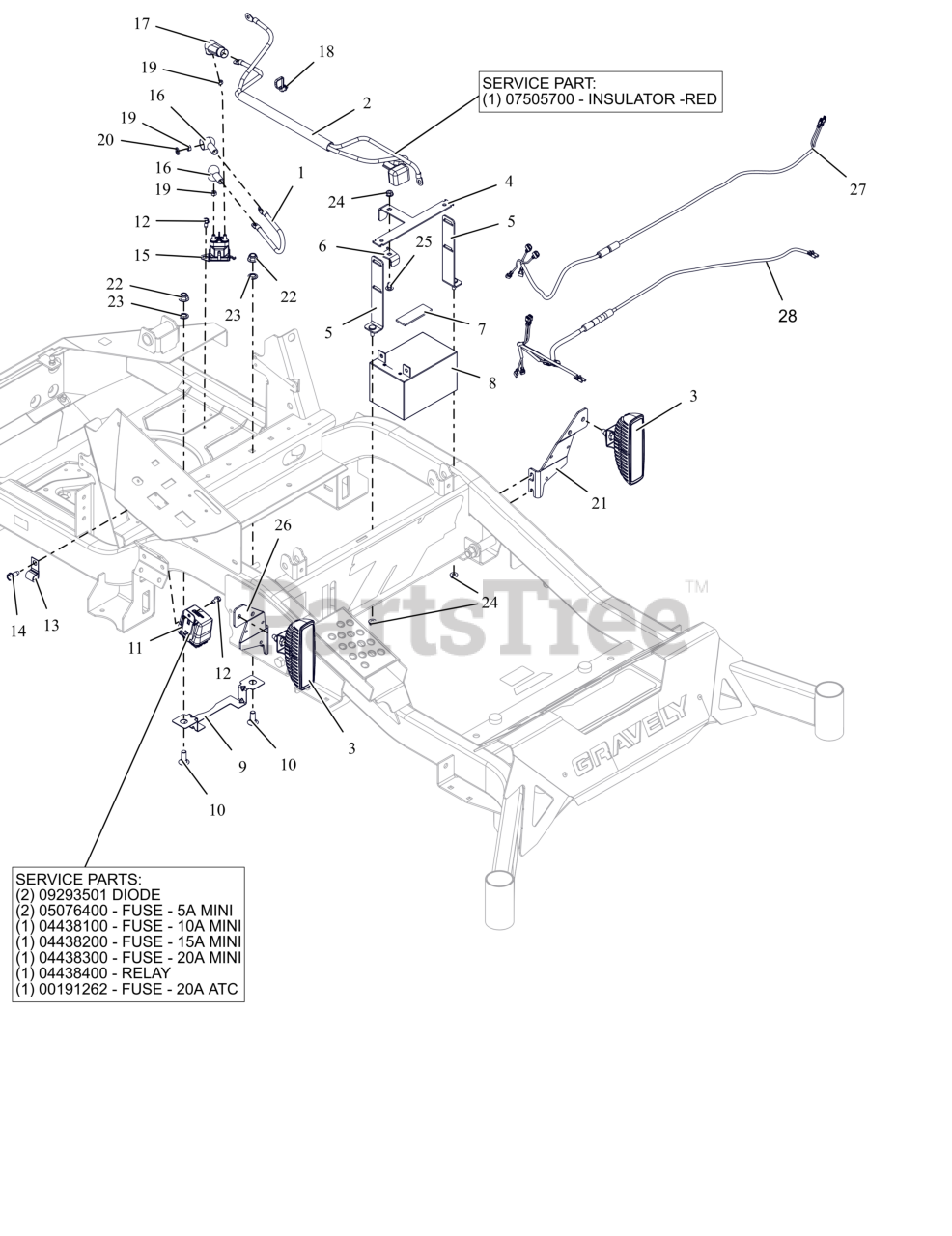

991983 (ZT HD Stealth 60) - Gravely 60" Zero-Turn Mower, Kawasaki FR (SN: 000101 & Above) Electrical Parts Diagram

60" Zero-Turn Mower, Kawasaki FR

Electrical Parts Diagram

  • Title

1

Gravely 04783300

CABLE, POS W/(2)1/4 RING 9.0LG

$5.99

$

Usually ships in 4-12 days

0

1

Gravely 07505700

INSULATOR

Note: Component Service Part

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 05074100

HARNESS, BATTERY HD

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 04821101

LIGHT, 6 LED- NO CONN.

$

$

Currently unavailable

4

Gravely 05031551

BRKT, BATTERY TIE DOWN
(Superseded to 05031500)

$12.99

$

In Stock, only 1 left!

0

5

Gravely 05107451

WMT,BATTERY MOUNT HOLD DOWN
(Superseded to 05107400)

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 09425700

BRKT, BATTERY HOLD

$

$

Not available

7

Gravely 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$

$

Not available

8

Gravely 09425500

BATTERY, 12V 12A -190CCA

$122.99

$

In Stock, only 2 left!

0

9

Gravely 05111451

GUARD, ELECTRICAL HARNESS

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

11

Gravely 05155300

HARNESS, WIRE

$196.99

$

Usually ships in 4-12 days

0

11

Gravely 09293501

DIODE, CONNECTOR SHELL

Note: Component Service Part

$11.99

$

In Stock, only 2 left!

0

11

Gravely 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$

$

Not available

11

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 04438200

FUSE,15 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$

$

Not available

11

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$19.99

$

In Stock, only 1 left!

0

11

Gravely 00191262

FUSE, 20 AMP BLADE S/O

Note: Component Service Part

$14.99

$

In Stock, only 1 left!

0

12

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

15

Gravely 05167200

SOLENOID, STARTER (SEALED)

$45.99

$

In Stock, Qty 14

0

16

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

17

Gravely 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

19

Gravely 06500925

NUT-STD M6-1.0 ZCC

$

$

Not available

20

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

21

Gravely 09370451

BRKT- LIGHT MTG - LH

$28.99

$

Usually ships in 4-12 days

0

22

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07009900

NUT-PUSH .38 DIA. PAL ZINC

$1.99

$

In Stock, only 1 left!

0

24

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

26

Gravely 09370351

BRKT- LIGHT MTG - RH

$28.99

$

Usually ships in 4-12 days

0

27

Gravely 30179200

HARNESS, USB PORT

$22.99

$

Usually ships in 4-12 days

0

28

Gravely 05109600

HARNESS, HEAD LIGHT (HD)

$44.99

$

Usually ships in 4-12 days

0
