991983 (ZT HD Stealth 60) - Gravely 60" Zero-Turn Mower, Kawasaki FR (SN: 000101 & Above) Deck, Belts, and Blades - 60" Parts Diagram

60" Zero-Turn Mower, Kawasaki FR

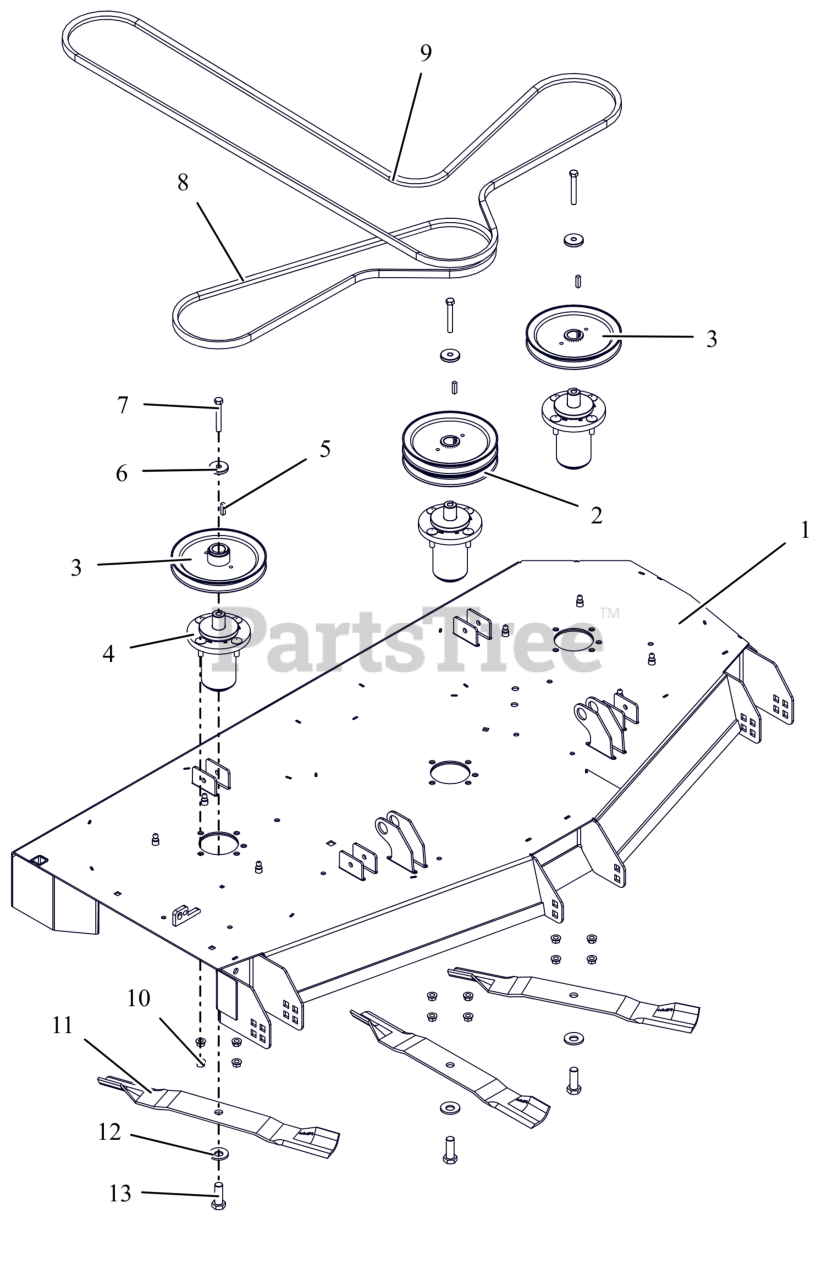

Deck, Belts, and Blades - 60" Parts Diagram

  • Title

1

Gravely 59120100

KIT,DECK-60 W/ DECALS -XF3 (BLACK)

$

$

Not available

1

Gravely 59121100

KIT,DECK-60" W/DECALS -XF3 BLK

$905.99

$

Usually ships in 0 days

0

2

Gravely 07346600

PULLEY, DOUBLE-1"X7.50"&7.50"

$91.99

$

In Stock, only 1 left!

0

3

Gravely 07345900

PULLEY, V-7.50 OD X 1" ID

$70.99

$

In Stock, only 1 left!

0

4

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

5

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

6

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07200807

V-BELT, B-COGGED

$48.99

$

In Stock, only 1 left!

0

9

Gravely 07200817

V-BELT, HB SECTION

$126.99

$

In Stock, only 2 left!

0

10

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 03253900

BLADE, 20.5"

$31.99

$

In Stock, Qty 20+

0

12

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 6

0

13

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0
