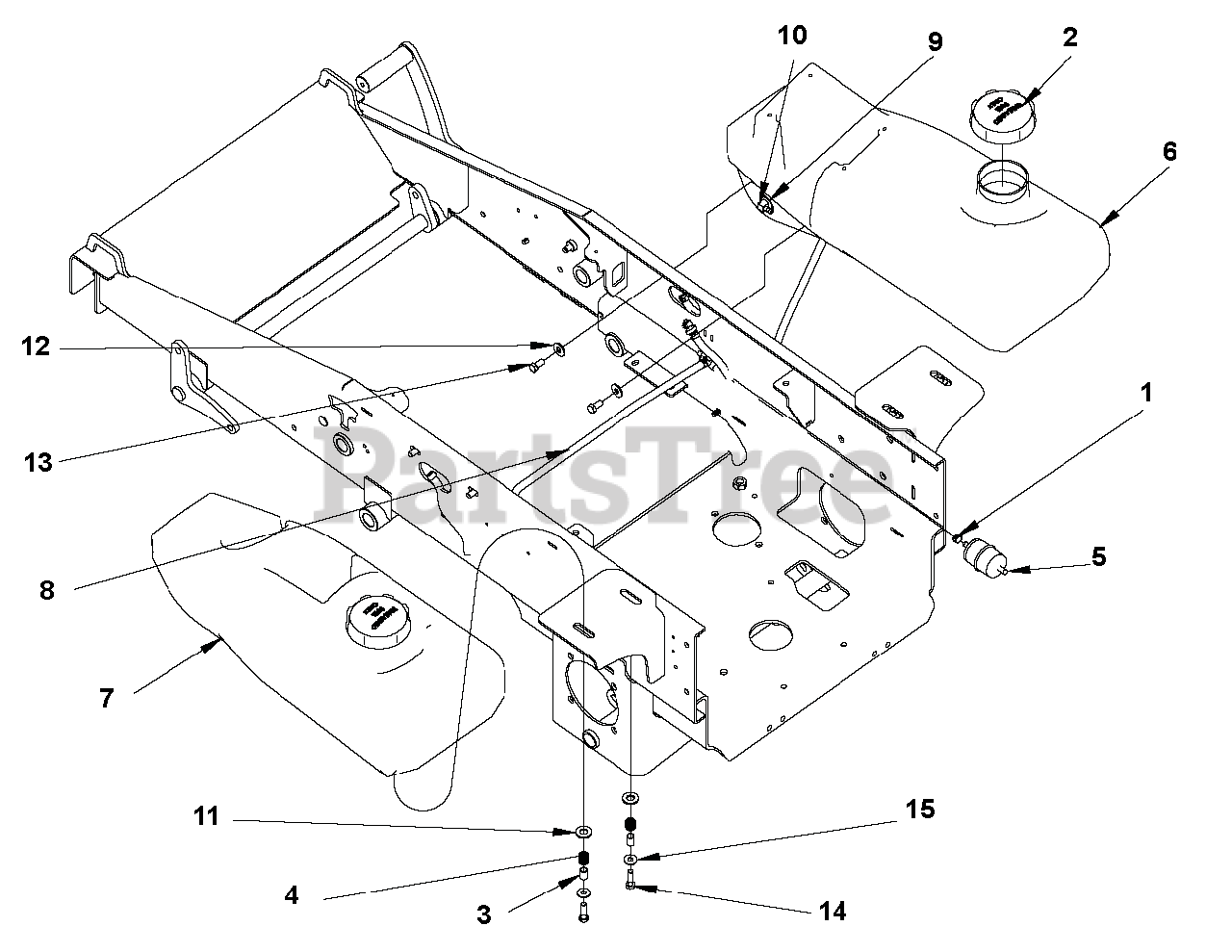

991802 (1948 S) - Ariens Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Fuel Tank Parts Diagram

Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki

Fuel Tank Parts Diagram

  • Title

1

Ariens 00130924

CLAMP, HOSE - 1/2" SPRING
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 00181251

CAP, FUEL S/O

$23.99

$

In Stock, only 1 left!

0

3

Ariens 00181023

SPACER, GAS TANK ATTACHMENT
(Superseded to 03821551)

$

$

Not available

4

Ariens 00181027

SPRING, COM .660 X .067 X .625

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$

$

Not available

6

Ariens 03793900

TANK, RH MIDMOUNT BLANK W/CAP
(Superseded to 00191392)

$

$

Not available

7

Ariens 03793800

TANK, LH MIDMOUNT BLANK W/CAP

$

$

Not available

8

Ariens 00191282

ASSY, FUEL LINE W/CHECKVALVES

$79.99

$

Usually ships in 4-12 days

0

9

Ariens 00181208

GROMMET, RUBBER TANK S/O
(Superseded to 00387300)

$9.49

$

In Stock, Qty 20+

0

10

Ariens 00191605

FTG, 90 1/4HOSE X 1/2HOSE S/O

$10.99

$

In Stock, only 1 left!

0

11

Ariens 00964505

WASHER, .500X1.00X.105 FLAT Y
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
