991802 (1948 S) - Ariens Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki

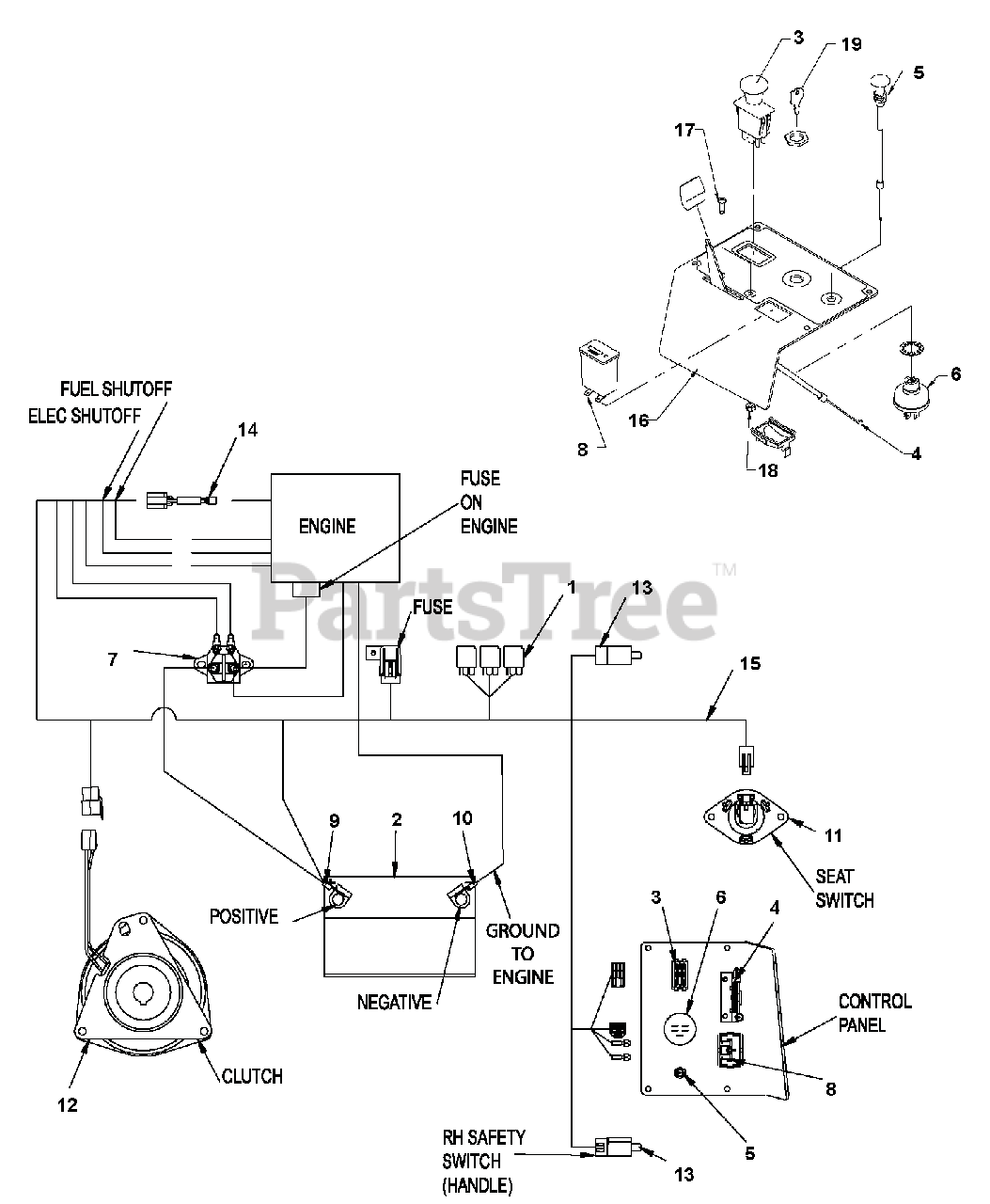

Electrical System Parts Diagram

  • Title

1

Ariens 00888400

RELAY, ISO MINI ELEC.
(Superseded to 00102770)

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

3

Ariens 00941600

SWITCH, PTO ENGAGEMENT
(Superseded to 00136574)

$28.99

$

In Stock, only 1 left!

0

4

Ariens 00181816

CABLE, THROTTLE

$

$

Not available

5

Ariens 00180273

CABLE, CHOKE 48.0"

$52.99

$

In Stock, only 2 left!

0

6

Ariens 00963000

PLATE, ENGINE MOUNTING

$

$

Not available

7

Ariens 03551000

SOLENOID

$34.99

$

In Stock, Qty 14

0

8

Ariens 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

9

Ariens 00872300

STARTER CABLE
(Superseded to 00180842)

$15.99

$

In Stock, only 1 left!

0

10

Ariens 00191227

CABLE, BATTERY - 35" GROUND

$

$

Not available

11

Ariens 00181074

SEAT SWITCH S/O

$

$

Not available

12

Ariens 00191109

CLUTCH, ELECT - OGURA GT, 2.5

$413.99

$

In Stock, only 2 left!

0

13

Ariens 00953100

SWITCH, PLUNGER DP -N.O.-N.C.
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

14

Ariens 00288200

ADAPTER HARNESS, 19KAI/23KAW

$

$

Not available

15

Ariens AA191200

HARNESS, POWER UNIT WIRE

$217.99

$

Usually ships in 4-12 days

0

16

Ariens 06111100

SCR-MCH 10-24X.62 P/HD

$0.99

$

In Stock, Qty 12

0

17

Ariens 00967340

SCREW, 10-24X.625 PAN PHL MACY

$

$

Not available

18

Ariens 00964028

LOCKNUT, 10-24 CENTER Y
(Superseded to 06540500)

$

$

Not available

19

Ariens 00105684

KEY-IGN SERVICE ONLY
(Superseded to 02460700)

Note: SERVICE ONLY

$7.99

$

In Stock, Qty 20+

0
