991802 (1948 S) - Ariens Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Discharge Chute Parts Diagram

Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki

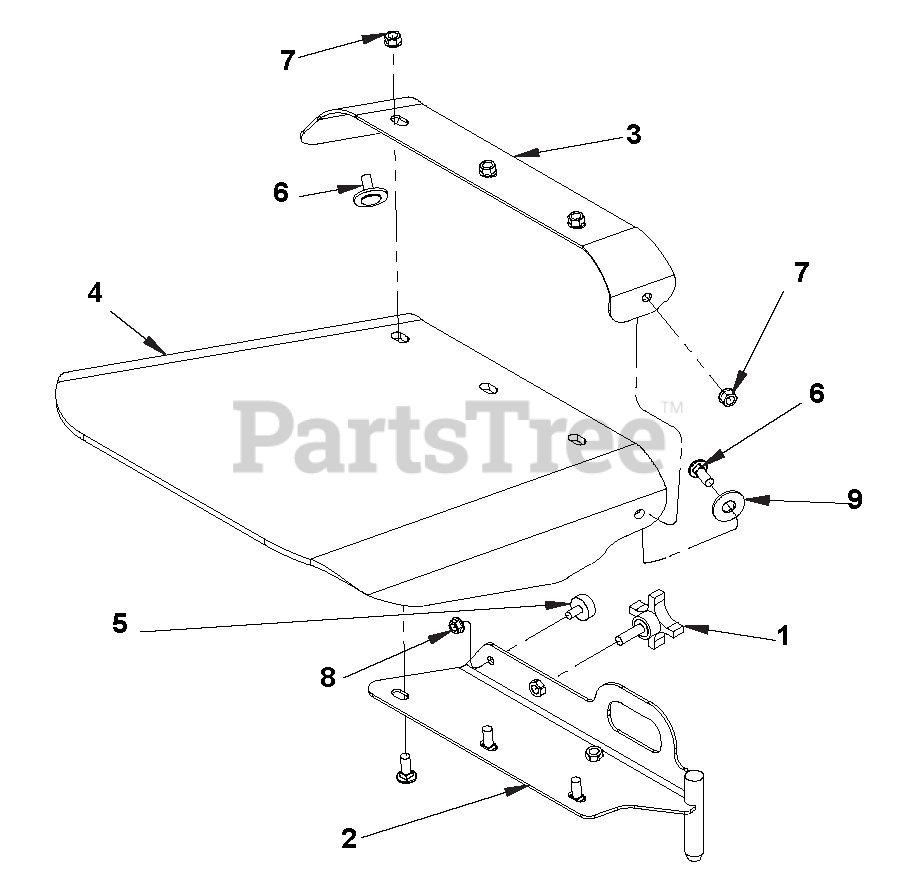

Discharge Chute Parts Diagram

  • Title
1

Ariens 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

2

Ariens 03844859

WLDT, DISCHRG CHUTE MNT-ARIENS

$

$

Not available

3

Ariens 03844959

PLATE, DISCHARGE SHIELD SUPPRT

$

$

Not available

4

Ariens 03845300

SHIELD, RUBBER DISCHARGE

$

$

Not available

5

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

6

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

7

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 00960704

WASHER, .500 REG FLAT Y
(Superseded to 06442000)

$2.49

$

In Stock, only 1 left!

0
