991590 - Ariens Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 095000 & Above) Belt Guards Parts Diagram

Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR

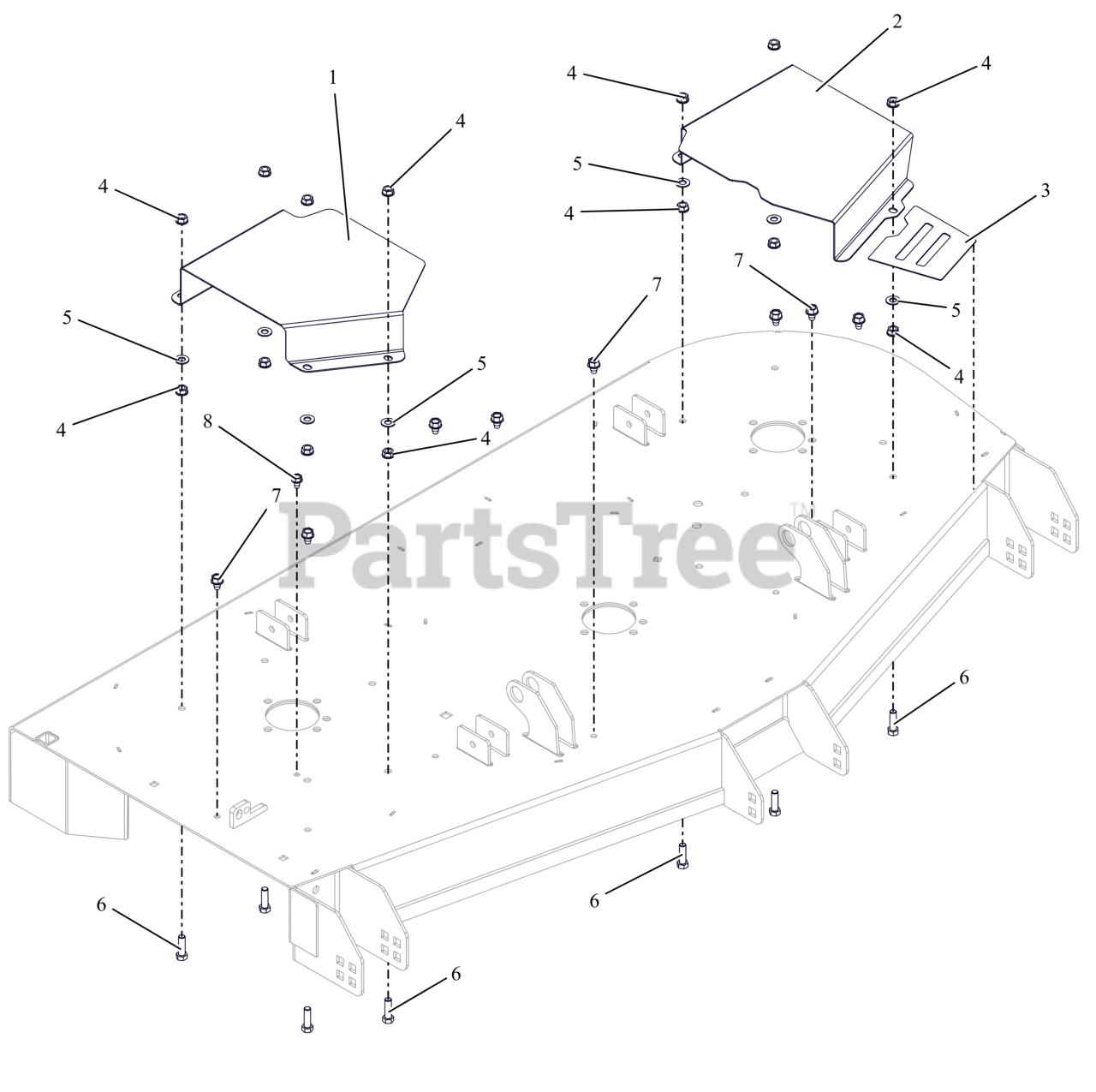

Belt Guards Parts Diagram

  • Title
1

Ariens 05074451

COVER- BELT 52/60" RIGHT

$

$

Not available

2

Ariens 09740551

COVER- BELT 60" LEFT

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 05160100

GRIP TAPE 52-60 BELT COVER

$

$

Not available

4

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
