991401 (EZKH1848S) - EverRide Hornet 48" Zero-Turn Mower, 18hp Kawasaki (SN: 010000 & Above) Hydraulic Parts Diagram

Hornet 48" Zero-Turn Mower, 18hp Kawasaki

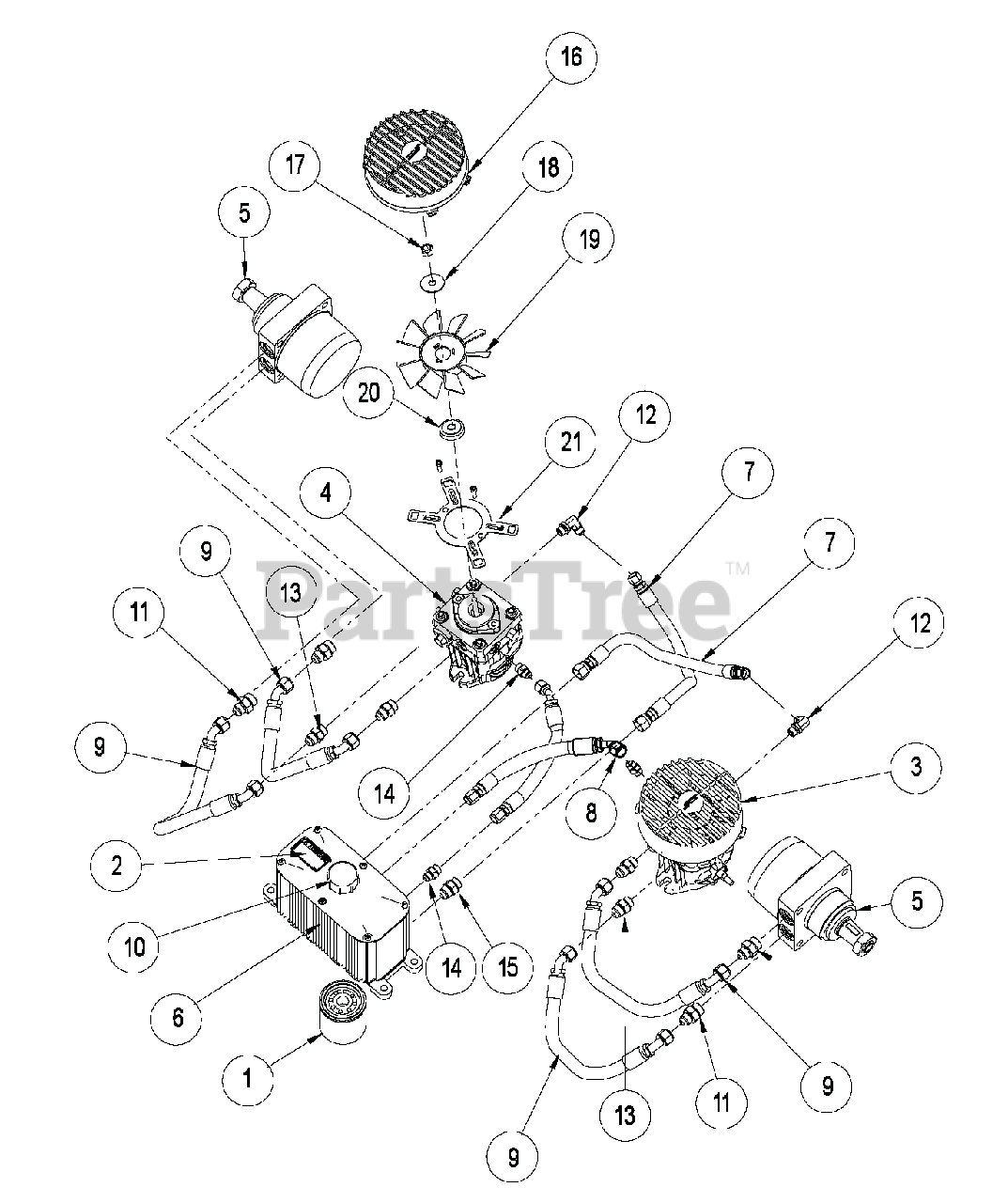

Hydraulic Parts Diagram

  • Title

1

Ariens 00180909

FILTER, 25 MICRON

$51.99

$

Usually ships in 4-12 days

0

2

Ariens 00181254

DECAL, ATTENTION HYD. RES.

$

$

Not available

3

Ariens 00261600

PUMP, HYDRO LH

$1246.99

$

Usually ships in 4-12 days

0

4

Ariens 00273900

PUMP, HYDRO RH

$864.99

$

Usually ships in 4-12 days

0

N/I

Ariens 00191618

KIT, HORNET PG PUMP SEAL S/O

$

$

Not available

5

Ariens 00191103

PARKER TJ WHEEL MOTOR TL195

$905.99

$

Usually ships in 4-12 days

0

N/I

Ariens 00191619

KIT, HORN WHEEL MOTOR SEAL S/O

$

$

Not available

6

Ariens 00191616

ASSY, HYD. TANK W/DECAL S/O

$

$

Not available

7

Ariens 00191204

HOSE, HYD-6 -9FJIC -12FJIC 15

$

$

Not available

8

Ariens 00191205

HOSE, HYD--6 -9FJIC45 7

$45.99

$

Usually ships in 4-12 days

0

9

Ariens 00191206

HOSE, HYD-8 -12FJIC45 18

$

$

Not available

10

Ariens 191600

CAP, HYDRAULIC

$

$

Not available

11

Ariens 00231104

FTG, ADP 3/4-16MJICX7/8-14MOR

$

$

Not available

12

Ariens 00313270

FTG, 90 9/16 MOR X 9/16 MJIC

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 00313391

FTG, ADP 3/4-16MORX3/4-16MJIC

$

$

Not available

14

Ariens 00221285

FTG, ADP 9/16MORX9/16MJIC

$

$

Not available

15

Ariens 00313391

FTG, ADP 3/4-16MORX3/4-16MJIC

$

$

Not available

16

Ariens 00191620

SHROUD, HG PUMP S/O

$25.99

$

Usually ships in 4-12 days

0

17

Ariens 00964066

LOCKNUT, 3/8-24 CROWN Y
(Superseded to 06512300)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 00180995

WASHER, .375X1.25X.072 BLVL U

$

$

Not available

19

Ariens 00191621

FAN, HORNET PUMP S/O

$

$

Not available

20

Ariens 00180994

HUB, BDP16 FAN

$21.99

$

In Stock, only 2 left!

0

21

Ariens 00191622

PLATE, FAN SHROUD MOUNT S/O

$

$

Not available
