991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 010000 & Above) Spindle Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

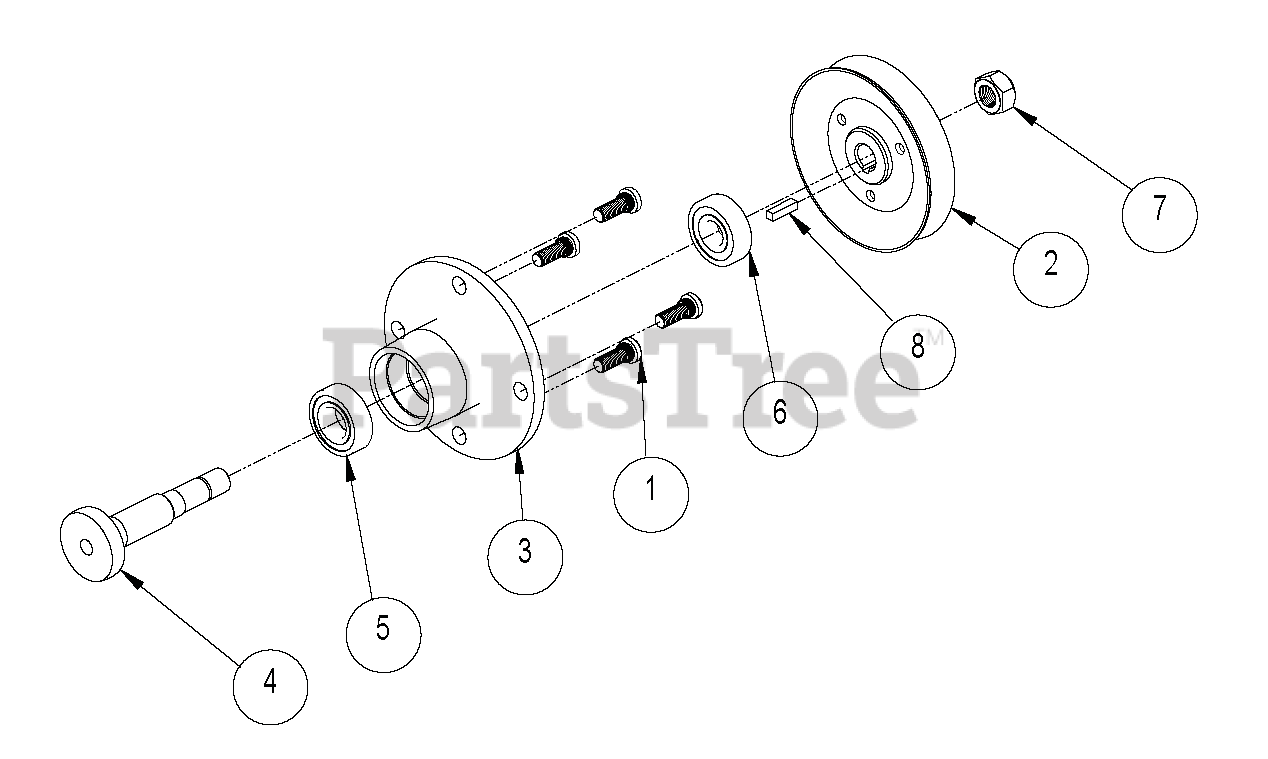

Spindle Parts Diagram

  • Title
1

Ariens 00145561

BOLT, 7/16-20X1.22 SPC 5 Y

$14.99

$

Usually ships in 4-12 days

0

2

Ariens 00180780

PULLEY, V-BELT 5.75X.750 W/KEY

$85.99

$

In Stock, only 1 left!

0

Ariens 00144579

PULLEY, V-BELT 5.38X.750 W/KEY

$79.99

$

Usually ships in 4-12 days

0

3

Ariens 00191013

SPINDLE, MACHINED BALL BRG

$265.99

$

Usually ships in 4-12 days

0

4

Ariens 00191014

SHAFT, BLADE SPINDLE

$

$

Not available

5

Ariens 00149230

BRG, BAL .984X2.05X.591 - 6205
(Superseded to 00191155)

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 00103977

BRG, BAL .787X2.05X.591
(Superseded to 00191156)

$21.99

$

Usually ships in 4-12 days

0

?7

Ariens 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 00966045

KEY, .250 X .250 X 1.00 SQ

$2.99

$

In Stock, only 2 left!

0
