991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 010000 & Above) Seat Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

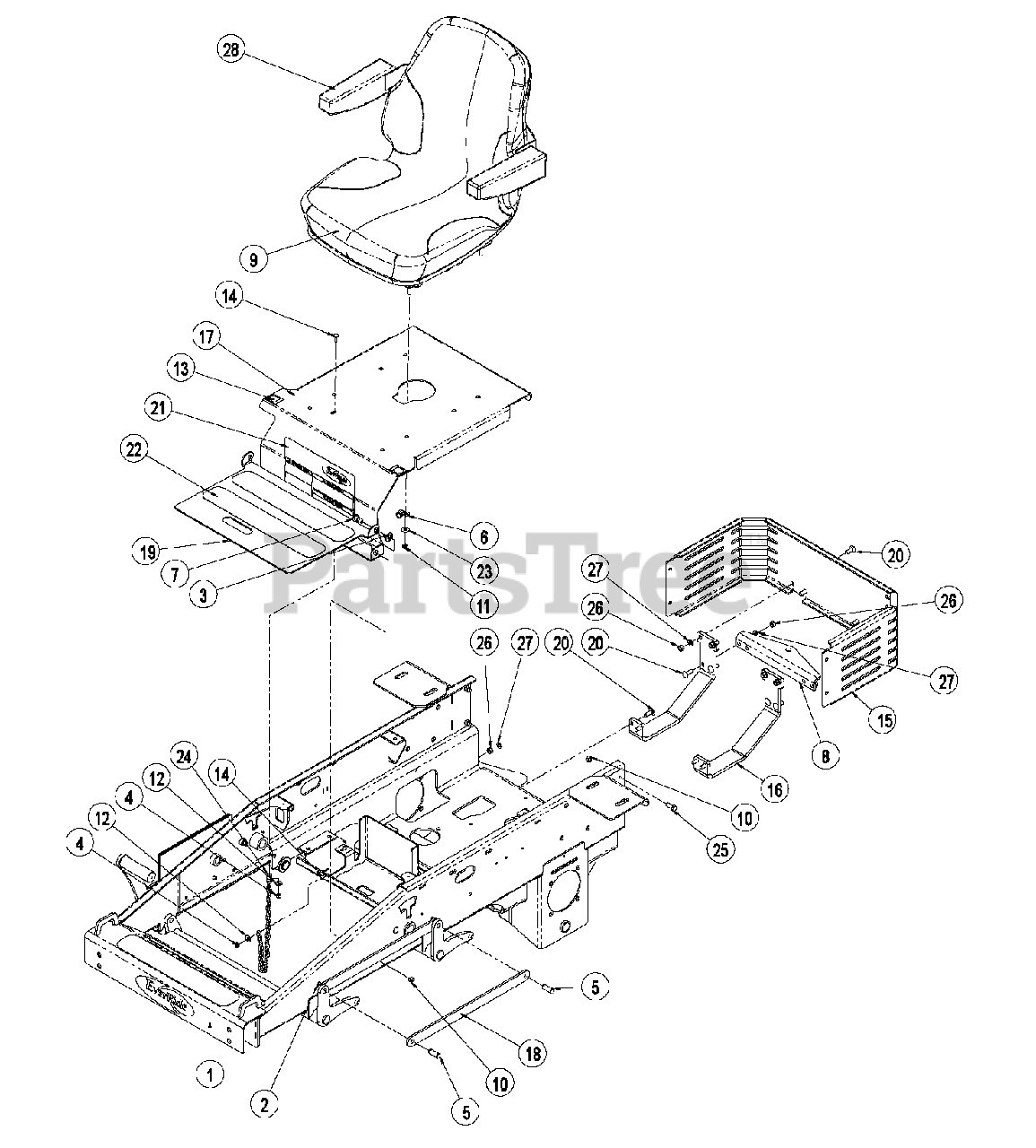

Seat Parts Diagram

  • Title
1

Ariens 00191612

ASSY, HORN FRM & LFT W/DCL S/O

$

$

Not available

2

Ariens 00967354

RING, RUE .500 X .062 X 1.420

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 00967398

WASHER, .510X1.00X.068 NYLON

$

$

Not available

4

Ariens 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

5

Ariens 00110330

PIN, CVS .500X1.25X1.02 Y
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

6

Ariens 00111886

P-CLIP, .500 INSULATED
(Superseded to 06900512)

$

$

Not available

7

Ariens 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 00180604

PLATE, HITCH

$

$

Not available

9

Ariens 00180916

SEAT, FULL SUSPENSION

$

$

Not available

10

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

11

Ariens 00964021

LOCKNUT, 5/16-18 CROWN Y
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 960700

WASHER, .250 REG FLAT

$

$

Not available

13

Ariens 00181003

DECAL, PARK BRAKE

$11.99

$

Usually ships in 4-12 days

0

14

Ariens 00963095

BOLT, 1/4-20X.750 CRG 5 Y
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 00191615

ASSY,REAR ENGINE GUARD W/DECAL

$

$

Not available

16

Ariens 00191074

BRACE, BENT ARM HITCH

$

$

Not available

17

Ariens 00191624

ASSY, SEAT PLATE W/DECALS S/O

$

$

Not available

18

Ariens 00191142

PLATE, ARM CONNECTOR LINK

$

$

Not available

19

Ariens 00191613

ASSY, FLOOR PAN W/DECALS

$

$

Not available

20

Ariens 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

21

Ariens 00191214

DECAL, SAFETY GROUP

$

$

Not available

22

Ariens 00191257

TAPE, TRACTION 3.00 X 17.00

$

$

Not available

23

Ariens 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 00191487

CHAIN, .148 X 27 LIINKS

$

$

Not available

25

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

27

Ariens 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

28

Ariens 00181461

ARM REST, SINGLE S/O

$

$

Not available

N/I

Ariens 00181811

KIT, MILSCO ROLLER/BUMPER

$

$

Not available

N/I

Ariens 00181812

KIT, MILSCO DAMPER

$

$

Not available

N/I

Ariens 00181813

KIT, MILSCO SPRING/CABLE

$

$

Not available

N/I

Ariens 00181814

KIT, MILSCO EVERRIDE CUSHION

$

$

Not available
