991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 010000 & Above) Rear Brake Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

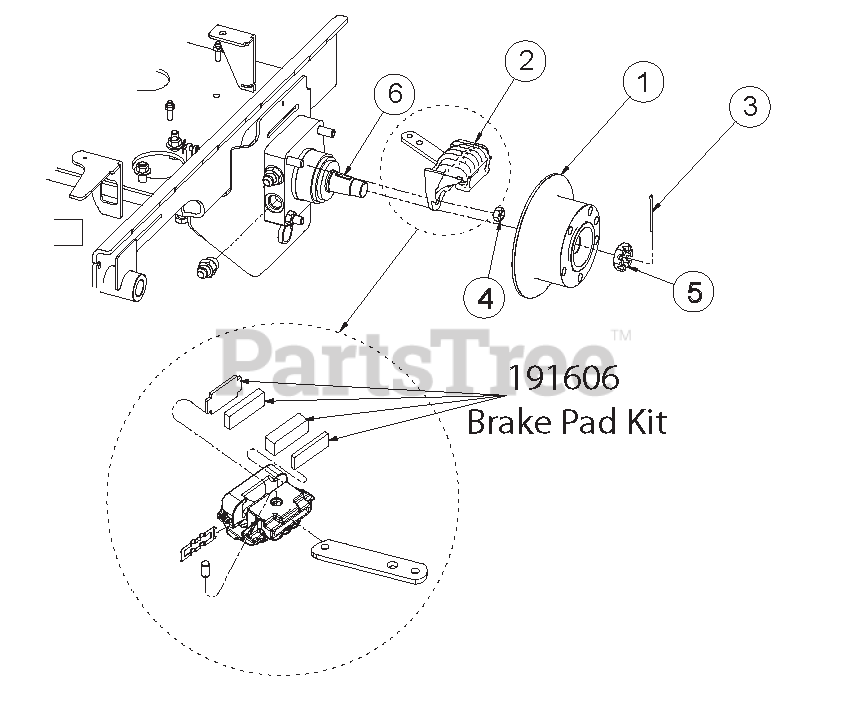

Rear Brake Parts Diagram

  • Title
1

Ariens 00191110

HUB, WHEEL - 5 BOLT, 8" DISC

$112.99

$

Usually ships in 4-12 days

0

2

Ariens 00191111

CALIPER, M15 BRAKE & BRKT CCW

$153.99

$

Usually ships in 4-12 days

0

2

Ariens 00191112

CALIPER, M15 BRAKE & BRKT CW

$183.99

$

Usually ships in 4-12 days

0

3

Ariens 00962020

PIN, COT .125X1.75 EXTP Y
(Superseded to 06709700)

$

$

Not available

4

Ariens 964000

LOCKNUT, 1/2-13 CROWN

$

$

Not available

5

Ariens 00191625

NUT, 1-20 SPECIAL CASTLE S/O

$

$

Not available

6

Ariens 00191603

KEY, WDRF .313X1.00-#1008 S/O
(Superseded to 06607800)

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 00191606

KIT, 3/16 DISC BRAKE PAD S/O

$75.99

$

Usually ships in 4-12 days

0
