991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 010000 & Above) Mower Group Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

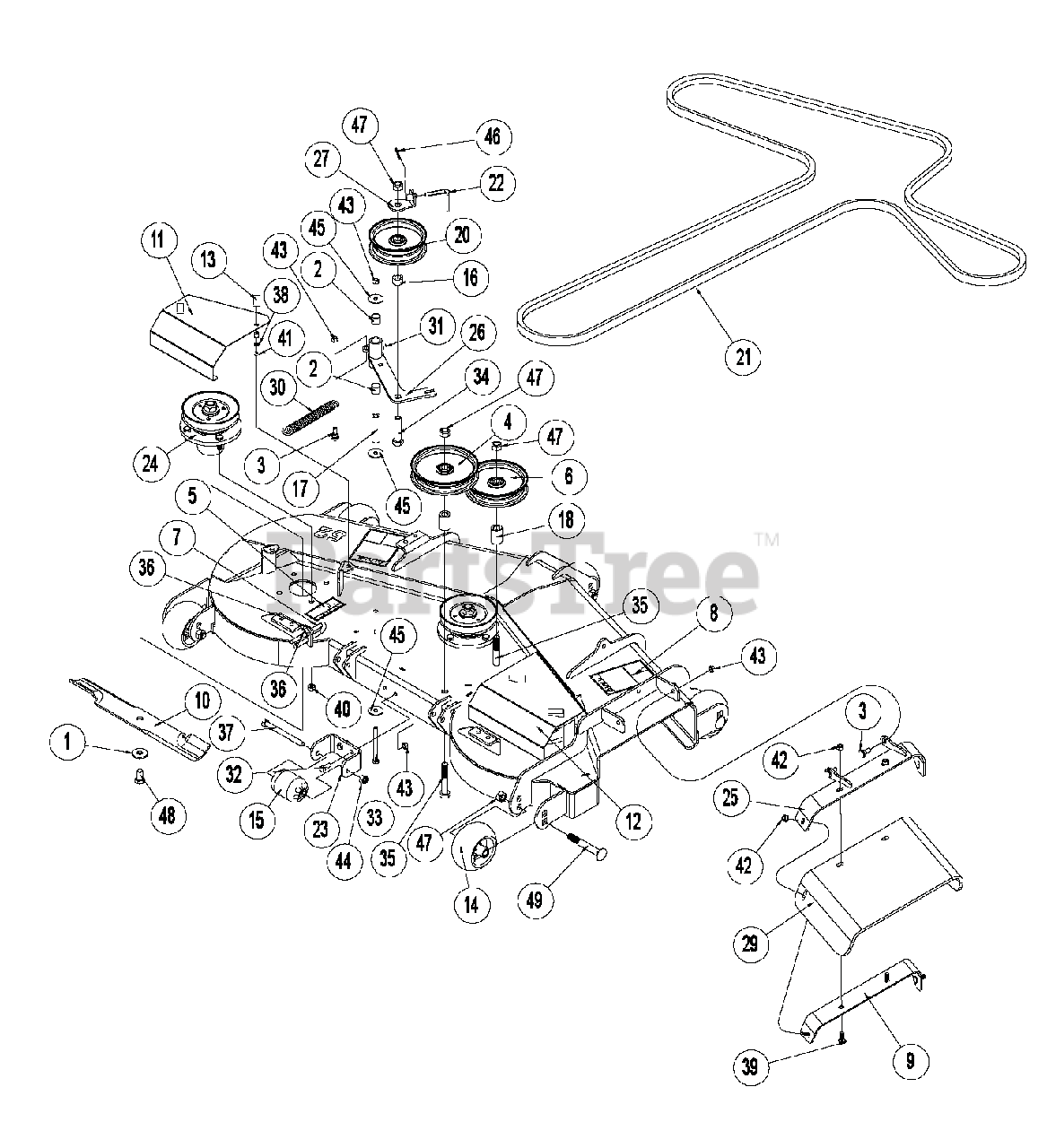

Mower Group Parts Diagram

  • Title

1

Ariens 00103906

WASHER, M14XM40XM4.5 FLAT Y

$9.49

$

Usually ships in 4-12 days

0

2

Ariens 00105546

BRG, SLV .753X.878X.750

$6.99

$

In Stock, only 4 left!

0

3

Ariens 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 00140280

PULLEY, FLAT 6.00X.635 W/BRG

$68.99

$

In Stock, only 4 left!

0

5

Ariens 00160169

DECAL, WARNING - SHIELD

$9.99

$

Usually ships in 4-12 days

0

6

Ariens 00161955

PULLEY, FLAT 5.50X.635 W/BRG

$68.99

$

In Stock, only 2 left!

0

7

Ariens 00181194

U-BOLT, RD .63X4.50X3/8-16SP Y

$6.99

$

Usually ships in 4-12 days

0

8

Ariens 00181258

DECAL, DANGER - DECK

$

$

Not available

9

Ariens 00191098

PLATE, DISCHG SHIELD SUPPORT

$

$

Not available

10

Ariens 00191108

BLADE, 18.000 X 1.00 LIFT

$

$

Not available

10

Ariens 00191107

BLADE, 16.500 X 1.00 LIFT

$

$

Not available

11

Ariens 00191163

SHIELD, LH ZTM BELT

$

$

Not available

12

Ariens 00191164

SHIELD, RH ZTM BELT

$

$

Not available

13

Ariens 00191165

LATCH, 12-24 SOUTHCO

$41.99

$

Usually ships in 4-12 days

0

14

Ariens 00191201

WHEEL, GAUGE 5.00 X 3.31

$20.99

$

Usually ships in 4-12 days

0

15

Ariens 00191226

WHEEL, GAUGE 2.56 X 3.94 SYM

$

$

Not available

16

Ariens 00191255

BUSHING, .688 X 1.13 X .625

$29.99

$

Usually ships in 4-12 days

0

17

Ariens 00191347

TUBE, RD .750 X .156 X 3.05

$14.99

$

In Stock, only 1 left!

0

18

Ariens 00191355

BUSHING, .688IDX 1.13 X 1.68L

$49.99

$

In Stock, only 1 left!

0

19

Ariens 00191370

DECAL, DECK 52"

$

$

Not available

19

Ariens 00191369

DECAL, DECK 48"

$

$

Not available

20

Ariens 00191374

PULLEY, FLAT 5.00X.635 W/BRG

$75.99

$

Usually ships in 4-12 days

0

21

Ariens 00192015

BELT, HB 148.0 OC AMD OHR

$97.99

$

In Stock, only 1 left!

0

21

Ariens 00191378

BELT, HB 140.9 EL AMD

$94.99

$

In Stock, only 1 left!

0

22

Ariens 00191837

BELT KEEPER, 90? W/HOLE

$9.49

$

In Stock, Qty 5

0

23

Ariens 00191486

BRACKET, ANTI-SCALP

$

$

Not available

24

Ariens 00191500

ASSY,42"SNOW HEAD

$

$

Not available

24

Ariens 00191517

ASSY, SPINDLE BALL BRG

$

$

Not available

25

Ariens 191531

WLDT, DISCHARGE SHIELD BRACKET

$

$

Not available

26

Ariens 00191533

WLDT, DECK BELT TENSIONER

$180.99

$

Usually ships in 4-12 days

0

26

Ariens 00191579

WLDT, DECK BELT TENSIONER

$

$

Not available

27

Ariens 00191537

WLDT, BELT KEEPER Y

$85.99

$

In Stock, only 1 left!

0

28

Ariens 00191611

ASSY, 52 HORN DECK W/DECAL S/O

$

$

Not available

28

Ariens 00191610

ASSY, 48 HORN DECK W/DECAL S/O

$

$

Not available

29

Ariens 00191559

SHIELD, RUBBER DISCHARGE

$

$

Not available

30

Ariens 00356473

SPRING, EXT .910X.177X6.15 Y

$39.99

$

Usually ships in 4-12 days

0

31

Ariens 00959994

FTG, 1/4-28 TPR 45 GREASE ZERK

$10.99

$

Usually ships in 4-12 days

0

32

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 00960058

BOLT, 3/8-16X4.00 HEX 5 Y
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

34

Ariens 00960160

BOLT, 5/8-11X2.75 HEX 5 Y
(Superseded to 05901635)

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 00960163

BOLT, 5/8-11X3.50 HEX 5 Y
(Superseded to 05982900)

$9.49

$

In Stock, only 1 left!

0

36

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

37

Ariens 00961343

BOLT, M12X1.75X130 HEX 8.8 Y

$

$

Not available

38

Ariens 00961701

WASHER, M6 REG FLAT Y
(Superseded to 06449100)

$

$

Not available

39

Ariens 00963020

BOLT, 3/8-16X1.00 CRG 5 Y
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

40

Ariens 00964005

NUT, 7/16-20 HEX GR5 Y
(Superseded to 06500434)

$3.99

$

Usually ships in 4-12 days

0

41

Ariens 00964014

LOCKNUT, 12-24 NYLOC Y
(Superseded to 06511200)

$3.99

$

Usually ships in 4-12 days

0

42

Ariens 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

44

Ariens 00964044

LOCKNUT, M12X1.75 NYLOC Y
(Superseded to 06542500)

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 00964502

WASHER, .375X1.50X.063 FLAT Y
(Superseded to 06439300)

$3.49

$

In Stock, Qty 20+

0

46

Ariens 00967356

RING, RUE .625 X .072 X 1.690

$3.49

$

Usually ships in 4-12 days

0

47

Ariens 00967392

LOCKNUT, 5/8-11 CROWN Y
(Superseded to 06518700)

$3.99

$

In Stock, Qty 6

0

48

Ariens 00967397

BOLT, 9/16-12X1.00 HEX 8 Y
(Superseded to 05985500)

$3.99

$

Usually ships in 4-12 days

0

49

Ariens 00968088

BOLT, 5/8-11X4.50 CRG Y
(Superseded to 06200148)

$9.49

$

Usually ships in 4-12 days

0
