991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 010000 & Above) Full ROPS Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

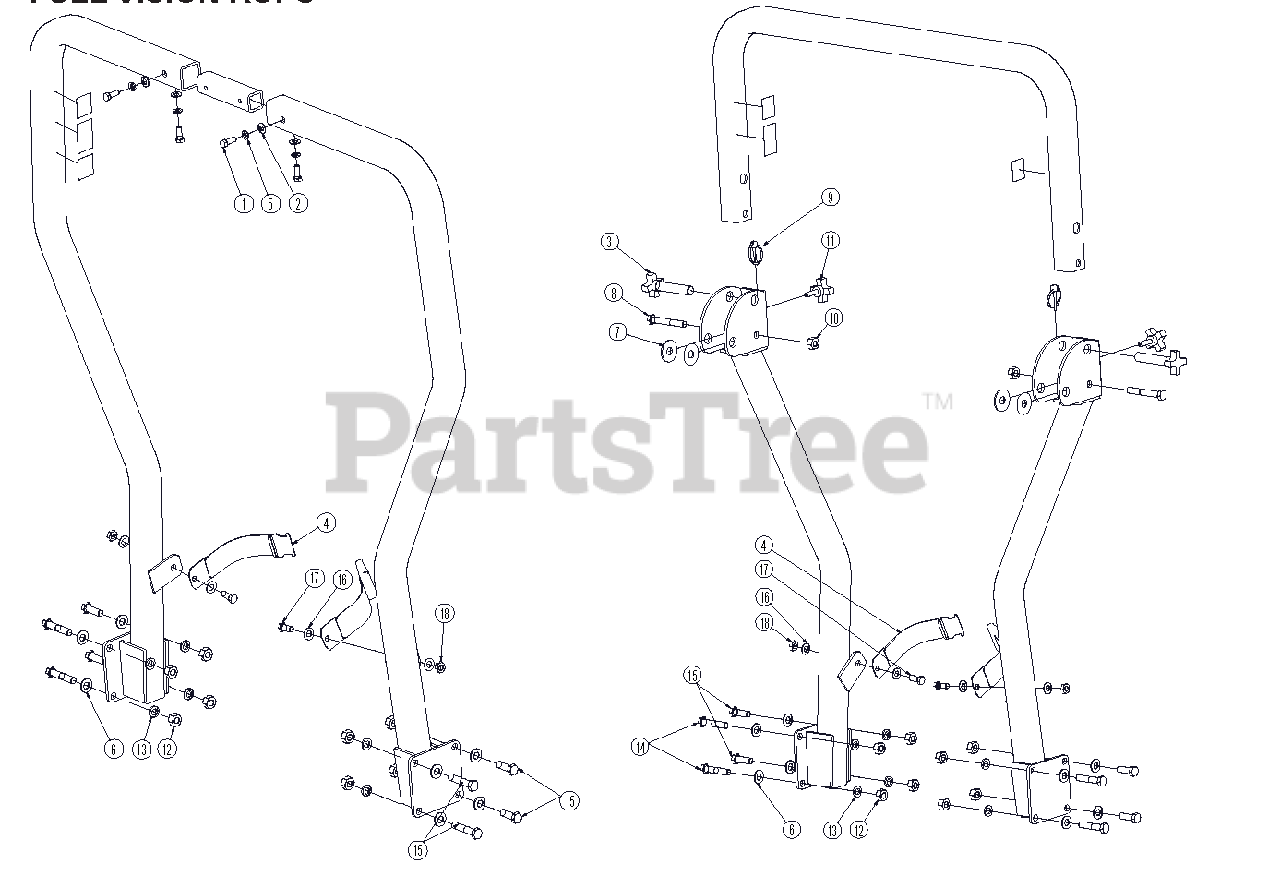

Full ROPS Parts Diagram

  • Title

1

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 00181119

PIN ASSEMBLY S/O

$

$

Not available

4

Ariens 00181092

SEAT BELT ASSY

$

$

Not available

5

Ariens 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

6

Ariens 00960704

WASHER, .500 REG FLAT Y
(Superseded to 06442000)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 00181090

WASHER, UHMW.56IDX1.25ODX.20TH

$

$

Not available

8

Ariens 00960122

BOLT, 1/2-13X3.50 HEX 5 Y
(Superseded to 05965800)

$4.99

$

In Stock, only 1 left!

0

9

Ariens 00967212

PIN, LNC .188X1.25 Y

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 00967106

LOCKNUT, 1/2-13 CENTER Y

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 00181118

KNOB W/ STUD 3/8-16 X 1.5 S/O

$

$

Not available

12

Ariens 00960504

NUT, 1/2-13 STD HEX GR5 Y
(Superseded to 06537300)

$3.99

$

In Stock, only 1 left!

0

13

Ariens 00960604

WASHER, .500 MED SPRG LOCK Y

$

$

Not available

14

Ariens 00960118

BOLT, 1/2-13X2.50 HEX 5 Y

$

$

Not available

15

Ariens 00960114

BOLT, 1/2-13X1.50 HEX 5 Y

$

$

Not available

16

Ariens 960703

FLATWASHER, 7/16 REG

$

$

Not available

17

Ariens 00960529

BOLT, 7/16-20X1.00 HEX 5 Y

$

$

Not available

18

Ariens 00960528

LOCKNUT, 7/16-20 CENTER Y

$

$

Not available
