991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 010000 & Above) Femco ROPS Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

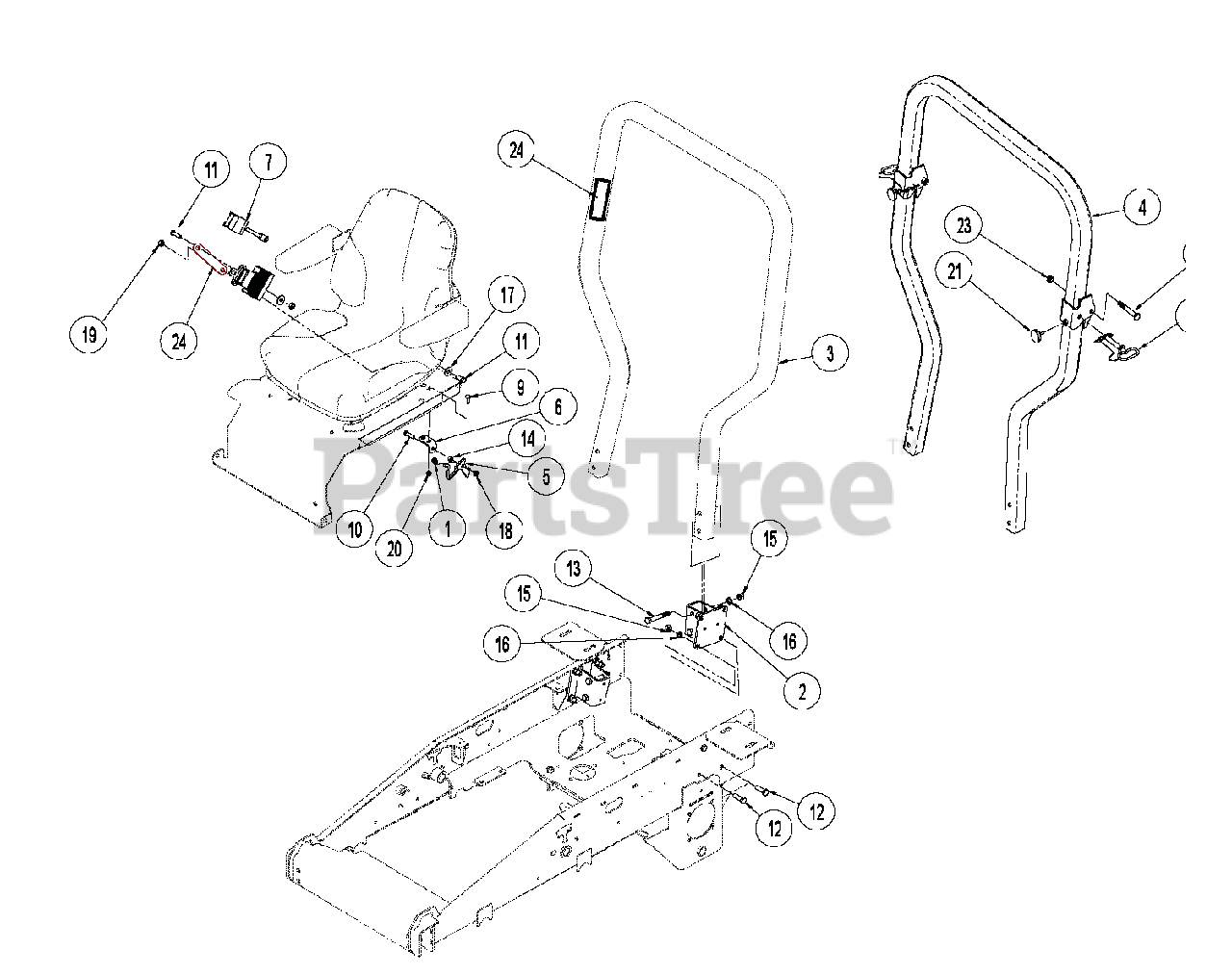

Femco ROPS Parts Diagram

  • Title

1

Ariens 00160176

SPRING, COM .600X.056X.875 Y

$9.49

$

Usually ships in 4-12 days

0

2

Ariens 00181561

WLDT, ROPS MOUNT

$

$

Not available

3

Ariens 00191491

ROPS, FEMCO FIXED HORNET

$

$

Not available

4

Ariens 00191492

ROPS, FEMCO FOLDABLE HORNET

$

$

Not available

5

Ariens 00191495

LATCH, HOOK

$

$

Not available

6

Ariens 00191496

BRACKET, LATCH

$

$

Not available

7

Ariens 00181572

ASSY, SEAT BELT

$107.99

$

Usually ships in 4-12 days

0

8

Ariens 00181591

ASSY, ROPS LOCK PIN S/O

$35.99

$

Usually ships in 4-12 days

0

9

Ariens 00963074

BOLT, 5/16-18X1.00 CRG 2 Y

$

$

Not available

10

Ariens 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00960079

BOLT, 7/16-14X1.00 HEX 5 Y
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

12

Ariens 00960114

BOLT, 1/2-13X1.50 HEX 5 Y

$

$

Not available

13

Ariens 00960122

BOLT, 1/2-13X3.50 HEX 5 Y
(Superseded to 05965800)

$4.99

$

In Stock, only 1 left!

0

14

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

15

Ariens 00960504

NUT, 1/2-13 STD HEX GR5 Y
(Superseded to 06537300)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 00960604

WASHER, .500 MED SPRG LOCK Y

$

$

Not available

17

Ariens 960703

WASHER, .438 REG FLAT Y

$

$

Not available

18

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

19

Ariens 00964025

LOCKNUT, 7/16-14 CROWN Y
(Superseded to 06508200)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 00181592

KNOB, ROUND 5/16-18 X .750

$7.99

$

In Stock, Qty 11

0

22

Ariens 00960121

BOLT, 1/2-13X3.25 HEX 5 Y

$

$

Not available

23

Ariens 00967106

LOCKNUT, 1/2-13 CENTER Y

$3.49

$

Usually ships in 4-12 days

0

24

Ariens 181788

DECAL, FEMCO ROPS DANGER

$

$

Not available
