991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 010000 & Above) Battery Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

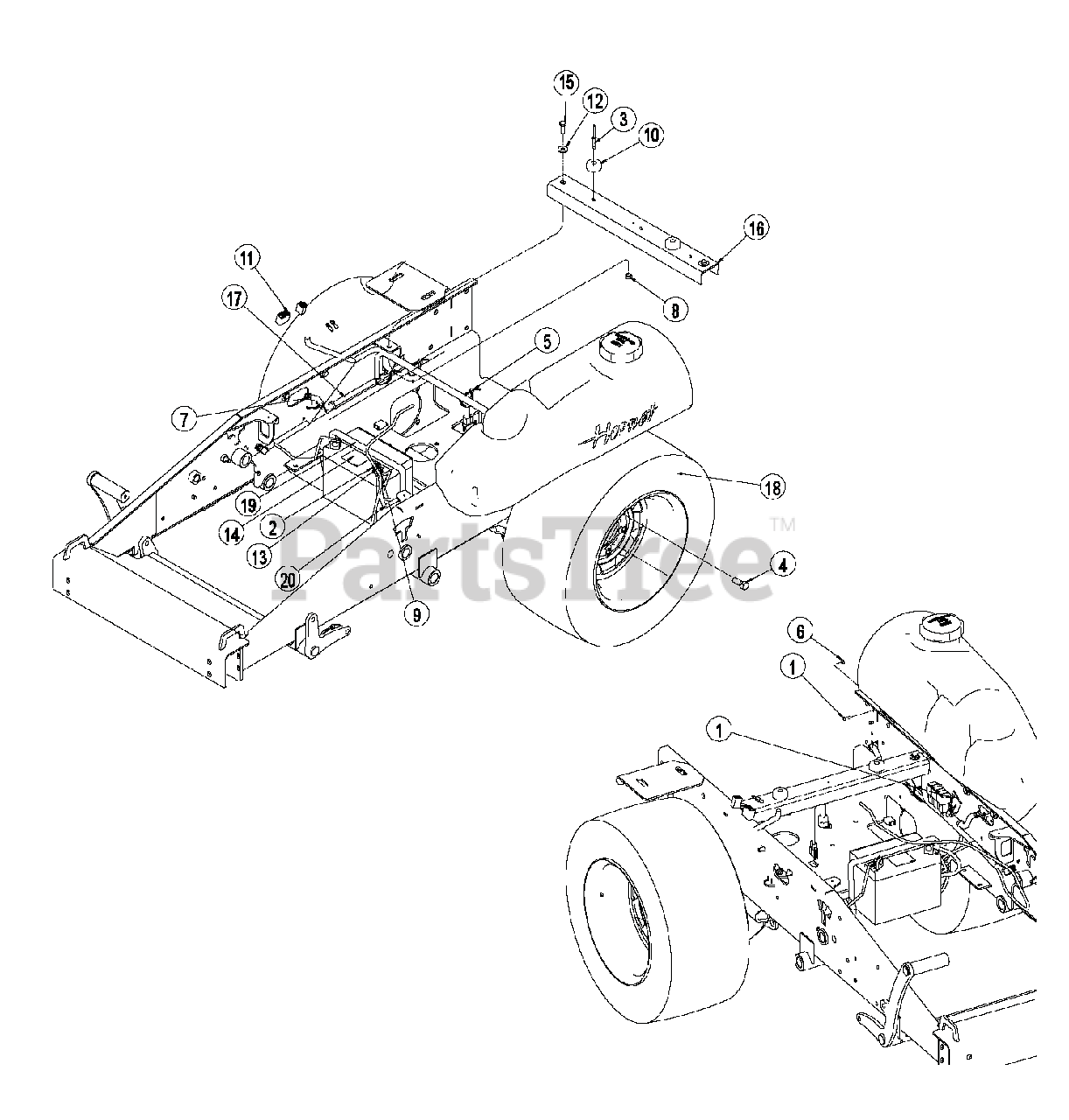

Battery Parts Diagram

  • Title

1

Ariens 00967340

SCREW, 10-24X.625 PAN PHL MACY

$

$

Not available

2

Ariens 00967152

BOLT, 5/16-18X.750 CRG 5 Y
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

3

Ariens 968100

RIVET, 3/16 X .500 POP

$

$

Not available

4

Ariens 00967133

BOLT, 1/2-20X1.00 LUG Y
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

5

Ariens 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

6

Ariens 00130923

NUT, 10-24 KEPS Y
(Superseded to 06500704)

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 00130924

CLAMP, HOSE - 1/2" SPRING
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

9

Ariens 00960501

NUT, 5/16-18 STD HEX GR5 Y
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

10

Ariens 00180390

BUMPER, RUBBER .625 X 1.50 DIA

$4.49

$

Usually ships in 4-12 days

0

11

Ariens AA191200

HARNESS, POWER UNIT WIRE

$217.99

$

Usually ships in 4-12 days

0

12

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 960601

WASHER, .313 MED SPRG LOCK

$

$

Not available

14

Ariens 00180996

DECAL, DANGER - BATTERY

$

$

Not available

15

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 00191289

PLATE, TOP CROSSMEMBER

$

$

Not available

17

Ariens 00191282

ASSY, FUEL LINE W/CHECKVALVES

$79.99

$

Usually ships in 4-12 days

0

18

Ariens 00191228

ASSY, TIRE & RIM - 23X10.50-12

$

$

Not available

Ariens 00191229

TIRE, W/O RIM 23 X10.50-12 4PL

$

$

Not available

Ariens 00191721

RIM, 12X8.5X.3 OFFSET SLVR S/O

$

$

Not available

19

Ariens 00181228

BAND 15"

$

$

Not available

20

Ariens 00191216

CABLE, BATTERY - 35" POSITIVE

$26.99

$

Usually ships in 4-12 days

0
