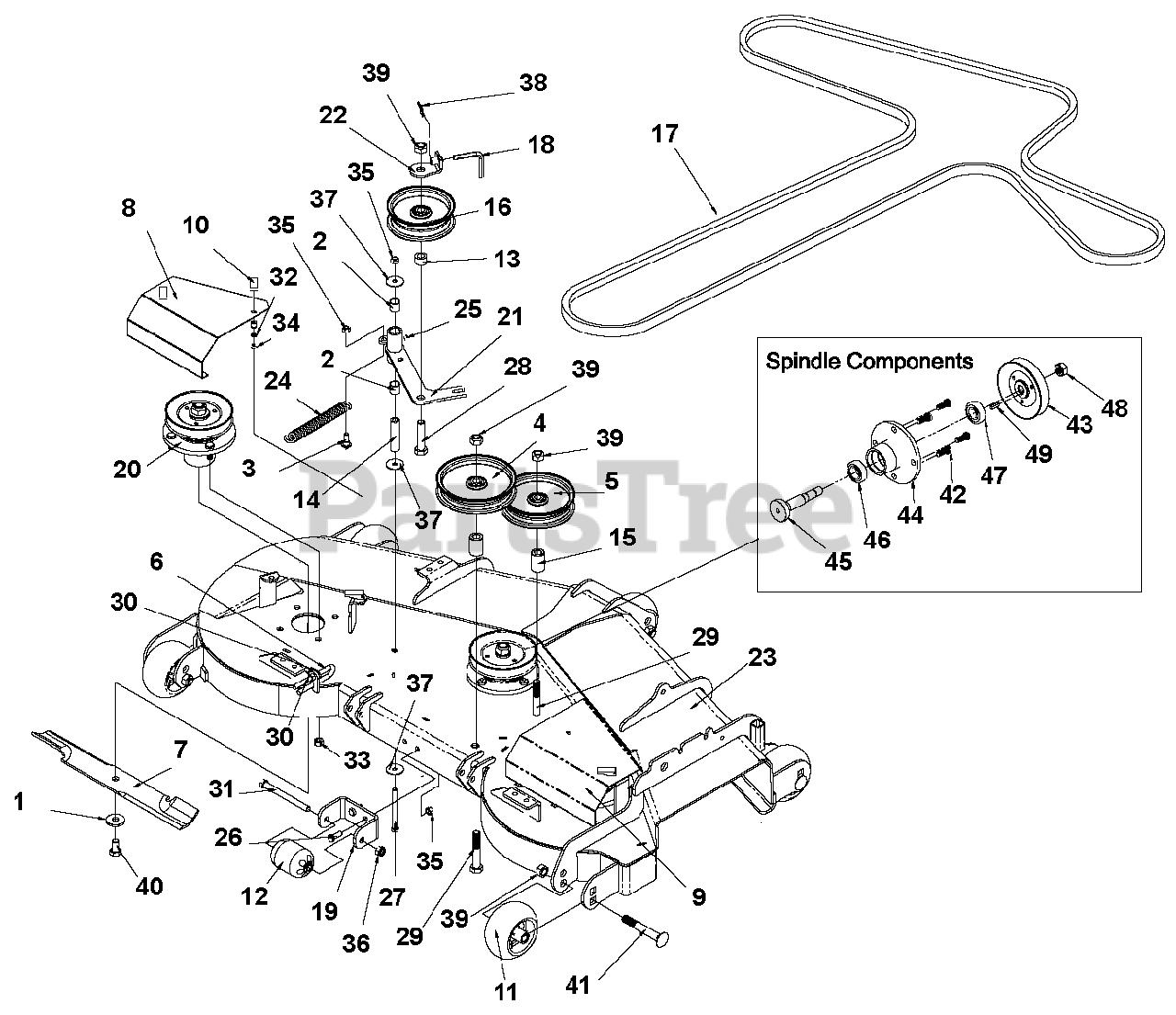

991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 - 009999) Mower Deck, Belt, And Idlers Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

Mower Deck, Belt, And Idlers Parts Diagram

  • Title

1

Gravely 00103906

Washer, M14 x M40 x M4.5 FLAT

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 00105546

Bearing, Sleeve .753 x .878 x .750

$6.99

$

In Stock, only 4 left!

0

3

Gravely 00135139

Bolt, 1/2 x 1.06 x 3/8-16 SLD 5
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 00140280

Pulley, Flat 6.00 x .635 w/Bearing

$68.99

$

In Stock, only 4 left!

0

5

Gravely 00161955

Pulley, Flat 5.50 x .635 w/Bearing

$68.99

$

In Stock, only 2 left!

0

6

Gravely 00181194

U-Bolt, Round .63 x 4.50 x 3/8-16

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 00191108

Blade, 18.000 LO-Lift - 52" Deck (400)

Note: (400)

$

$

Not available

Gravely 00191107

Blade, 16.500 LO-Lift - 48" Deck (402)

Note: (402)

$

$

Not available

8

Gravely 03848861

Shield, LH ZTM Belt

$

$

Not available

9

Gravely 03848961

Shield, RH ZTM Belt

$

$

Not available

10

Gravely 00191165

Latch, 12-24 SouthCO

$41.99

$

Usually ships in 4-12 days

0

11

Gravely 00191201

Wheel, Gauge Ø5.00 x 2.75 SYM

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 00191226

Wheel, Gauge Ø2.56 x 3.94 SYM

$

$

Not available

13

191255

Bushing, .688 x 1.13 x .625

$

$

Not available

14

Gravely 00191347

Tube, .750 x .438 x 3.047

$14.99

$

In Stock, only 1 left!

0

15

Gravely 00191355

Bushing, .688 x 1.13 x 1.68

$49.99

$

In Stock, only 1 left!

0

16

Gravely 00191374

Pulley, Flat 5.00 x .635 w/Bearing

$75.99

$

Usually ships in 4-12 days

0

17

Gravely 00192015

Belt, B144K Special - 52" Deck (400)

Note: (400)

$97.99

$

In Stock, only 1 left!

0

Gravely 00191378

Belt, B138K Special - 48" Deck (402)

Note: (402)

$94.99

$

In Stock, only 1 left!

0

18

Gravely 00191837

Belt Keeper, 90° w/Hole

$9.49

$

In Stock, Qty 5

0

19

Gravely 00191486

Bracket, Anti-Scalp

$

$

Not available

20

Gravely AA191500

Assembly, Spindle Ball Bearing - 52" Deck (400)

Note: (400)

$

$

Not available

Gravely 00191517

Assembly, Spindle Ball Bearing - 48" Deck (402)

Note: (402)

$

$

Not available

21

Gravely 00191533

Weldment, Deck Belt Tensioner

$180.99

$

Usually ships in 4-12 days

0

22

Gravely 00191537

Weldment, Belt Keeper

$85.99

$

In Stock, only 1 left!

0

23

Gravely 03847600

Weldment, 52Z Deck (400)

Note: (400)

$

$

Not available

Gravely 03847800

Weldment, 48Z Deck S/O (402)

Note: (402)

$

$

Not available

24

Gravely 00356473

Spring, Extension .910 x .177 x 6.15

$39.99

$

Usually ships in 4-12 days

0

25

Gravely 00959994

Fitting, 1/4-28 TPR 45 Grease Zerk

$10.99

$

Usually ships in 4-12 days

0

26

Gravely 00960046

Bolt, 3/8-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 00960058

Bolt, 3/8-16 x 4.00 Hex 5
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

28

Gravely 00960160

Bolt, 5/8-11 x 2.75 Hex 5
(Superseded to 05901635)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 00960163

Bolt, 5/8-11 x 3.50 Hex 5
(Superseded to 05982900)

$9.49

$

In Stock, only 1 left!

0

30

Gravely 00960502

Nut, 3/8-16 STD Hex GR5

$

$

Not available

31

Gravely 00961343

Bolt, M12 x 1.75 x 130 Hex 8.8

$

$

Not available

32

Gravely 00961701

Washer, M6 REG Flat
(Superseded to 06449100)

$

$

Not available

33

Gravely 00964005

Nut, 7/16-20 HEX GR5
(Superseded to 06500434)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 00964014

Locknut, 12-24 Nyloc
(Superseded to 06511200)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 00964022

Locknut, 3/8-16 Crown

$

$

Not available

36

Gravely 00964044

Locknut, M12 x 1.75 Nyloc
(Superseded to 06542500)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 00964502

Washer, .375 x 1.50 x .O63 Flat
(Superseded to 06439300)

$3.49

$

In Stock, Qty 20+

0

38

Gravely 00967356

Ring, Rue .625 x .072 x 1.690

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 00967392

Locknut, 5/8-11 Crown
(Superseded to 06518700)

$3.99

$

In Stock, Qty 8

0

40

Gravely 00967397

Bolt, 9/16-12 x 1.00 Hex 8
(Superseded to 05985500)

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 00968088

Bolt, 5/8-11 x 4.50 CRG
(Superseded to 06200148)

$9.49

$

In Stock, only 2 left!

0

42

Gravely 00145561

Bolt, 7/16-20 x 1.22 SPC 5

$14.99

$

Usually ships in 4-12 days

0

43

Gravely 00180780

Pulley, V-Belt 5.75 x .750 52" (400)

Note: (400)

$85.99

$

In Stock, only 1 left!

0

Gravely 00144579

Pulley, V-Belt 4.50 x .750 48" (402)

Note: (402)

$79.99

$

Usually ships in 4-12 days

0

44

Gravely 00191013

Spindle, Machined Ball Bearing

$265.99

$

Usually ships in 4-12 days

0

45

Gravely 00191014

Shaft, Spindle

$

$

Not available

46

Gravely 00149230

Bearing, Ball M25 x M52 x M15 6205
(Superseded to 00191155)

$21.99

$

Usually ships in 4-12 days

0

47

Gravely 00103977

Bearing, Ball M20 x M52 x M15 6304 (402)
(Superseded to 00191156)

Note: (402)

$21.99

$

Usually ships in 4-12 days

0

48

Gravely 00964024

Locknut, 3/4-16 Crown
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

49

Gravely 00966045

Key, .250 X .250 X 1.00 SQ

$2.99

$

In Stock, only 2 left!

0
