991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 - 009999) Fuel Tank Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

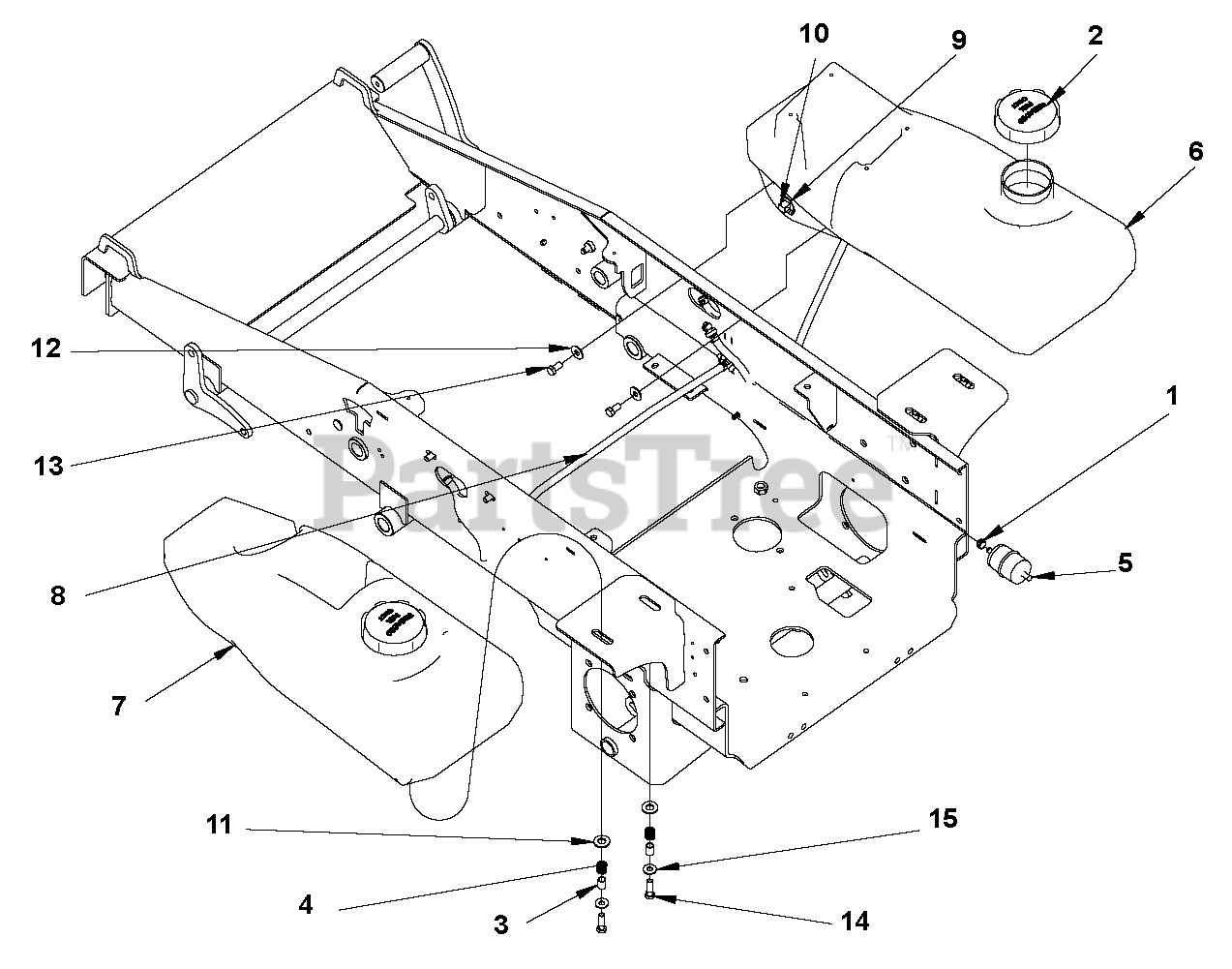

Fuel Tank Parts Diagram

  • Title

1

Gravely 00130924

Clamp, 1/2 Spring Hose
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 00181251

Fuel Cap

$23.99

$

In Stock, only 1 left!

0

3

Gravely 00181023

Spacer, Gas Tank Attachment
(Superseded to 03821551)

$

$

Not available

4

Gravely 00181027

Spring, Commpression .660 x .067 x .625

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 00181060

Fuel Filter

$

$

Not available

6

Gravely 00191392

Tank, RH Midmount Blank w/Cap

$

$

Not available

7

Gravely 00191391

Tank, LH Midmount Blank w/Cap

$

$

Not available

8

Gravely 00191282

Assembly, Fuel Line w/Checkvalves

$79.99

$

Usually ships in 4-12 days

0

9

Gravely 00181208

Grommet, Tank Fitting Rubber
(Superseded to 00387300)

$9.49

$

In Stock, Qty 20+

0

10

Gravely 00191605

Fitting, 90 Degree

$10.99

$

In Stock, only 1 left!

0

11

Gravely 00964505

Washer, .500 x 1.00 x .105 Flat
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 00960702

Washer, .375 REG Flat
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 00960045

Bolt, 3/8-16 x .750 Hex Grade 5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00960047

Bolt, 3/8-16 x 1.25 Hex Grade 5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00960701

Washer, .313 REG Flat
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
