991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 - 009999) Battery Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

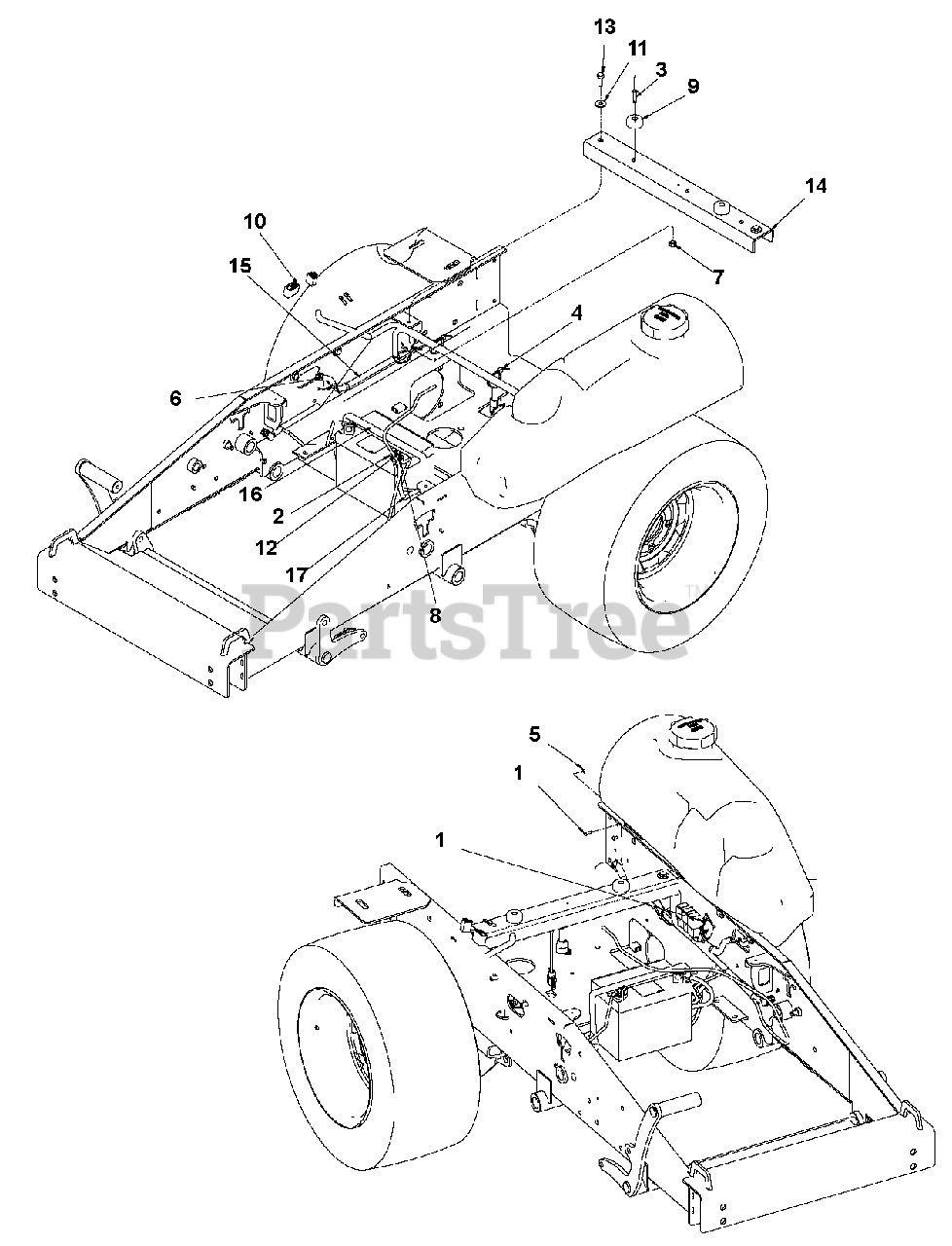

Battery Parts Diagram

  • Title

1

Gravely 00967340

Screw, 10-24 x .625 PAN PHL MAC

$

$

Not available

2

967152

Bolt, 5/16-18 x .750 CR G 5

$

$

Not available

3

Gravely AA968100

Rivet, 3/16 x .500 Pop

$

$

Not available

4

111910

Cable Tie, .15 x 8.50

$

$

Not available

5

Gravely 00130923

Nut, 10-24 KEPS
(Superseded to 06500704)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 00130924

Clamp, 1/2 Spring Hose
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00964022

Locknut, 3/8-16 Crown

$

$

Not available

8

960501

Nut, 5/16-18 Hex Grade 5

$

$

Not available

9

Gravely 00180390

Bumper, Rubber .625 x 1.50 DIA

$4.49

$

Usually ships in 4-12 days

0

10

Gravely AA191200

Harness, Power Unit Wire

$217.99

$

Usually ships in 4-12 days

0

11

Gravely 00960702

Washer, .375 REG Flat
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

12

Gravely AA960601

Washer, .313 MED Spring Lock
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 00960046

Bolt, 3/8-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03786961

Plate, Top Crossmember

$

$

Not available

15

Gravely 00191282

Assembly, Fuel Line

$79.99

$

Usually ships in 4-12 days

0

16

Gravely 00181228

Band, 15'' Rubber Bungee

$

$

Not available

17

Gravely 00191216

Cabe, Battery - 35" Positive

$26.99

$

Usually ships in 4-12 days

0
