991327 - Ariens Apex 52" Zero-Turn Mower, 23hp Kawasaki FR, Rear-Discharge (SN: A0401098 & Above) Clutch Parts Diagram

Apex 52" Zero-Turn Mower, 23hp Kawasaki FR, Rear-Discharge

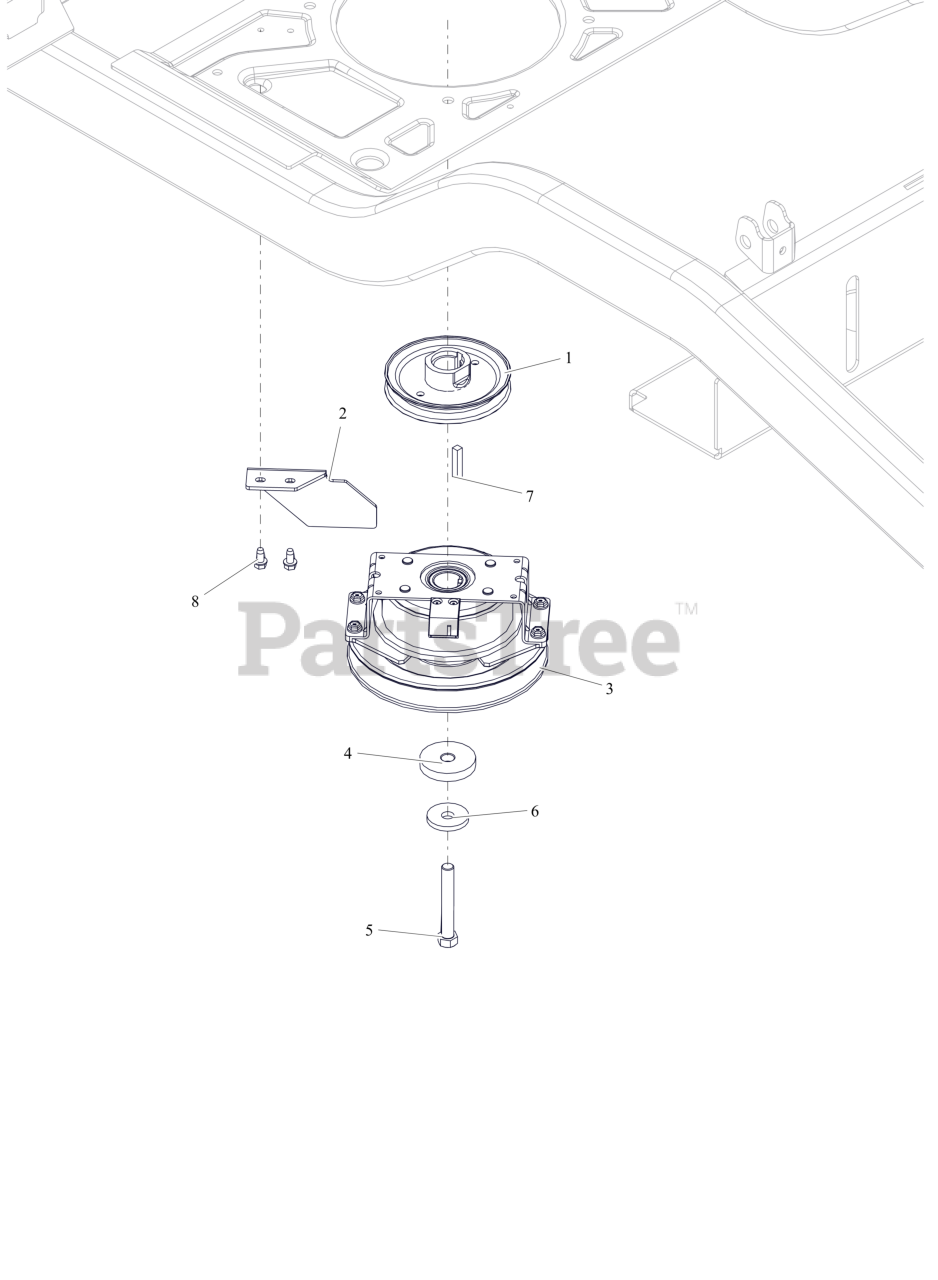

Clutch Parts Diagram

  • Title
1

Ariens 07346000

WLDMT,PULLEY-4.50ODX1.003

$67.99

$

Usually ships in 4-12 days

0

2

Ariens 05016151

BRKT, CLUTCH STOP HD

$14.99

$

In Stock, only 1 left!

0

3

Ariens 05118900

CLUTCH, OGURA DBL SPRG
(Superseded to 59118500)

$336.99

$

In Stock, only 1 left!

0

4

Ariens 05501240

SPACER, .474/.459X2.00X.350

$14.99

$

In Stock, only 1 left!

0

5

Ariens 05901819

BLT, HEX .44-20X3.00 G8 ZCC NT

$5.99

$

In Stock, only 1 left!

0

6

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

7

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

8

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
