991327 - Ariens Apex 52" Zero-Turn Mower, 23hp Kawasaki FR, Rear-Discharge (SN: A0401098 & Above) Belt Guards - 52" - RD Parts Diagram

Apex 52" Zero-Turn Mower, 23hp Kawasaki FR, Rear-Discharge

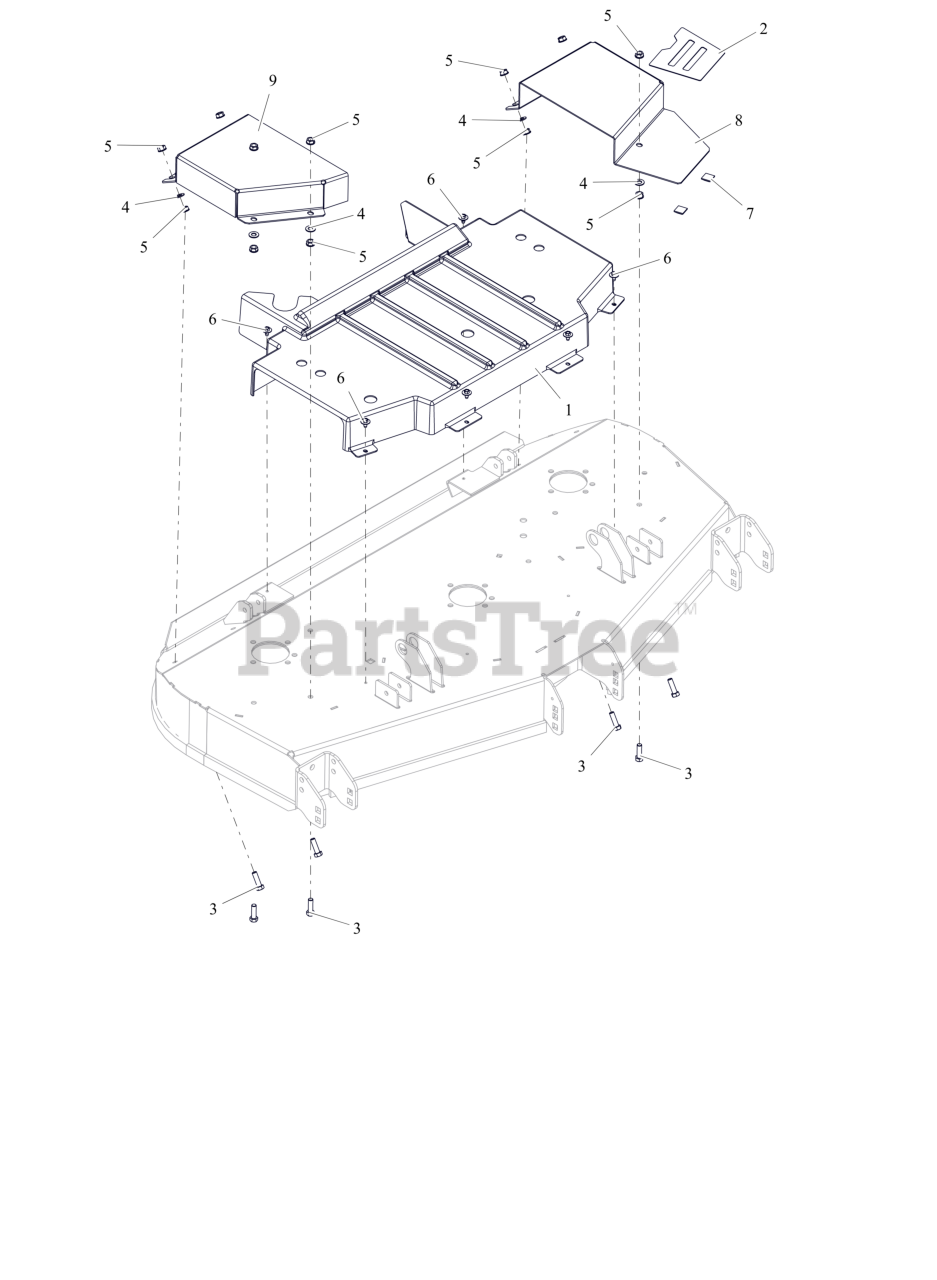

Belt Guards - 52" - RD Parts Diagram

  • Title
1

Ariens 05140400

GUARD,CENTER,DECK SPINDLE CE

$

$

Not available

2

Ariens 05160100

GRIP TAPE 52-60 BELT COVER

$

$

Not available

3

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.49

$

In Stock, Qty 5

0

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 548125200

GUARD, BELT 52" LEFT

$

$

Currently unavailable

9

Ariens 548125300

GUARD, BELT 52" RIGHT CE (ORANGE)

$

$

Currently unavailable
