991325 - Ariens Apex 48" Zero-Turn Mower, 23hp Kawasaki FR, Rear-Discharge (SN: 000101 & Above) Deck, Belts, Blades and Spindles - 48" - RD Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kawasaki FR, Rear-Discharge

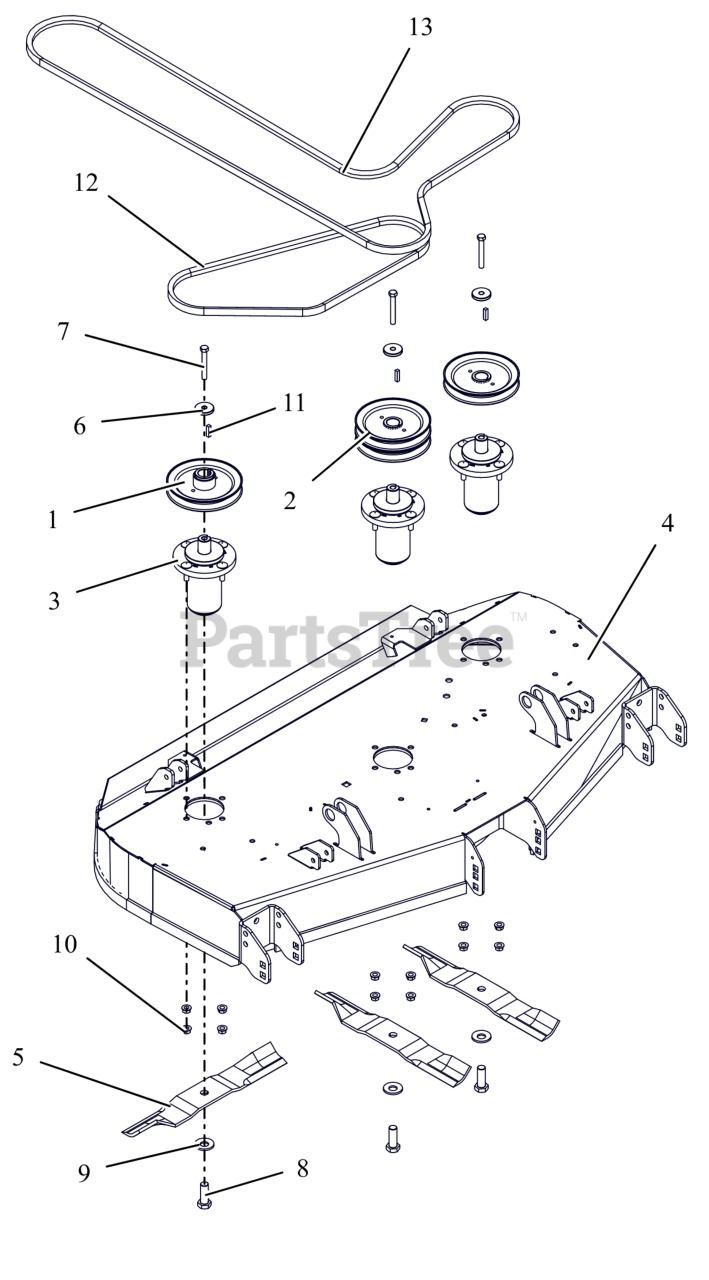

Deck, Belts, Blades and Spindles - 48" - RD Parts Diagram

  • Title

1

Ariens 07332100

PULLEY, SINGLE -1.000 ID X 6.000 OD
(Superseded to 59211700)

$82.99

$

In Stock, Qty 17

0

2

Ariens 07332300

PULLEY- DOUBLE

$78.99

$

In Stock, Qty 15

0

3

Ariens 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

4

Ariens 30210259

WLDMT, 48" RD DECK

$

$

Currently unavailable

5

Ariens 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

6

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Ariens 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

9

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

10

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 20+

0

12

Ariens 07200805

V-BELT, B-COGGED

$43.99

$

In Stock, Qty 11

0

13

Ariens 07200815

V-BELT, HB SECTION

$113.99

$

In Stock, Qty 11

0
