991323 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX, Rear-Discharge (SN: A0397256 & Above) Fuel System Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX, Rear-Discharge

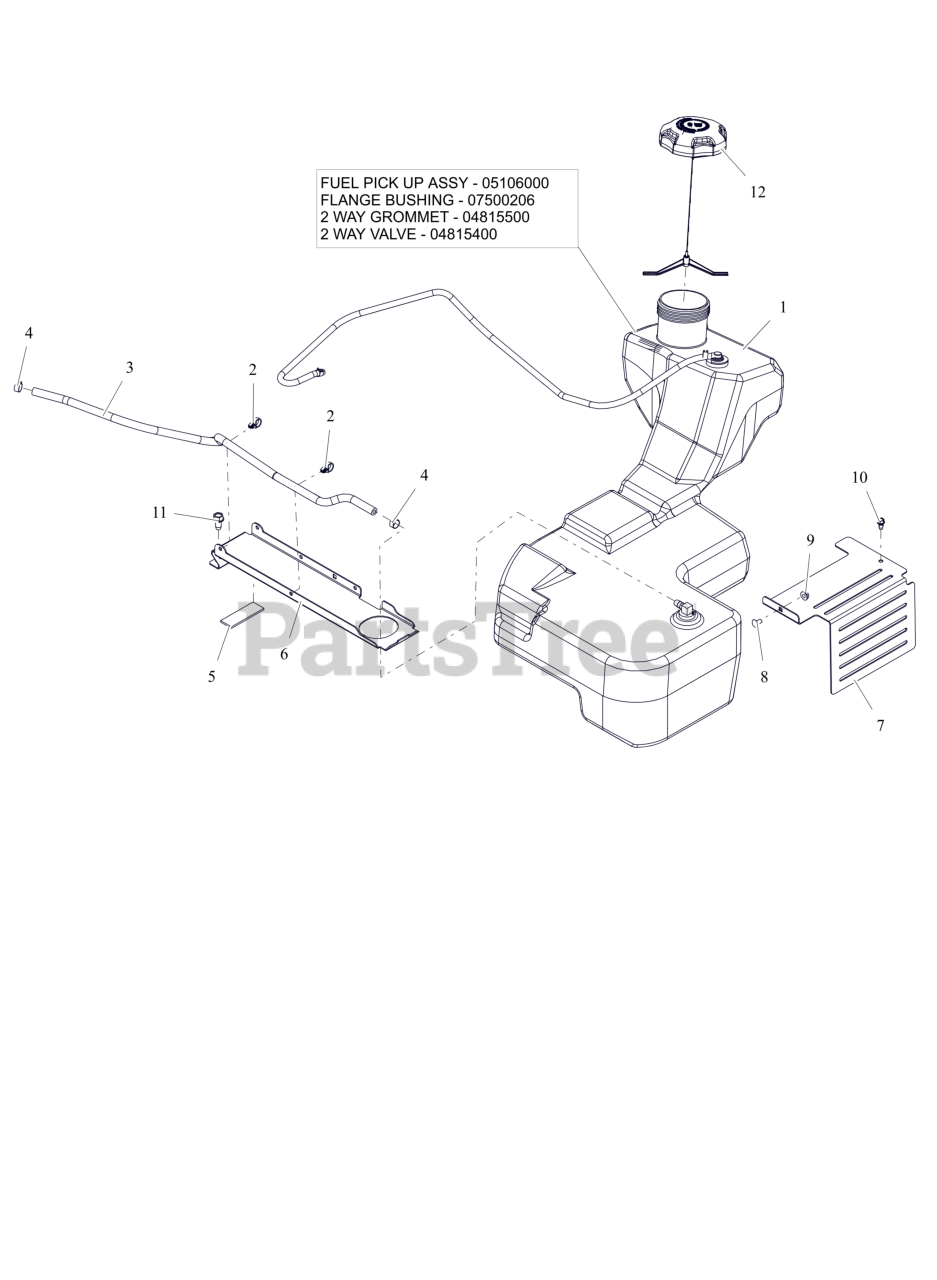

Fuel System Parts Diagram

  • Title

1

Ariens 09167300

ASM, FUEL TANK-HD

$245.99

$

Usually ships in 4-12 days

0

1

Ariens 05106000

ASM, HD FUEL PICK-UP

Note: Component Service Part

$56.99

$

In Stock, only 1 left!

0

1

Ariens 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: Component Service Part

$2.49

$

In Stock, Qty 20+

0

1

Ariens 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: Component Service Part

$3.49

$

In Stock, Qty 9

0

1

Ariens 04815400

VALVE, 2-WAY

Note: Component Service Part

$19.99

$

In Stock, Qty 8

0

2

Ariens 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

3

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Ariens 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 05024151

BRKT, FUEL TANK HOLD DOWN

$21.99

$

Usually ships in 4-12 days

0

7

Ariens 05167451

GUARD, TRANSAXLE FAN LH (BLACK)

$

$

Currently unavailable

8

Ariens 06200305

BLT, RHSSN.25-20X.500 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

$34.99

$

In Stock, Qty 20+

0
