991323 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX, Rear-Discharge (SN: A0397256 & Above) Anti-Scalp Wheels - 60" - RD Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX, Rear-Discharge

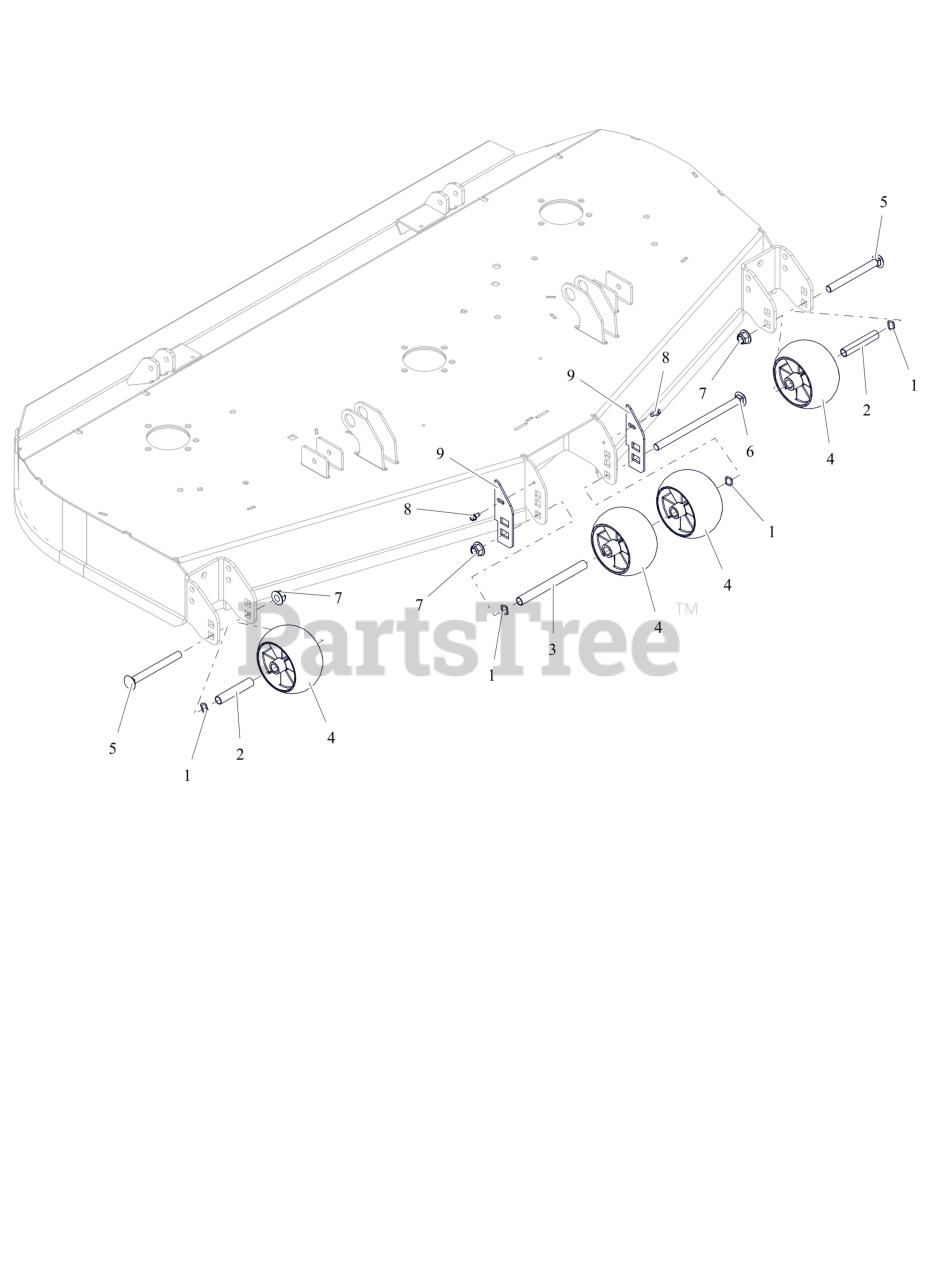

Anti-Scalp Wheels - 60" - RD Parts Diagram

  • Title
1

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

2

Ariens 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

3

Ariens 00473800

SPACER, .510X.625X6.50

$21.99

$

In Stock, Qty 20+

0

4

Ariens 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

5

Ariens 06200318

BLT, RHSN .50-13X5.00 G5 ZCC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 06200321

BLT, RHSN .50-13X8.50 G5 ZCC

$6.99

$

In Stock, Qty 20+

0

7

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 547275300

PLATE, ANTI SCALP WHEEL 60"

$

$

Currently unavailable
