991322 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge (SN: A0397256 & Above) Heat Shield - 60" Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge

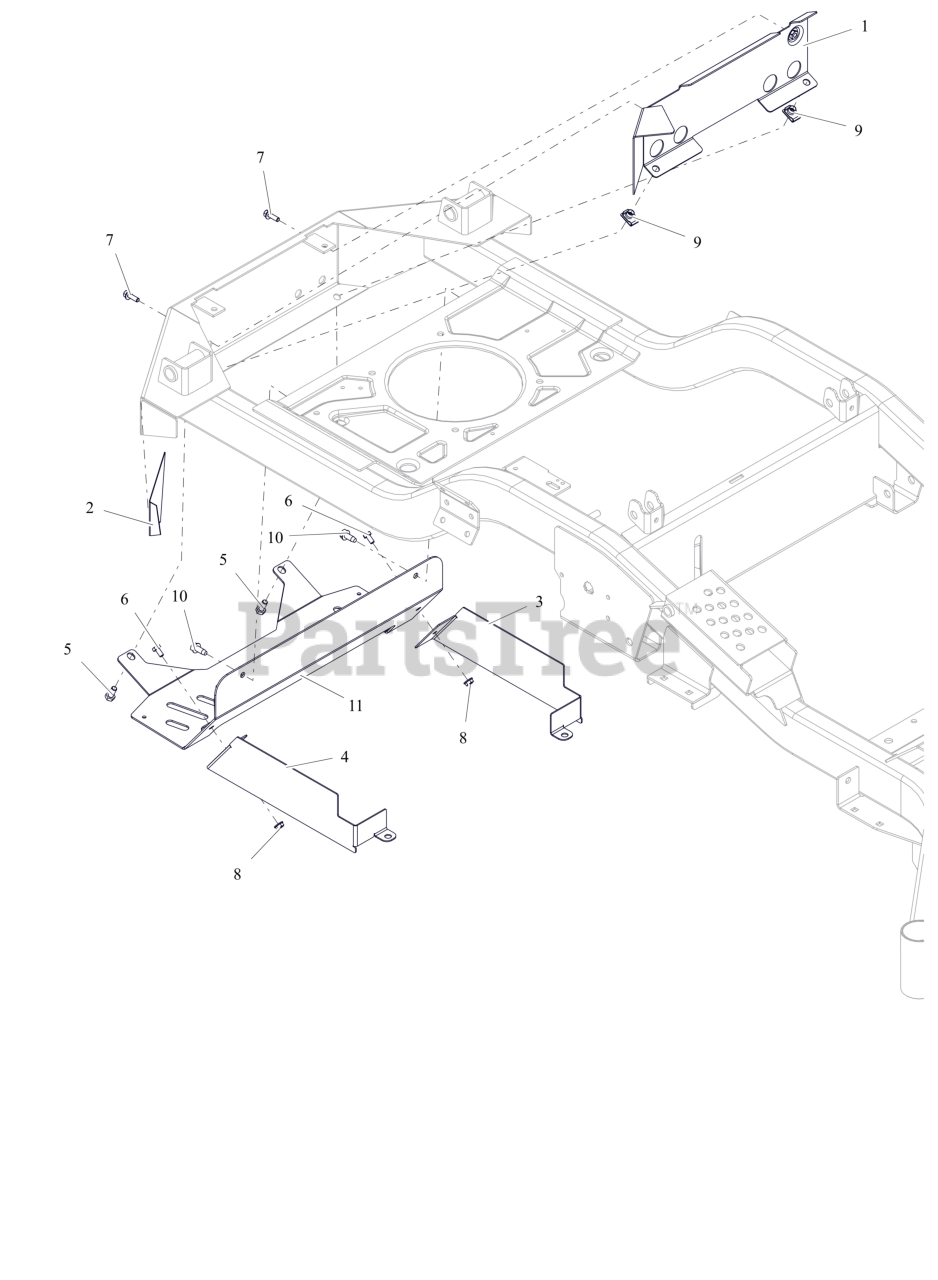

Heat Shield - 60" Parts Diagram

  • Title
1

Ariens 05116751

WMT, HEAT BAFFLE

$31.99

$

Usually ships in 4-12 days

0

2

Ariens 05116800

TAPE, HEAT DEFLECTOR

$17.99

$

Usually ships in 4-12 days

0

3

Ariens 05140751

GUARD,REAR CLUTCH LH

$34.99

$

Usually ships in 4-12 days

0

4

Ariens 05140851

GUARD,REAR CLUTCH RH

$34.99

$

Usually ships in 4-12 days

0

5

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$

$

Not available

8

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

10

Ariens 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

11

Ariens 543517900

SHIELD, HEAT (HD) (BLACK)

$

$

Currently unavailable
