991320 - Ariens Zenith 52" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge (SN: A0398640 & Above) Fenders Parts Diagram

Zenith 52" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge

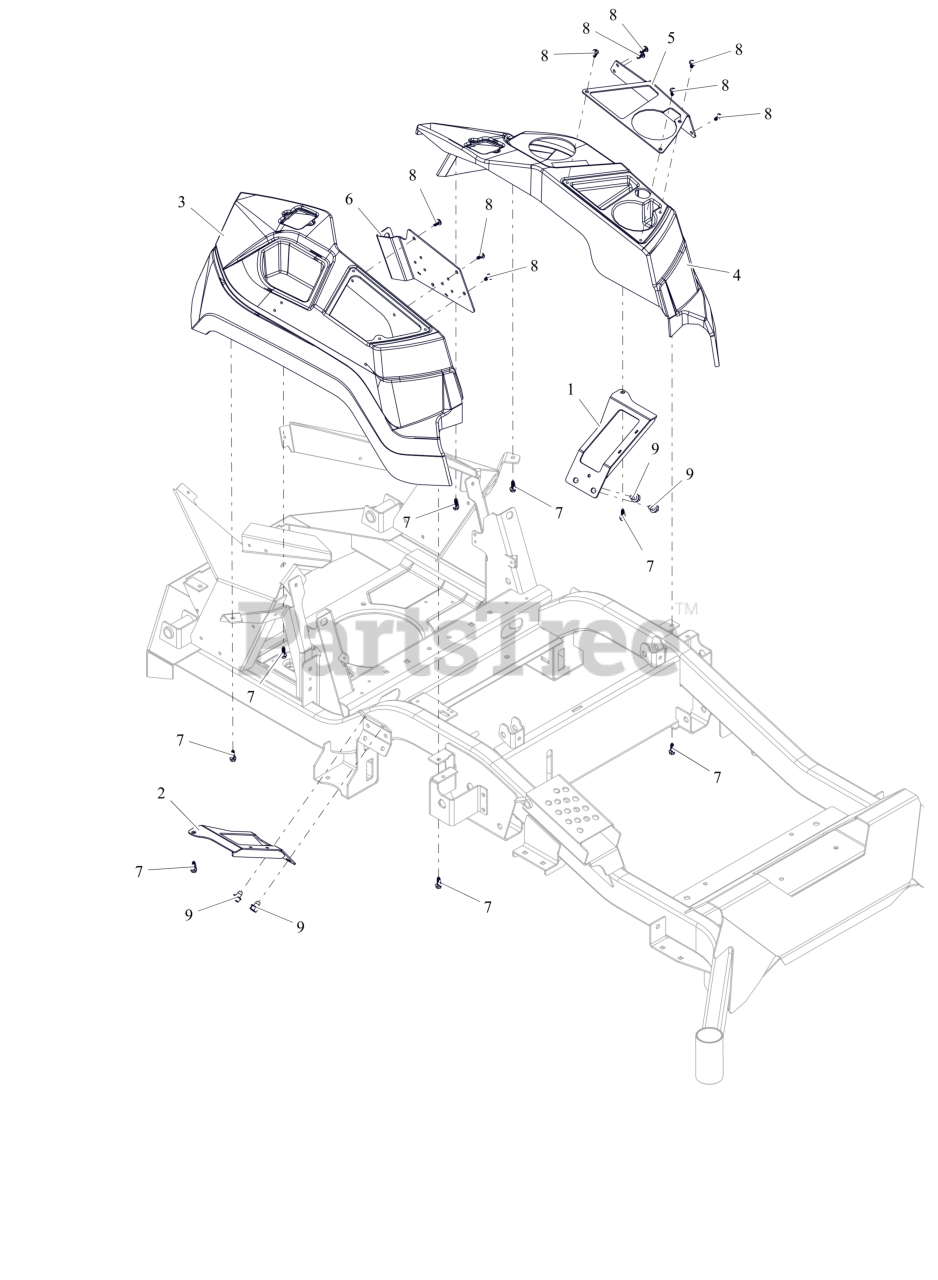

Fenders Parts Diagram

  • Title
1

Ariens 05095151

WLDMT, LH FENDER MOUNT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 05105151

WLDMT, RH FENDER MOUNT

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 05100400

FENDER, RH APEX - 2017

$58.99

$

Usually ships in 4-12 days

0

4

Ariens 59113800

FENDER, LH APEX

$77.99

$

In Stock, only 2 left!

0

5

Ariens 05108859

PLATE, APEX CUP HOLDER COVER

$25.99

$

Usually ships in 4-12 days

0

6

Ariens 05126951

BRKT, FENDER/RELAY MOUNTING

$

$

Not available

7

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.49

$

In Stock, Qty 6

0

8

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.49

$

In Stock, only 3 left!

0

9

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
