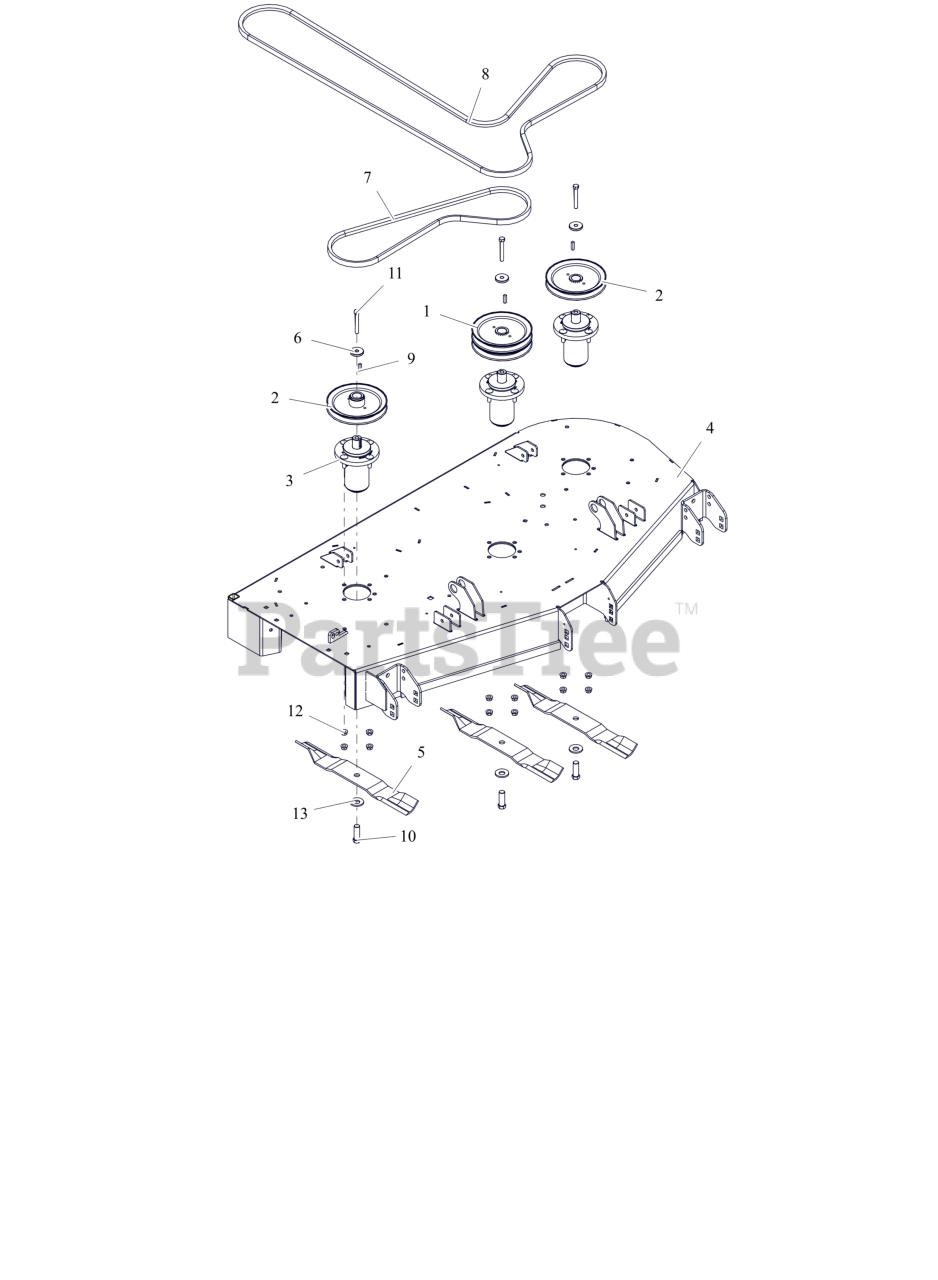

991320 - Ariens Zenith 52" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge (SN: A0398640 & Above) Deck, Belts, Blades, and Spindles - 52" - SD Parts Diagram

Zenith 52" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge

Deck, Belts, Blades, and Spindles - 52" - SD Parts Diagram

  • Title

1

Ariens 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

2

Ariens 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

3

Ariens 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

4

Ariens 32114059

WLDMT, 52 SIDE DISCH DECK CE (ORANGE)

$

$

Currently unavailable

5

Ariens 03253800

BLADE, 18"

$28.99

$

In Stock, Qty 20+

0

6

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Ariens 07200806

V-BELT, B-COGGED

$40.99

$

In Stock, only 1 left!

0

8

Ariens 07200816

V-BELT, HB SECTION

$119.99

$

In Stock, Qty 10

0

9

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

10

Ariens 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

11

Ariens 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 6

0
