991316 - Ariens Apex 48" Zero-Turn Mower, 23hp Kawasaki FR (SN: A0371200 & Above) Discharge Chute Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kawasaki FR

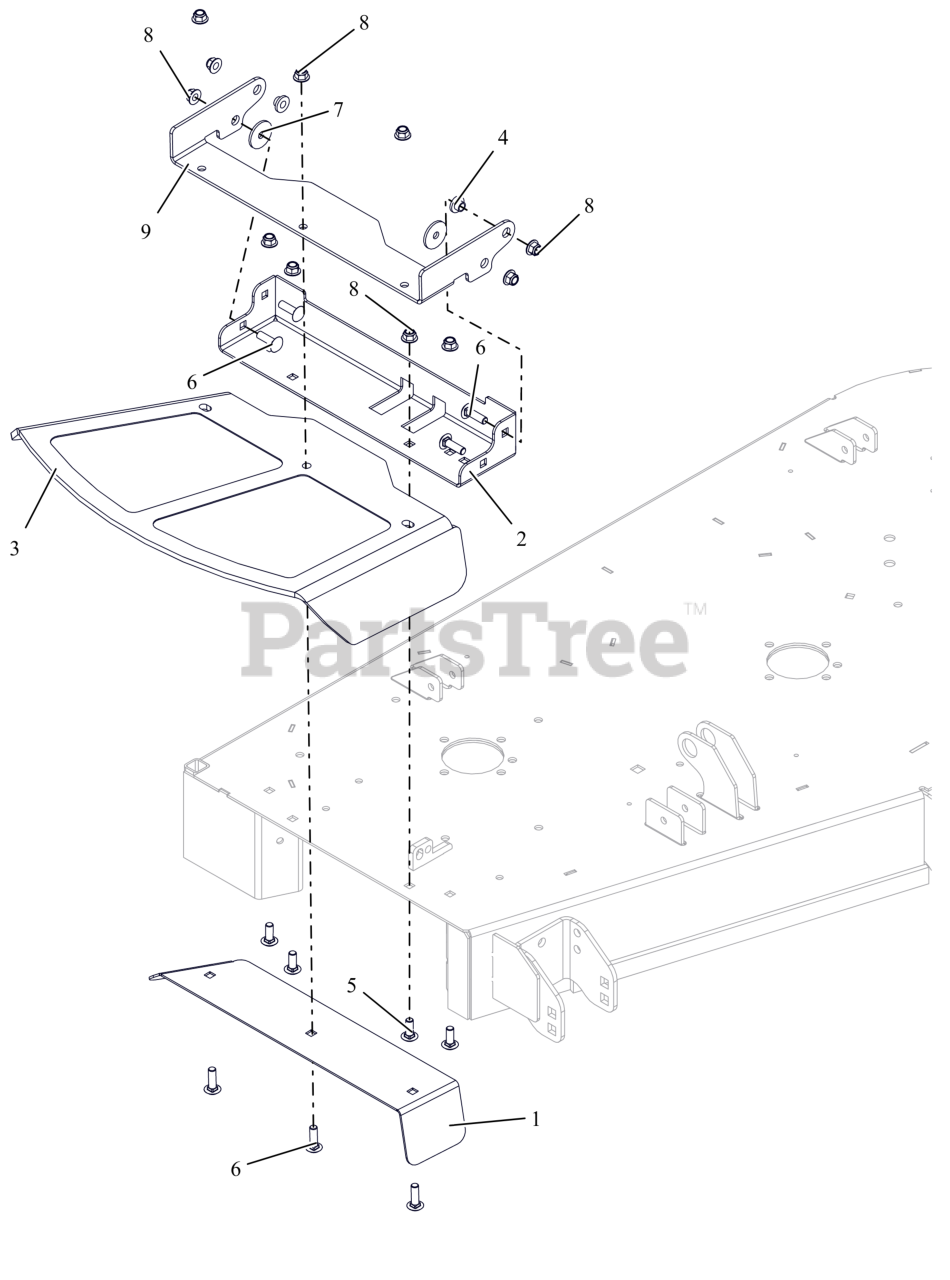

Discharge Chute Parts Diagram

  • Title
1

Ariens 05145959

PLT, DISCH. CHUTE CLMP-CE

$

$

Not available

2

Ariens 59112700

WMT, DISCH. CHUTE-CE-W/SAFETY

$

$

Not available

3

Ariens 05269900

CHUTE, FORMED RUBBER DISCHARGE

$68.99

$

In Stock, only 2 left!

0

4

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

5

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 10

0

8

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 549308059

BRKT, CE CHUTE MTG (ORANGE)

$

$

Currently unavailable
