991316 - Ariens Apex 48" Zero-Turn Mower, 23hp Kawasaki FR (SN: A0371200 & Above) Belt Guards - 48" Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kawasaki FR

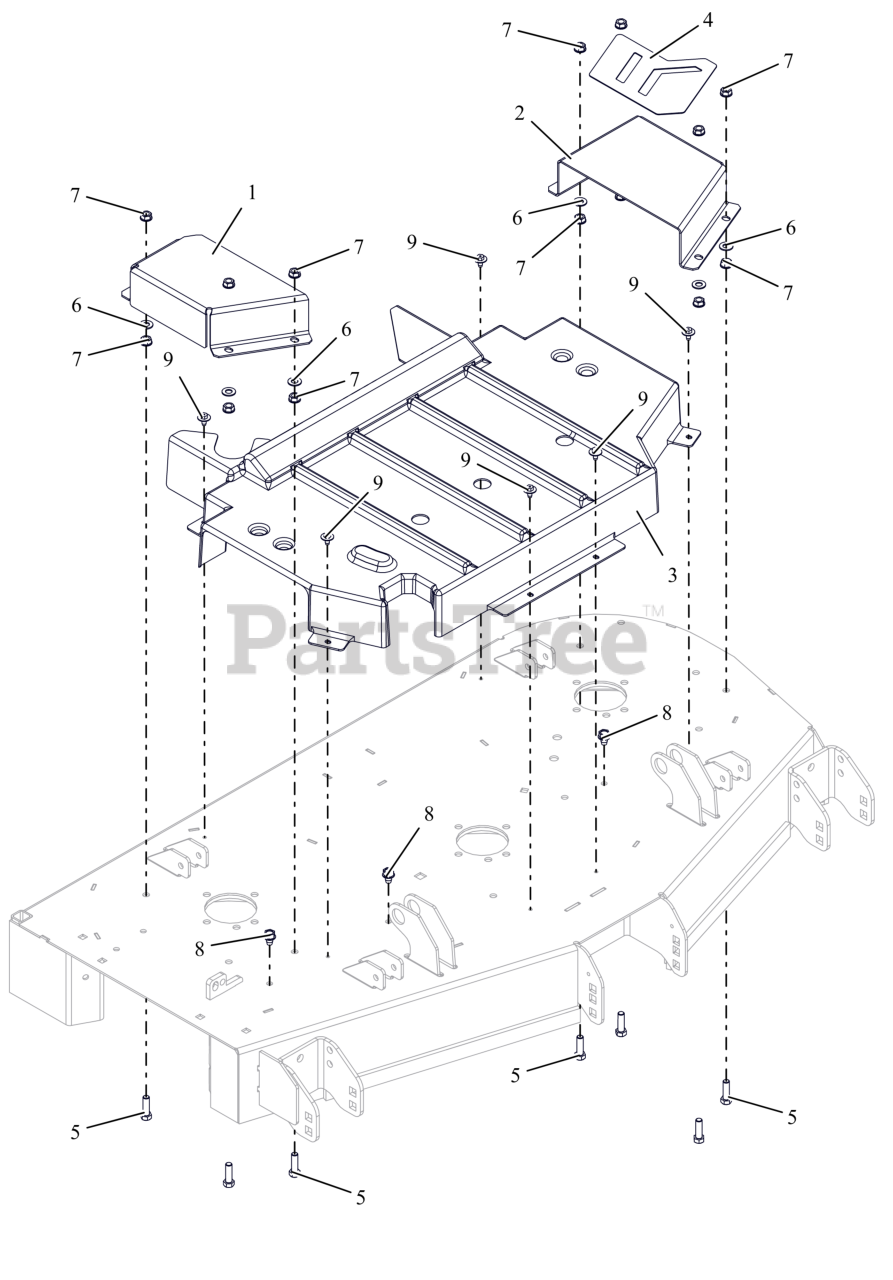

Belt Guards - 48" Parts Diagram

  • Title
1

Ariens 547272800

GUARD, BELT 48" RIGHT CE (ORANGE)

$

$

Currently unavailable

2

Ariens 547272900

GUARD, BELT 48" LEFT CE (ORANGE)

$

$

Currently unavailable

3

Ariens 05141600

GUARD, CENTER DECK SPINDLE CE

$

$

Not available

4

Ariens 05160000

GRIP TAPE 48 BELT COVER

$10.99

$

Usually ships in 4-12 days

0

5

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.49

$

In Stock, only 4 left!

0
