991315 - Ariens Apex 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: A0371200 & Above) Anti-Scalp Wheels and Baffles - 52" Parts Diagram

Apex 52" Zero-Turn Mower, 23hp Kawasaki FR

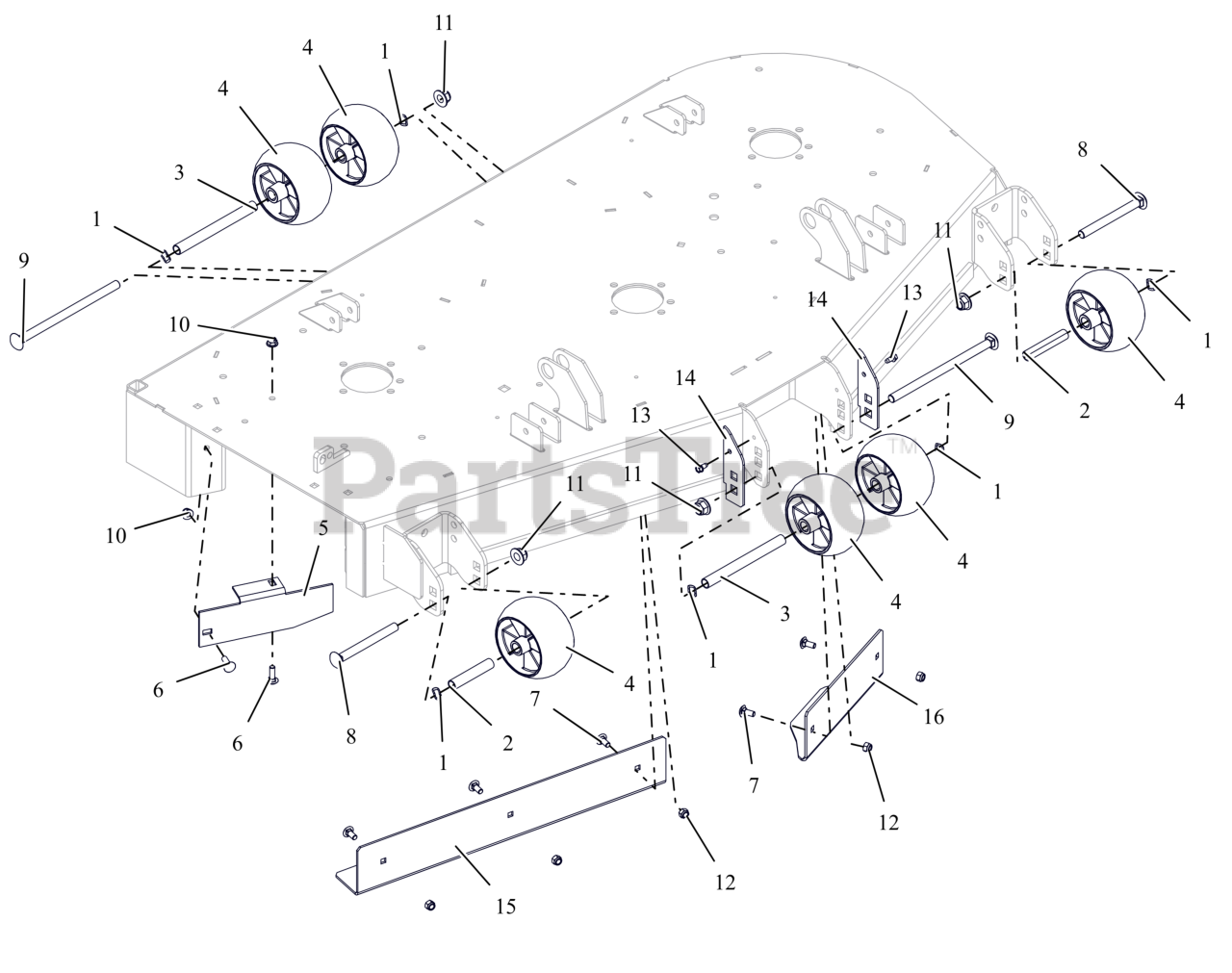

Anti-Scalp Wheels and Baffles - 52" Parts Diagram

  • Title

1

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

2

Ariens 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

3

Ariens 00473800

SPACER, .510X.625X6.50

$21.99

$

In Stock, Qty 20+

0

4

Ariens 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

5

Ariens 04389459

BAFFLE, DISCHARGE, 52"

$25.99

$

Usually ships in 4-12 days

0

6

Ariens 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06200318

BLT, RHSN .50-13X5.00 G5 ZCC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 06200321

BLT, RHSN .50-13X8.50 G5 ZCC

$6.99

$

In Stock, Qty 20+

0

10

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500820

NUT,NYL .31-18 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 547273059

PLATE, ANTI SCALP WHEEL PLATE CE (ORANGE)

$

$

Currently unavailable

15

Ariens 547273359

BAFFLE, 52" RH VACUUM (ORANGE)

$

$

Currently unavailable

16

Ariens 547273459

BAFFLE, 52" LH VACUUM

$

$

Currently unavailable
