991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Seat Parts Diagram

Zenith 60" Zero-Turn Mower, Kawasaki FX

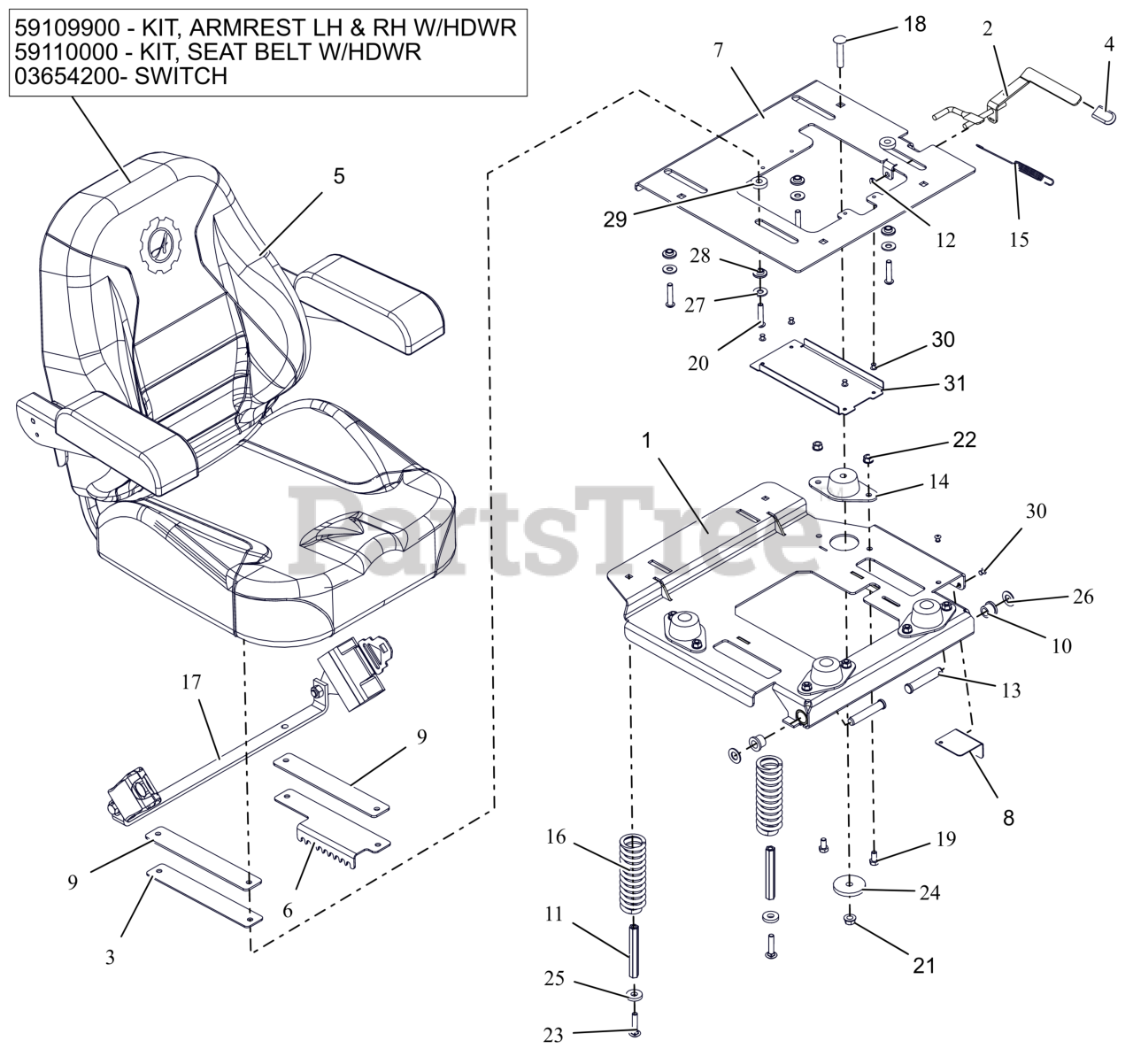

Seat Parts Diagram

  • Title

1

Ariens 05265451

WLDMT, ISO MTG PLATE (BLACK)

$142.99

$

Usually ships in 4-12 days

0

2

Ariens 05015251

WLDMT, SEAT SLIDE LEVER

$

$

Not available

3

Ariens 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$22.99

$

Usually ships in 4-12 days

0

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

5

Ariens 05124700

SEAT, APEX

$555.99

$

Usually ships in 4-12 days

0

5

Ariens 59109900

KIT, LH&RH ARM REST-05007300

Note: Component service Part

$185.99

$

In Stock, only 1 left!

0

5

Ariens 59110000

KIT-SEAT BELT REPLACE-05007300

Note: Component service Part

$140.99

$

Usually ships in 4-12 days

0

5

Ariens 03654200

SWITCH- SEAT

Note: Component service Part

$

$

Not available

6

Ariens 05015151

PLATE, HD SEAT ADJUSTMENT

$17.99

$

Usually ships in 4-12 days

0

7

Ariens 05133559

PLATE, SEAT MOUNTING (ISO KIT) (ORANGE)

$62.99

$

Usually ships in 4-12 days

0

8

Ariens 05265551

GUARD, SEAT FAN (SH)(BLACK)

$20.99

$

Usually ships in 4-12 days

0

9

Ariens 05158051

SPACER, SEAT

$11.99

$

Usually ships in 4-12 days

0

10

Ariens 05500901

BSHG, FLG .516X.750X.625X.937

$5.99

$

In Stock, only 2 left!

0

11

Ariens 06500828

NUT, COUPLING 5/16X18 X 3.75

$12.99

$

In Stock, only 2 left!

0

12

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06800202

PIN-CLIC .50X2.70X2.31 -ZCC

$7.99

$

Usually ships in 4-12 days

0

14

Ariens 07500237

MOUNT, FAIL-SAFE COMPRESSION

$34.99

$

Usually ships in 4-12 days

0

15

Ariens 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 20+

0

16

Ariens 08300704

SPRING, COMPRESSION SEAT 224LB

$

$

Not available

17

Ariens 59110000

KIT-SEAT BELT REPLACE-05007300

$140.99

$

Usually ships in 4-12 days

0

18

Ariens 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

19

Ariens 05901832

BLT, HEX .31-18X.625 G5 ZCC

$

$

Not available

20

Ariens 05901727

BLT,SHCS-BTN .31-18X1.50 ZCC

$3.99

$

In Stock, only 2 left!

0

21

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

24

Ariens 06401212

WSHR-FL-STL 0.406X2X0.25 ZCC

$4.99

$

Usually ships in 4-12 days

0

25

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

26

Ariens 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

28

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06401125

WSHR, FLT .390X1.00X.250 ZCC

$2.99

$

In Stock, only 2 left!

0

30

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available

31

Ariens 05250151

PLATE, SEAT GUARD (BLACK)

$

$

Not available
