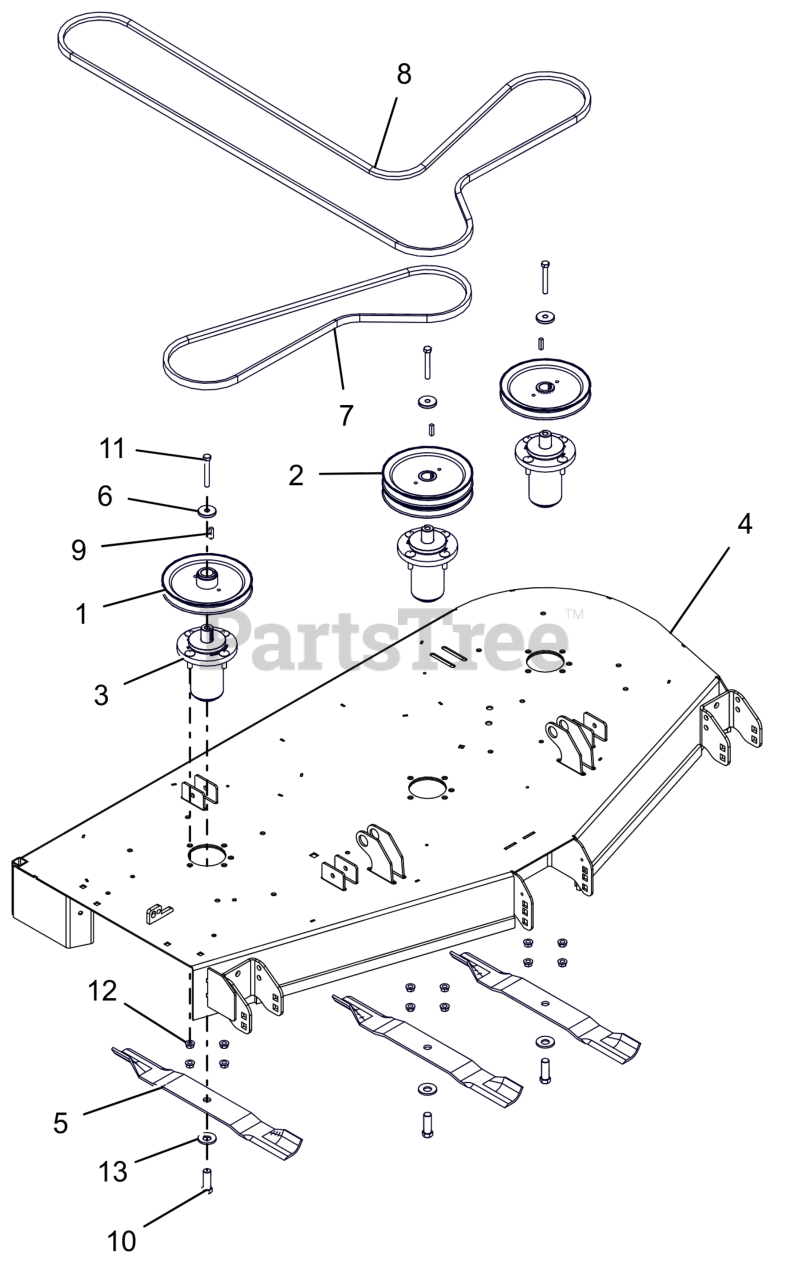

991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Deck, Belts, Blades and Spindles Parts Diagram

Zenith 60" Zero-Turn Mower, Kawasaki FX

Deck, Belts, Blades and Spindles Parts Diagram

  • Title

1

Ariens 07345967

PULLEY, V-7.50 OD X 1"ID
(Superseded to 07345900)

$70.99

$

In Stock, only 1 left!

0

2

Ariens 07346667

PULLEY, DOUBLE 1"X7.50"&7.50" (BLACK)
(Superseded to 07346600)

$91.99

$

In Stock, only 1 left!

0

3

Ariens 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

4

Ariens 59115400

WLDMT, 60" CE SIDE DISCH DECK (ORANGE)

$

$

Not available

5

Ariens 03253900

BLADE, 20.5"

$31.99

$

In Stock, Qty 20+

0

6

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Ariens 07200807

V-BELT, B-COGGED

$48.99

$

In Stock, only 1 left!

0

8

Ariens 07200817

V-BELT, HB SECTION

$126.99

$

In Stock, only 2 left!

0

9

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

10

Ariens 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

11

Ariens 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 6

0
