991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 035000 - 039999) Rear Tires And Transaxles Parts Diagram

Zenith 60" Zero-Turn Mower, Kawasaki FX

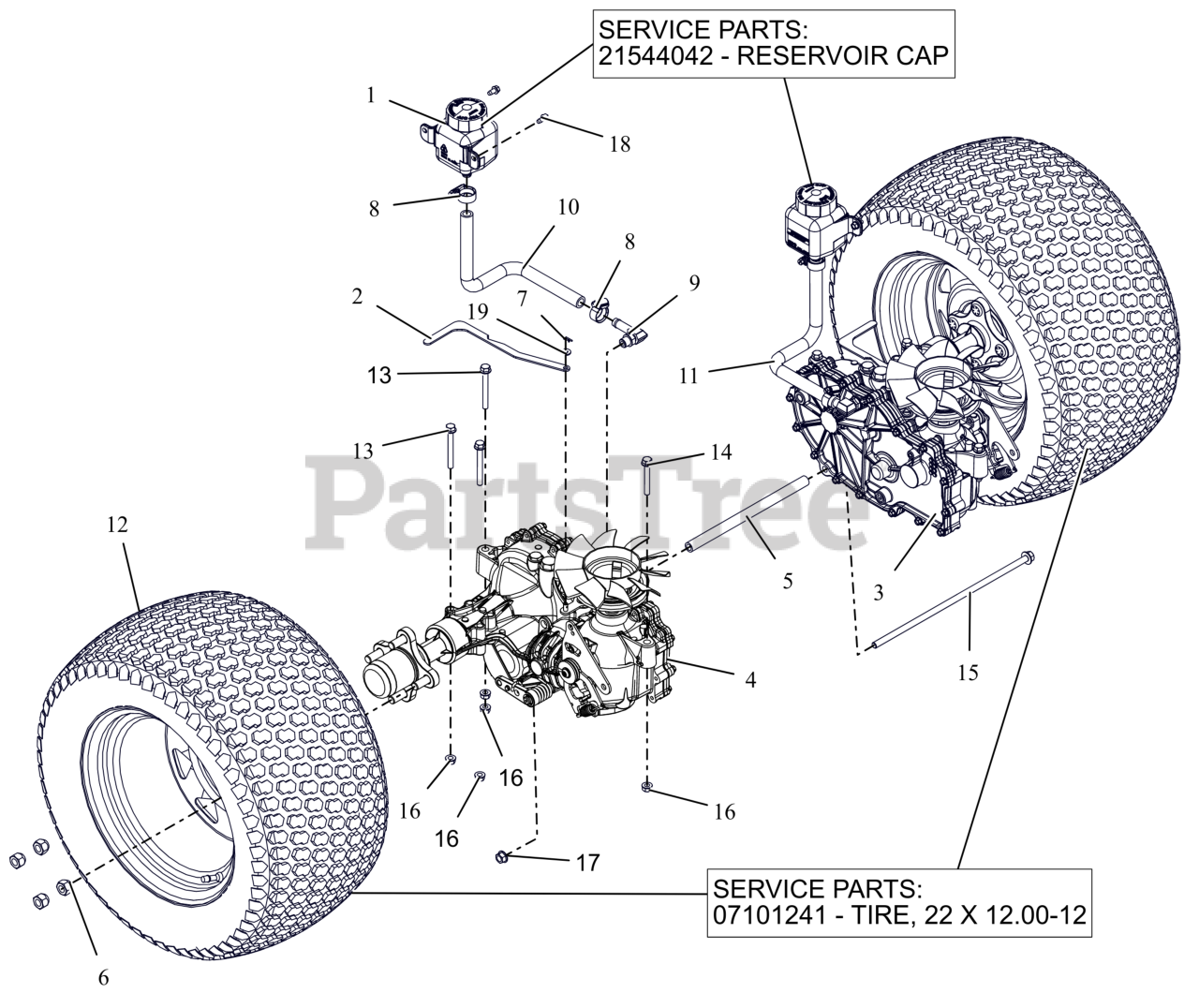

Rear Tires And Transaxles Parts Diagram

  • Title

1

Ariens 02970200

TANK, EXPANSION

$34.99

$

In Stock, only 1 left!

0

1

Ariens 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 05076751

BRKT, VALVE DUMP

$7.99

$

Usually ships in 4-12 days

0

3

Ariens 05189900

TRANSAXLE, ZT3200 LH
(Superseded to 09159300)

$1112.99

$

Usually ships in 4-12 days

0

4

Ariens 05190000

TRANSAXLE, RH ZT3200
(Superseded to 09159400)

$1034.99

$

Usually ships in 4-12 days

0

5

Ariens 05196451

SPCR,TRANS. .406IDX.63ODX9.95L

$

$

Not available

6

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

9

Ariens 07001528

FITTING, HYD (90 DEG)

$

$

Not available

10

Ariens 07001803

HOSE, FORMED EXPANSION -HD RH

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 07001804

HOSE, FORMED EXPANSION -HD LH

$14.99

$

Usually ships in 4-12 days

0

12

Ariens 07101227

ASM, WHL/TIRE 22X12.00-12 K500

$262.99

$

In Stock, only 2 left!

0

12

Ariens 07101241

TIRE, 22X12.00-12

Note: SERVICE PART

$170.99

$

In Stock, only 2 left!

0

13

Ariens 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 05901903

BLT,HEX-FLG .38-16X13 G5 ZCC

$13.99

$

In Stock, only 1 left!

0

16

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
