991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 034999) Idlers And Sheaves Parts Diagram

Zenith 60" Zero-Turn Mower, Kawasaki FX

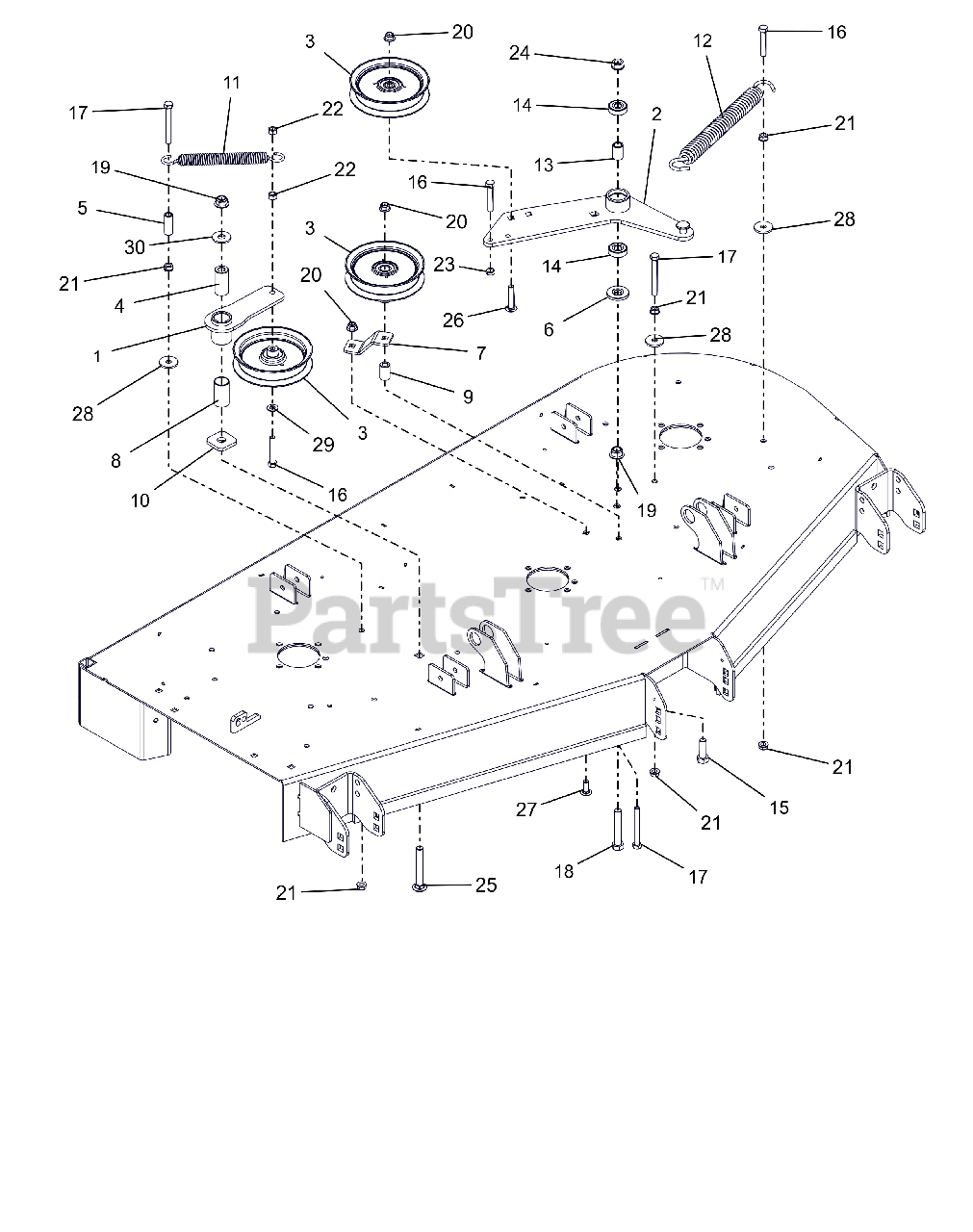

Idlers And Sheaves Parts Diagram

  • Title

1

Ariens 03774151

WMT, IDLER ARM - BLACK

$51.99

$

In Stock, only 1 left!

0

2

Ariens 04985651

DECK PTO IDLER ARM WLDMT - BLK
(Superseded to 04985600)

$77.99

$

In Stock, only 1 left!

0

3

Ariens 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$40.99

$

In Stock, Qty 5

0

4

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

5

Ariens 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

6

Ariens 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

7

Ariens 04981859

PTO FIXED IDLER MTG BRKT-ORG

$

$

Not available

8

Ariens 05501234

BSHG, 1.00X1.125X1.937

$10.99

$

In Stock, Qty 20+

0

9

Ariens 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

In Stock, Qty 19

0

10

Ariens 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, only 2 left!

0

11

Ariens 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

12

Ariens 08300708

SPRING, EXTENSION

$19.99

$

In Stock, Qty 20+

0

13

Ariens 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, Qty 7

0

14

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

15

Ariens 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

16

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

17

Ariens 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

18

Ariens 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

19

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06200317

BLT, RHSN .50-13X3.50 G5 ZCC

$5.99

$

In Stock, Qty 20+

0

26

Ariens 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

27

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

29

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.49

$

In Stock, only 1 left!

0
