991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 034999) Engine Guard Parts Diagram

Zenith 60" Zero-Turn Mower, Kawasaki FX

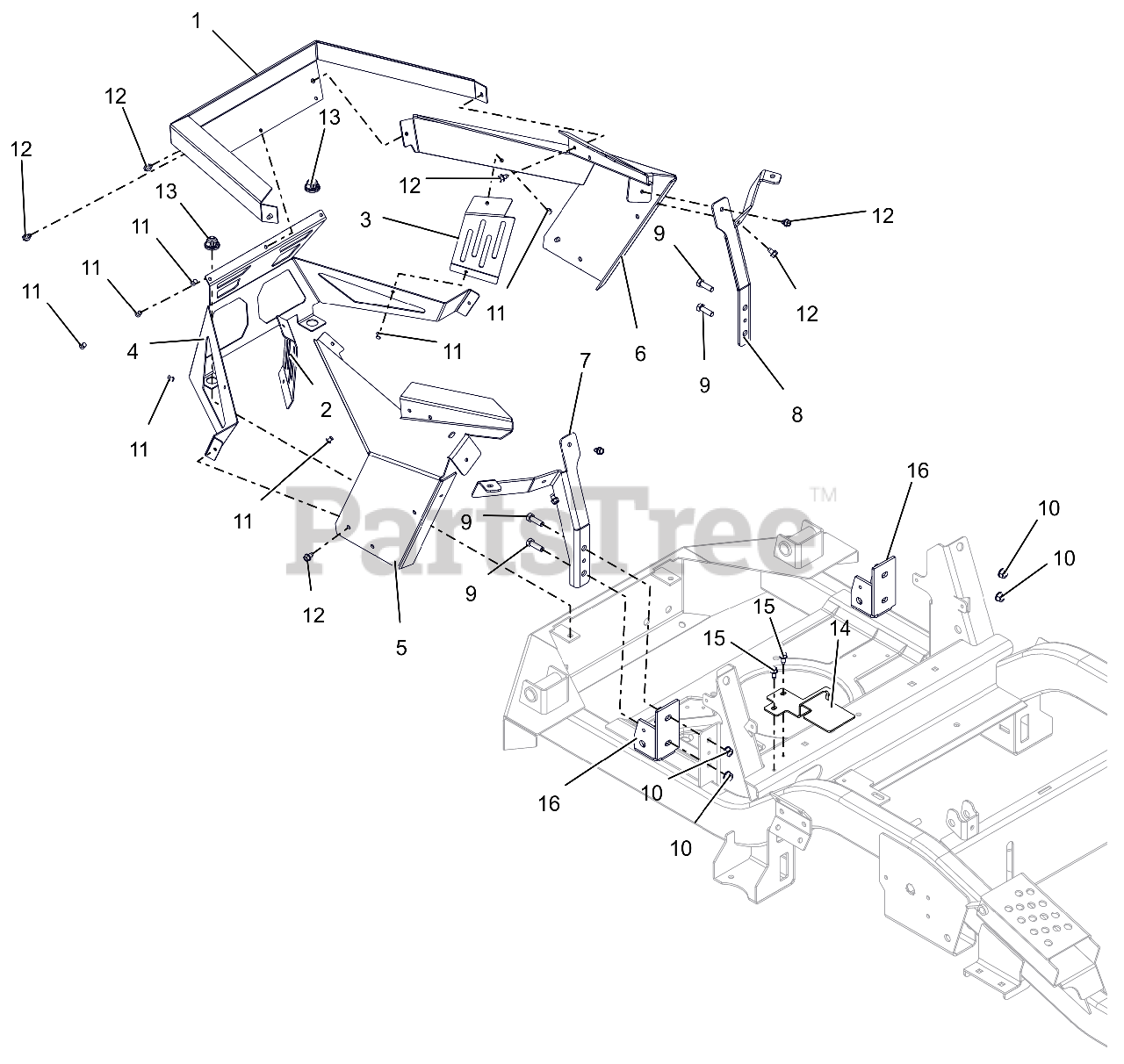

Engine Guard Parts Diagram

  • Title

1

Ariens 05103559

GUARD,ENGINE WRAP

$

$

Not available

2

Ariens 05140551

SHIELD,RH ENGINE GUARD VALVE

$

$

Not available

3

Ariens 05140651

SHIELD,LH ENGINE GUARD VALVE

$

$

Not available

4

Ariens 05196751

GUARD, ENGINE

$

$

Not available

5

Ariens 05196859

PANEL, RH REAR FENDER MOUNT

$47.99

$

Usually ships in 4-12 days

0

6

Ariens 05196959

PANEL, LH REAR FENDER MOUNT

$51.99

$

Usually ships in 4-12 days

0

7

Ariens 05244459

BRKT, RH FENDER MTG (ORANGE)

$54.99

$

Usually ships in 4-12 days

0

8

Ariens 05244559

BRKT, LH FENDER MOUNT (ORANGE)

$

$

Not available

9

Ariens 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.49

$

In Stock, Qty 6

0

10

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available

12

Ariens 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07500407

GROMMET, 10MM BOLLHOFF

$5.99

$

In Stock, only 1 left!

0

14

Ariens 05167751

GUARD, TRANSAXLE FAN RH (BLACK)

$

$

Currently unavailable

15

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05248051

BRKT, ROPS SUPPORT (BLACK)

$

$

Not available
