991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 034999) Deck Lift - LH Parts Diagram

Zenith 60" Zero-Turn Mower, Kawasaki FX

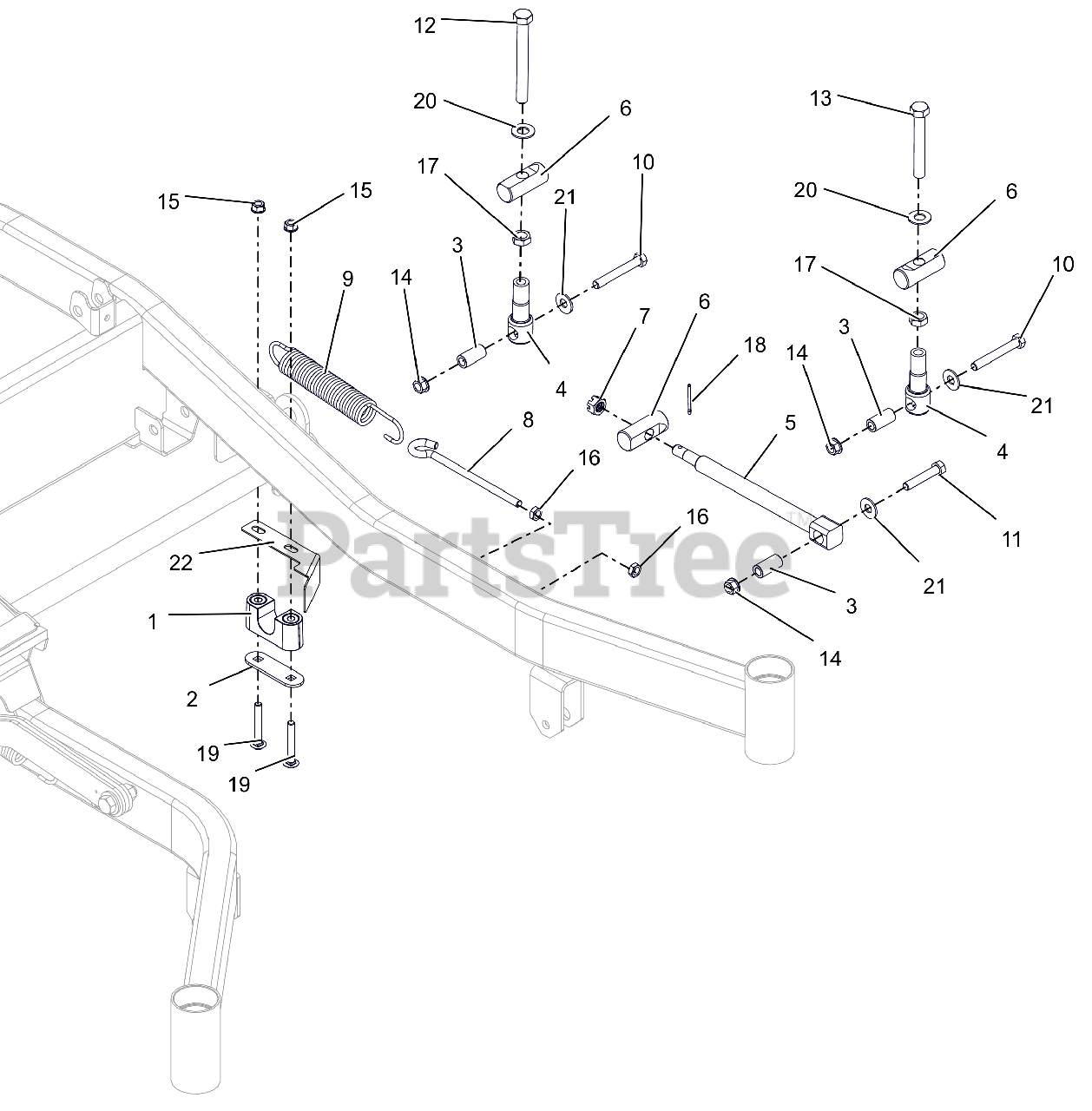

Deck Lift - LH Parts Diagram

  • Title

1

Ariens 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 1 left!

0

2

Ariens 04766551

PLATE, BEARING SUPPORT

$7.99

$

Usually ships in 4-12 days

0

3

Ariens 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

4

Ariens 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 10

0

5

Ariens 05126700

DRAG,LINK-HD

$18.99

$

In Stock, only 1 left!

0

6

Ariens 05149500

PIN, DECK LIFT

$15.99

$

In Stock, Qty 20+

0

7

Ariens 06505000

NUT-SL .50-13

$3.49

$

In Stock, Qty 20+

0

8

Ariens 07001814

BOLT,.38-16 X 5.25-.62 DIA EYE

$13.99

$

Usually ships in 4-12 days

0

9

Ariens 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

10

Ariens 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

12

Ariens 05901736

BLT, HEX .50-13X4.50F G8 ZCC

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 05901735

BLT, HEX .50-13X3.50F G5 ZCC

$5.99

$

In Stock, only 2 left!

0

14

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500911

NUT-JAM .500-13 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05251351

GUARD, STOP CE 60 (BLACK)

$

$

Currently unavailable
