991312 - Ariens Apex 52" Zero-Turn Mower, Kawasaki FR (SN: 015000 - 019999) Rear Tires And Transaxles - 52" Parts Diagram

Apex 52" Zero-Turn Mower, Kawasaki FR

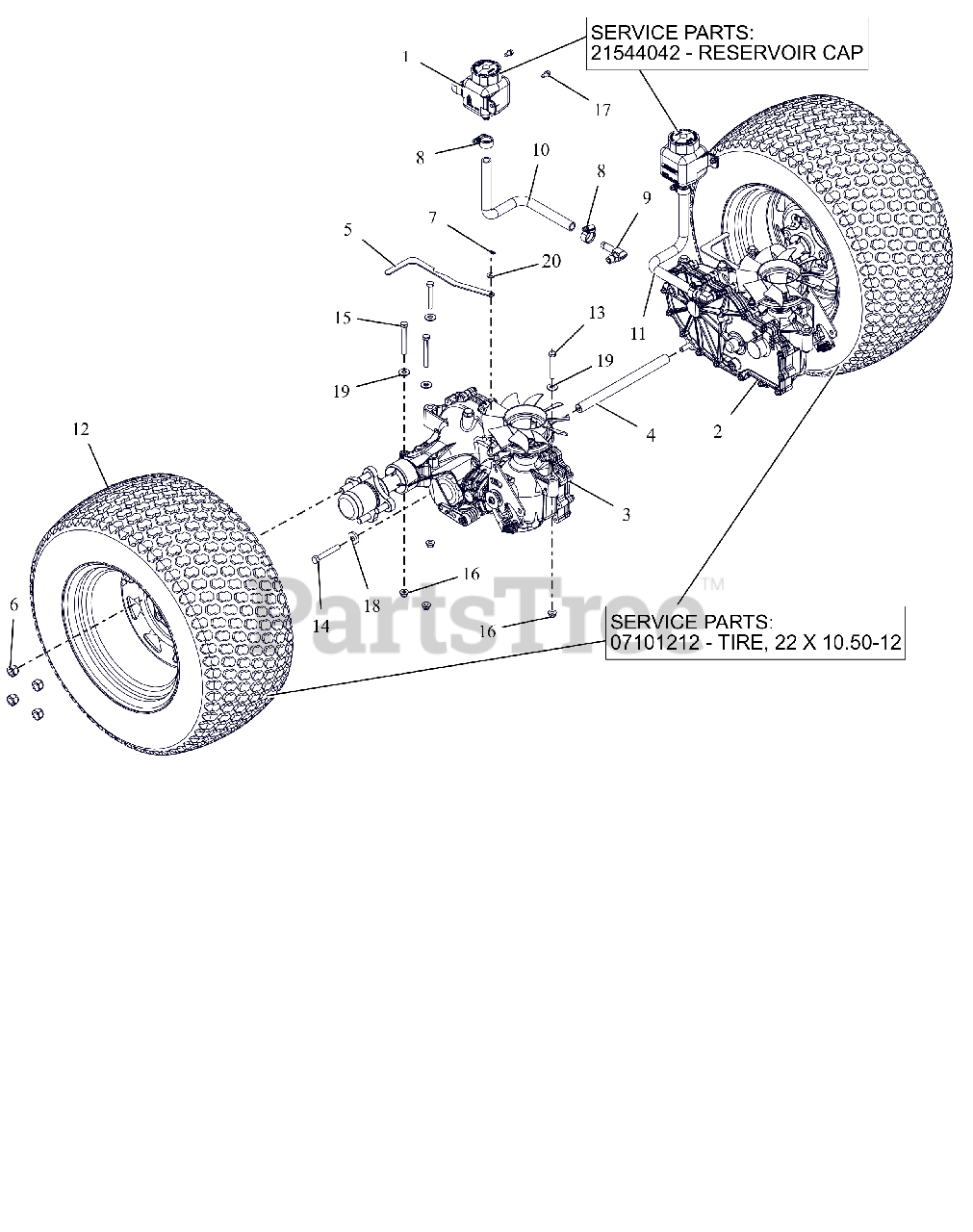

Rear Tires And Transaxles - 52" Parts Diagram

  • Title
1

Ariens 02970200

TANK, EXPANSION

$34.99

$

In Stock, only 2 left!

0

1

Ariens 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 05002900

TRANSAXLE, ZT3100 LH
(Superseded to 09158700)

$1568.99

$

Usually ships in 4-12 days

0

3

Ariens 05003000

TRANSAXLE, ZT3100 RH
(Superseded to 09158800)

$1564.99

$

Usually ships in 4-12 days

0

4

Ariens 05012900

SHAFT, TRANSAXLE SUPPORT

$29.99

$

Usually ships in 4-12 days

0

5

Ariens 05076751

BRKT, VALVE DUMP

$7.99

$

Usually ships in 4-12 days

0

6

Ariens 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

9

Ariens 07001528

FITTING, HYD (90 DEG)

$

$

Not available

10

Ariens 07001803

HOSE, FORMED EXPANSION -HD RH

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 07001804

HOSE, FORMED EXPANSION -HD LH

$14.99

$

Usually ships in 4-12 days

0

12

Ariens 07101211

ASM, WHL/TIRE 22X10.50-12 K500

$284.99

$

In Stock, only 1 left!

0

12

Ariens 07101212

TIRE, 22X10.50-12

Note: SERVICE PART

$159.99

$

Usually ships in 4-12 days

0

13

Ariens 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

15

Ariens 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.49

$

In Stock, only 2 left!

0

16

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
