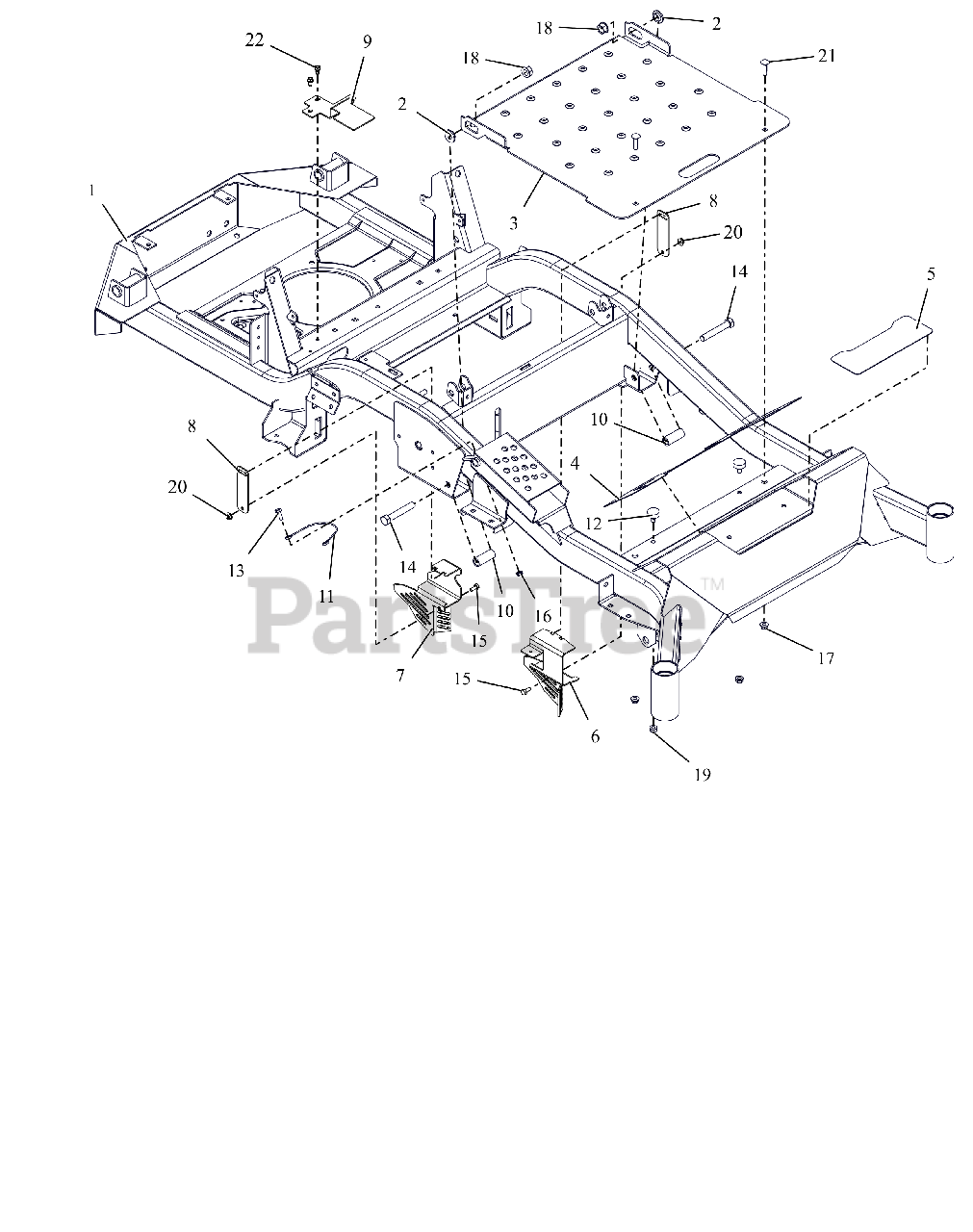

991312 - Ariens Apex 52" Zero-Turn Mower, Kawasaki FR (SN: 015000 - 019999) Frame Parts Diagram

Apex 52" Zero-Turn Mower, Kawasaki FR

Frame Parts Diagram

  • Title

1

Ariens 59111200

APEX,44-52 FRAME W/SAFETY DECA
(Superseded to 59117700)

$969.99

$

Usually ships in 4-12 days

0

2

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.49

$

In Stock, Qty 20+

0

3

Ariens 59113600

PANEL, ACCESS

$135.99

$

Usually ships in 4-12 days

0

4

Ariens 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

5

Ariens 05109100

GRIP, STEP

$

$

Not available

6

Ariens 05141151

GUARD, TRANSAXLE FAN-LH

$

$

Not available

7

Ariens 05141251

GUARD, TRANSAXLE FAN - RH

$31.99

$

Usually ships in 4-12 days

0

8

Ariens 05141351

BRKT,TRANSAXLE FAN GUARD

$

$

Not available

9

Ariens 05167751

GUARD, TRANSAXLE FAN RH (BLACK)

$

$

Currently unavailable

10

Ariens 05501319

SPACER, .515X.75X1.83

$4.99

$

Usually ships in 4-12 days

0

11

Ariens 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

12

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

13

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

15

Ariens 05901722

BLT, HEX .25-20X.625 G5 ZCC

$

$

Not available

16

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

17

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500835

NUT,FLG-TOP LK .625-11 FBP

$6.99

$

Usually ships in 4-12 days

0

19

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06200310

BLT, RHSSN.31-18X1.25 G5 ZCC

$1.49

$

In Stock, Qty 5

0

22

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
