991311 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: 040000 - 099999) Discharge Chute Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

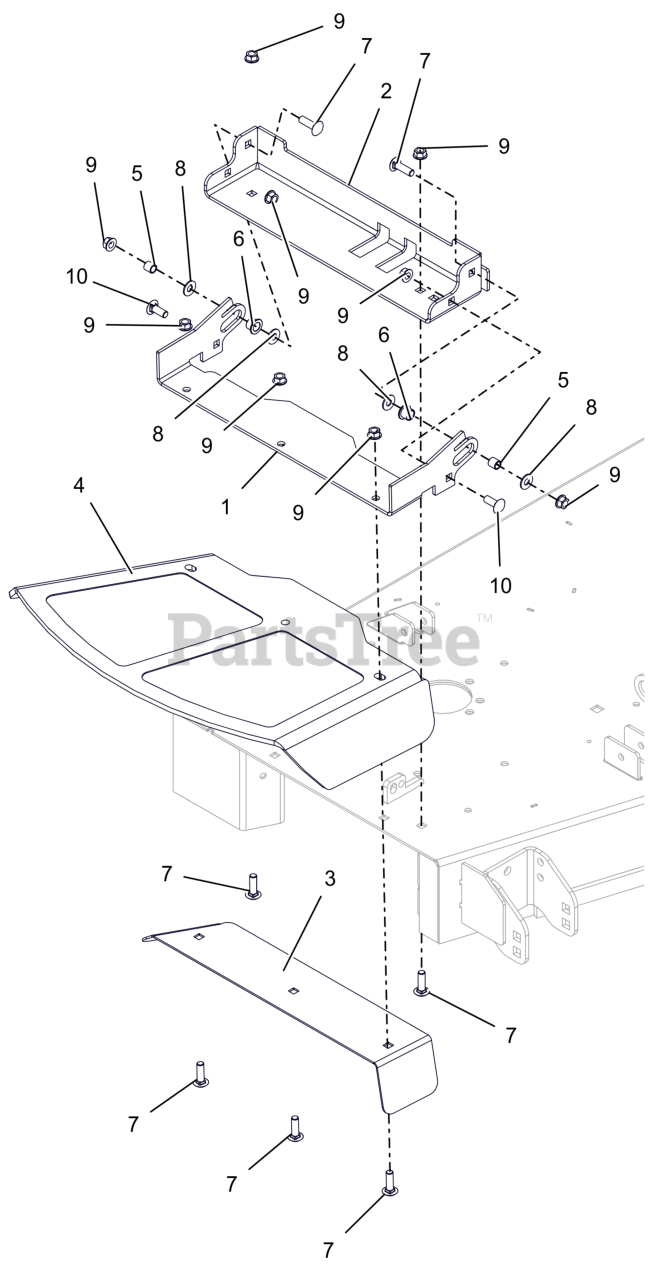

Discharge Chute Parts Diagram

  • Title
1

Ariens 05270059

BRKT, CHUTE MOUNT (ORANGE)

$53.99

$

Usually ships in 4-12 days

0

2

Ariens 59116000

BASE, DISCHARGE CHUTE MTG BRKT (ORANGE)

$120.99

$

Usually ships in 4-12 days

0

3

Ariens 05145959

PLT, DISCH. CHUTE CLMP-CE

$

$

Not available

4

Ariens 05269900

CHUTE, FORMED RUBBER DISCHARGE

$68.99

$

In Stock, only 2 left!

0

5

Ariens 05501407

SPCR, .385X.500X.350

$2.99

$

In Stock, only 3 left!

0

6

Ariens 05501409

BSHG, FLANGED .50X.625X.50X.062

$2.99

$

In Stock, only 3 left!

0

7

Ariens 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06401138

WSHR, HDND .375X.875X.064 ZCC

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0
