991311 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: 035000 - 039999) Seat Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

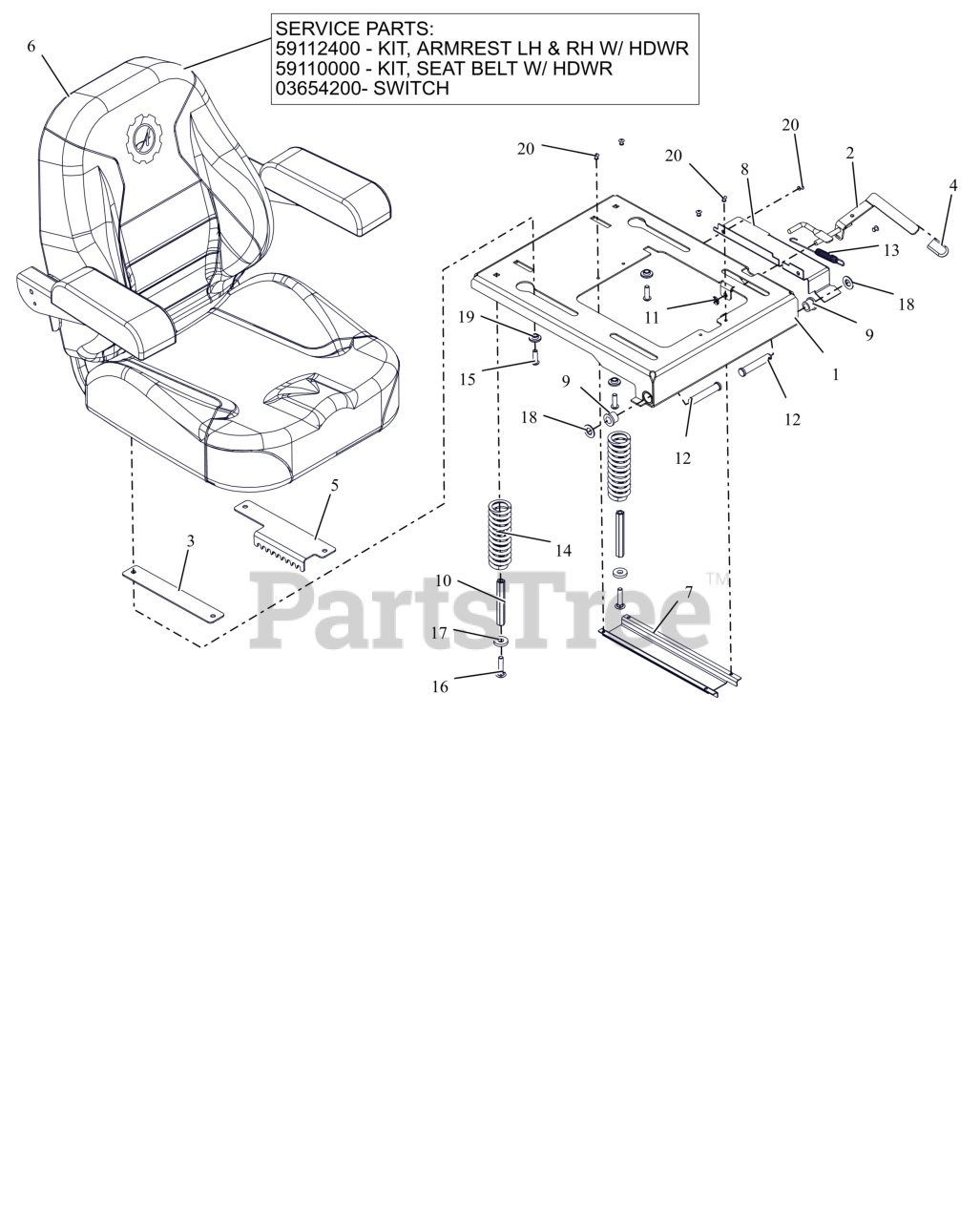

Seat Parts Diagram

  • Title

1

Ariens 04995659

WLDMT, SEAT PLATE HD

$102.99

$

Usually ships in 4-12 days

0

2

Ariens 05015251

WLDMT, SEAT SLIDE LEVER

$

$

Not available

3

Ariens 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$22.99

$

Usually ships in 4-12 days

0

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

5

Ariens 05015151

PLATE, HD SEAT ADJUSTMENT

$17.99

$

Usually ships in 4-12 days

0

6

Ariens 05124700

SEAT, APEX

$555.99

$

Usually ships in 4-12 days

0

6

Ariens 59112400

KIT-LH & RH ARM REST-05124700

Note: SERVICE PART

$232.99

$

In Stock, only 1 left!

0

6

Ariens 59110000

KIT-SEAT BELT REPLACE-05007300

Note: SERVICE PART

$140.99

$

Usually ships in 4-12 days

0

6

Ariens 03654200

SWITCH- SEAT

Note: SERVICE PART

$

$

Not available

7

Ariens 05140951

GUARD,SEAT SWITCH

$19.99

$

Usually ships in 4-12 days

0

8

Ariens 05151459

GUARD, SEAT PLATE CE

$40.99

$

Usually ships in 4-12 days

0

9

Ariens 05500901

BSHG, FLG .516X.750X.625X.937

$5.99

$

In Stock, only 2 left!

0

10

Ariens 06500828

NUT, COUPLING 5/16X18 X 3.75

$12.99

$

In Stock, only 2 left!

0

11

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06800202

PIN-CLIC .50X2.70X2.31 -ZCC

$7.99

$

Usually ships in 4-12 days

0

13

Ariens 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 20+

0

14

Ariens 08300704

SPRING, COMPRESSION SEAT 224LB

$

$

Not available

15

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.49

$

In Stock, Qty 20+

0

16

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

17

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

18

Ariens 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available
