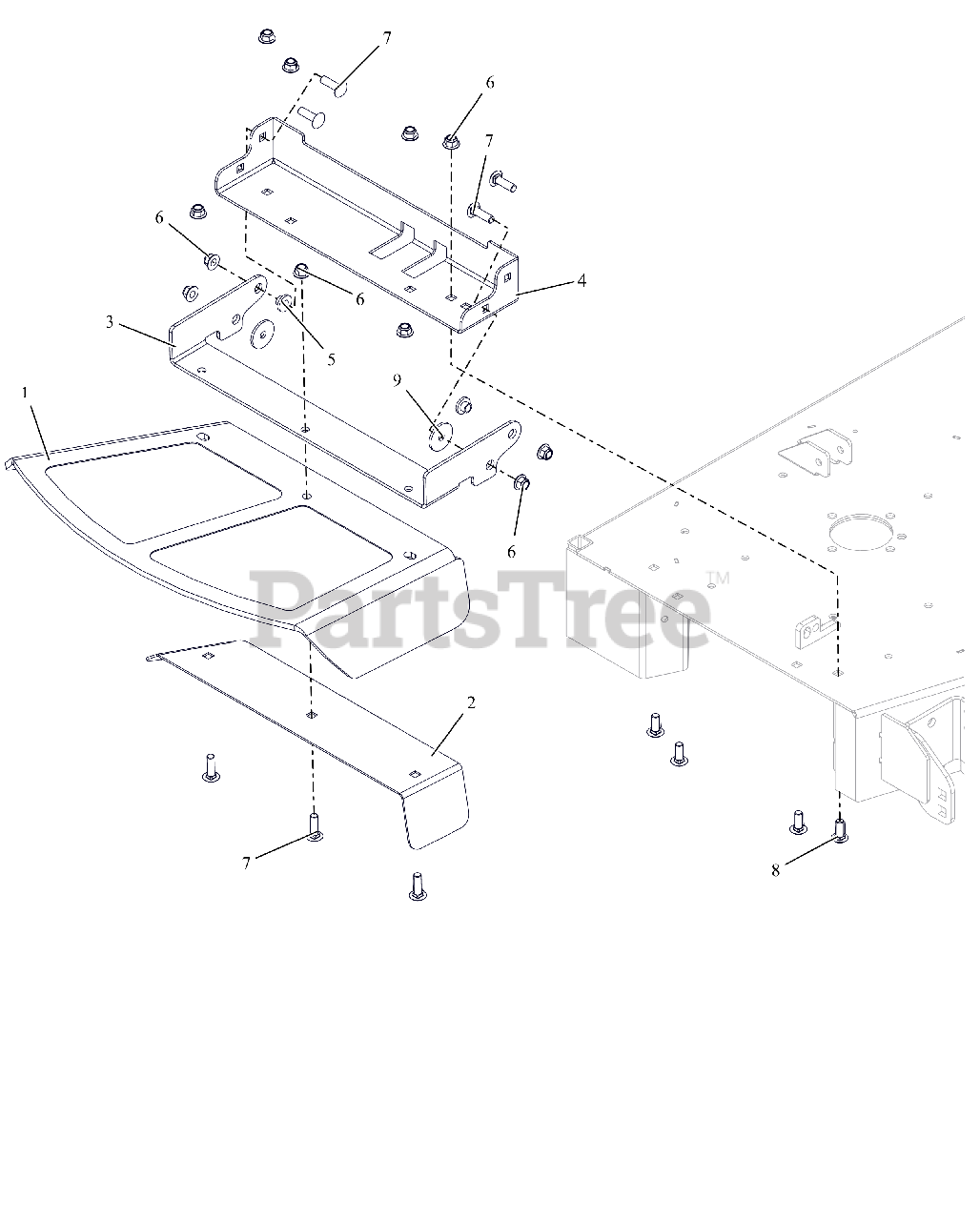

991311 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: 020000 - 024999) Discharge Chute Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

Discharge Chute Parts Diagram

  • Title
1

Ariens 04881200

CHUTE,48-60" FRMD RUBBER DISCH

$75.99

$

In Stock, Qty 9

0

2

Ariens 05145959

PLT, DISCH. CHUTE CLMP-CE

$

$

Not available

3

Ariens 05146159

BRKT, CE CHUTE MTG

$

$

Not available

4

Ariens 59112700

WMT, DISCH. CHUTE-CE-W/SAFETY

$

$

Not available

5

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 8

0
