991311 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: 015000 - 019999) Belt Guards - 48" Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

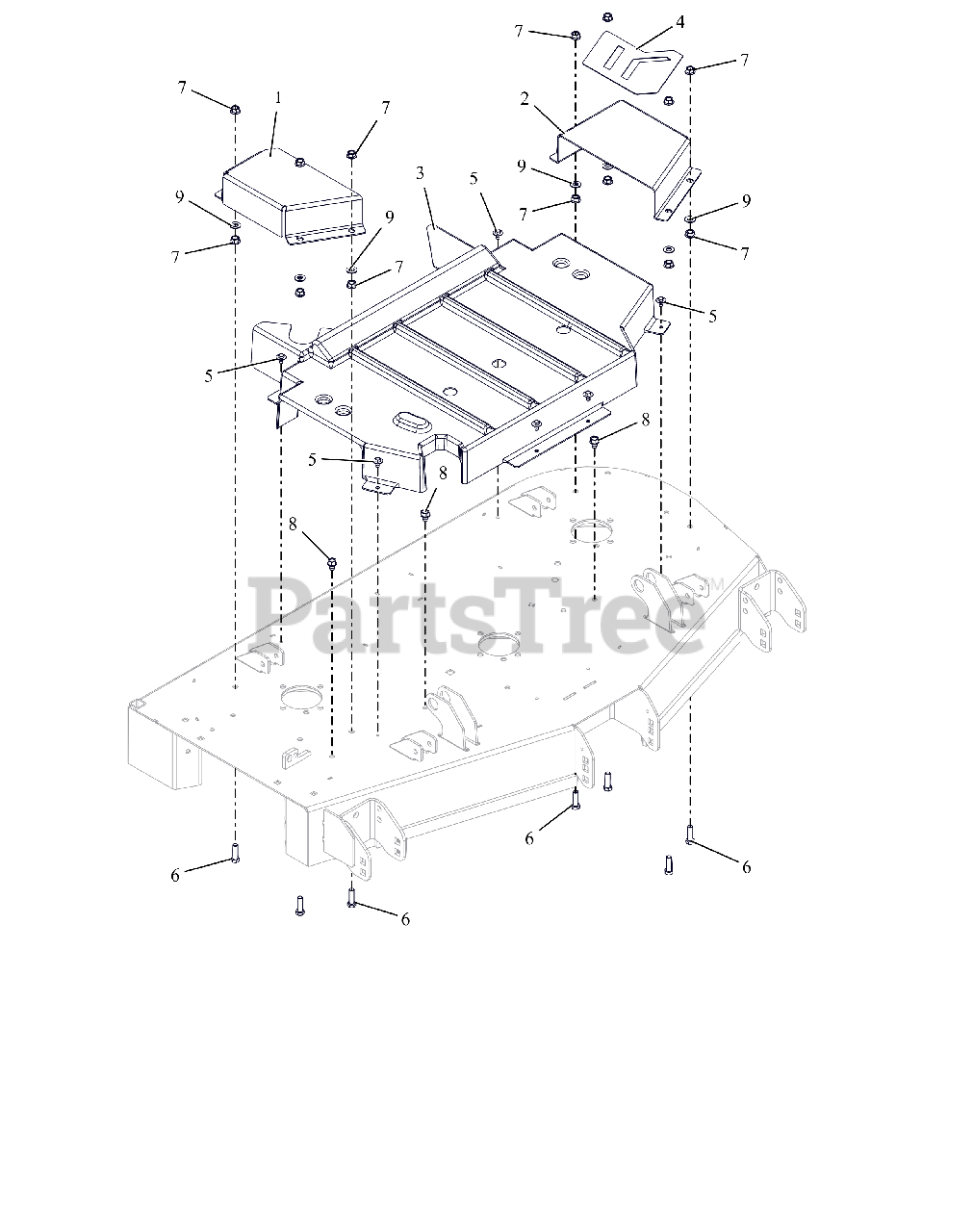

Belt Guards - 48" Parts Diagram

  • Title
1

Ariens 05141459

GUARD BELT, 48" RIGHT CE

$

$

Not available

2

Ariens 05141559

GUARD BELT 48" LEFT CE

$

$

Not available

3

Ariens 05141600

GUARD, CENTER DECK SPINDLE CE

$

$

Not available

4

Ariens 05160000

GRIP TAPE 48 BELT COVER

$10.99

$

Usually ships in 4-12 days

0

5

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

6

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
