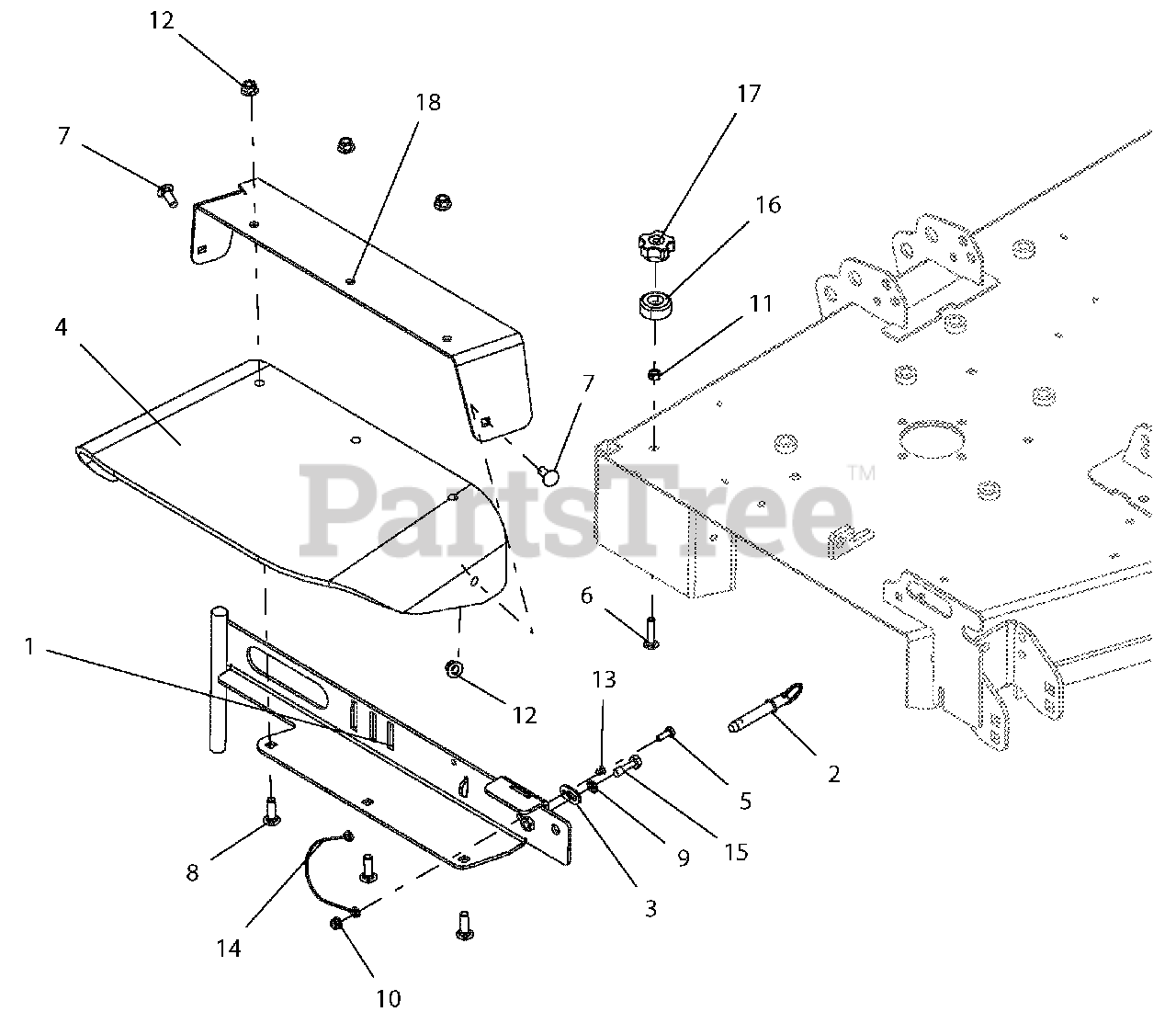

991308 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 030000 & Above) Chute - 60 Inch Deck Parts Diagram

Pro-Turn 60" Zero-Turn Mower

Chute - 60 Inch Deck Parts Diagram

  • Title

1

Gravely 04319400

WLDMT, 52" DISCHARGE CHUTE MTG-CE

$

$

Not available

2

Gravely 03957100

PIN, .50 X 2.00 USABLE LG BALL
(Superseded to 04822400)

$9.49

$

In Stock, only 2 left!

0

3

Gravely 04183000

KEEPER, BOLT

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, Qty 15

0

5

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

8

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

9

Gravely 06308700

LOCK, WSHR-EXT 0.391 X 0.628 X 0.036 YWZC

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

11

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06800028

RVT-POP .187x.250 (#64) YWZC
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, Qty 15

0

14

Gravely 06900317

LANYARD, 12"

$3.49

$

In Stock, only 2 left!

0

15

Gravely 07001634

BLT-HEX .38-16X1.25 GR5 CAP .37

$

$

Not available

16

Gravely 07500009

BUMPER, RECESSED 1.50 X .63 W/.31 HOLE

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 07534800

KNOB, CLAMPING

$3.49

$

In Stock, Qty 20+

0

18

Gravely 59104400

KIT, PT DISCH CHUTE SUPT W/SAFETY DECALS-RED

$

$

Not available
