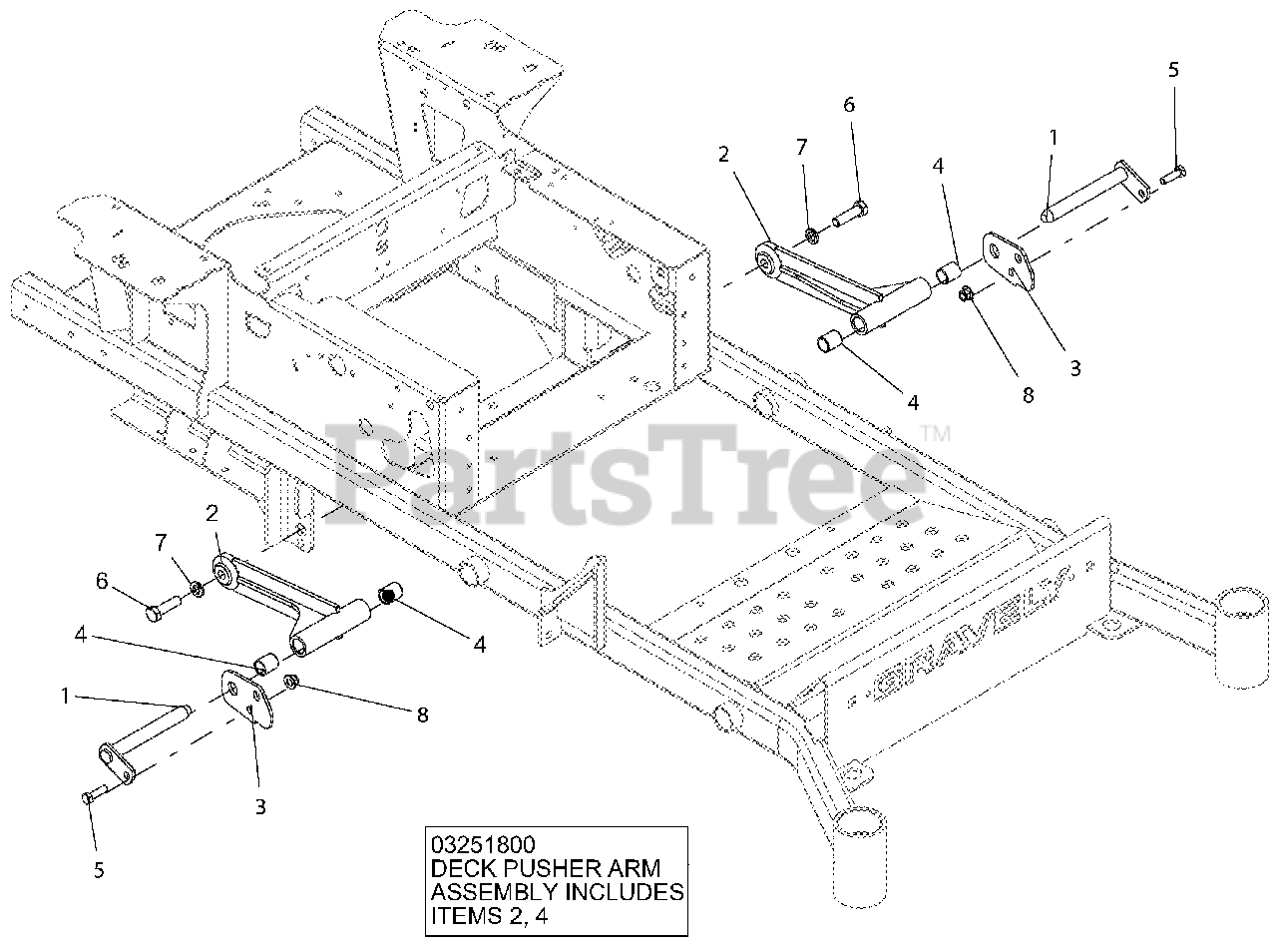

991307 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 030000 & Above) Deck Mount Parts Diagram

Pro-Turn 52" Zero-Turn Mower

Deck Mount Parts Diagram

  • Title
1

Gravely 09238900

WLDMT, MOWER MTG. PIN

$61.99

$

In Stock, only 1 left!

0

2

Gravely 02989151

DECK PUSHER ARM WLDMT - BLK

$108.99

$

Usually ships in 4-12 days

0

3

Gravely 04563553

PLATE, PT REAR CHAIN MTG DOUBLER-RED

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 05435900

BRG, .75 X .875 X 1.00

$5.99

$

In Stock, only 3 left!

0

5

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05901436

BLT-HEX .50-13X1.75 GR5 YWZC EP80
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

8

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
