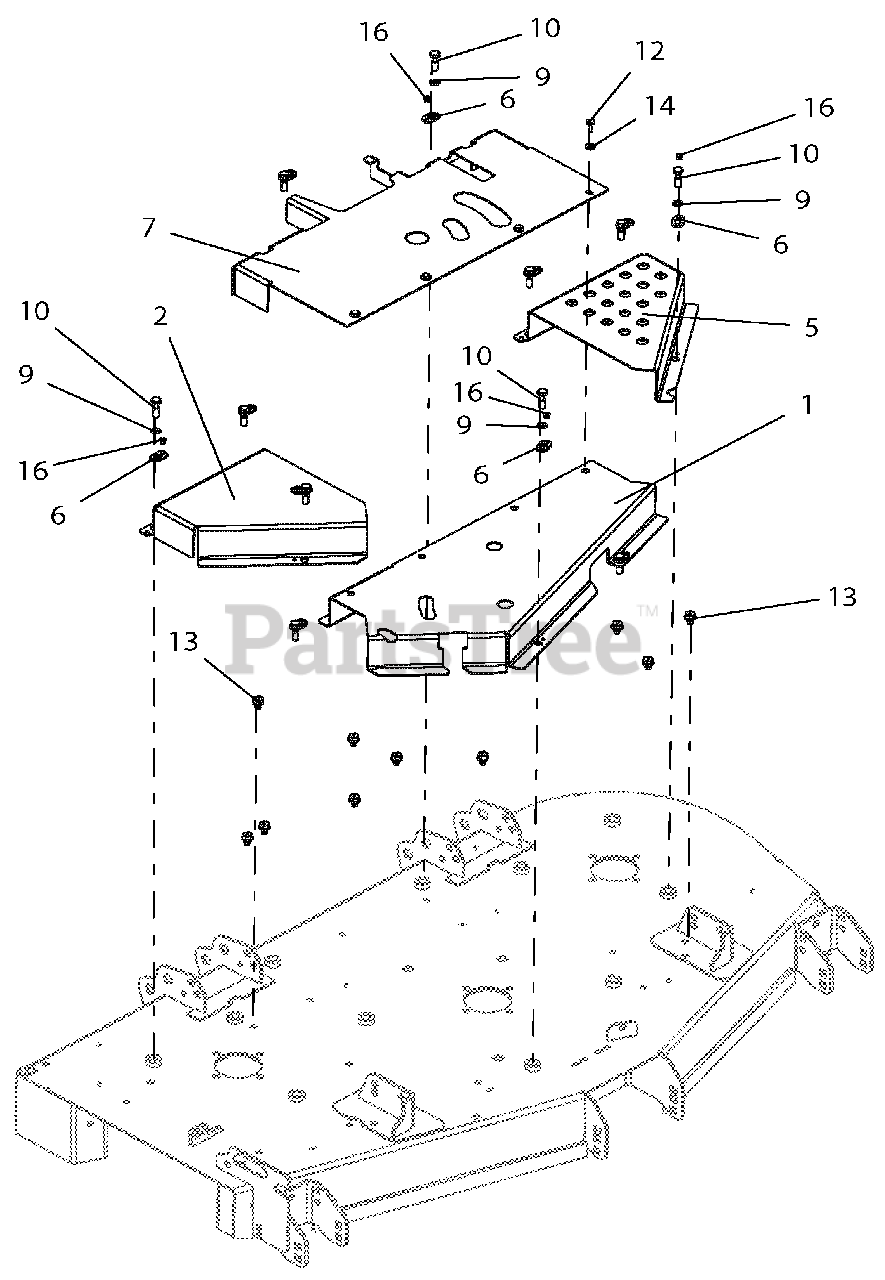

991307 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 030000 & Above) Belt Covers - 52 Inch Deck Parts Diagram

Pro-Turn 52" Zero-Turn Mower

Belt Covers - 52 Inch Deck Parts Diagram

  • Title
1

Gravely 04506100

WLDMT, FRONT BELT SHIELD

$

$

Not available

2

Gravely 04099951

GUARD, RH PT200 CE BELT (BLACK)

Note: (BLACK)

$

$

Not available

5

Gravely 04100051

GUARD, LH PT200 CE BELT (BLACK)

Note: (BLACK)

$

$

Not available

6

Gravely 04183000

KEEPER, BOLT

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 04739951

BRKT, REAR BELT GUARD CE-52 (BLACK)

Note: (BLACK)

$

$

Not available

9

Gravely 06308700

LOCK, WSHR-EXT 0.391 X 0.628 X 0.036 YWZC

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 07001625

BLT, HEX 0.38-16 X 1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

13

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06800028

RVT-POP .187x.250 (#64) YWZC
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, only 3 left!

0
